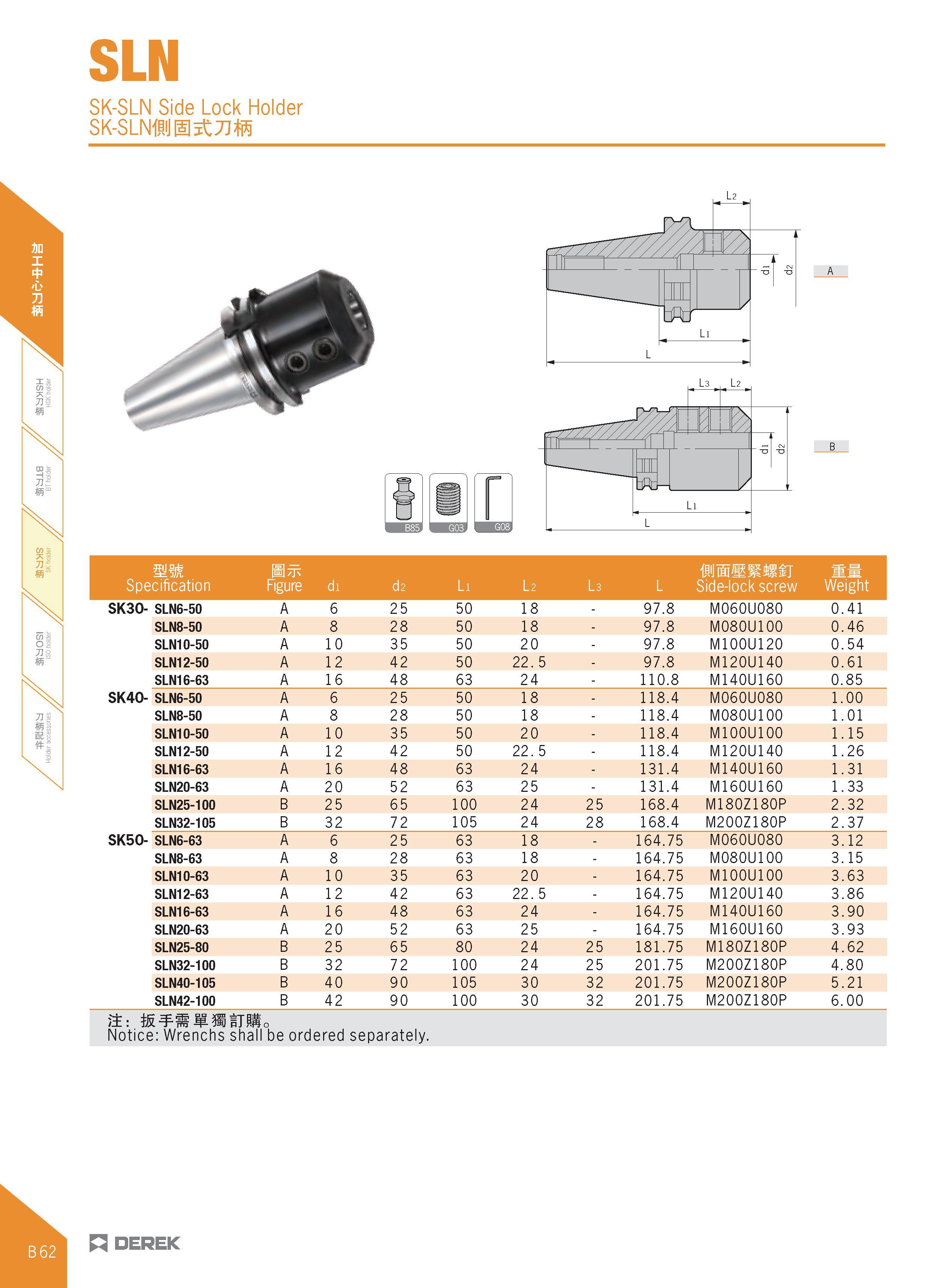

SLN SK-SLN Side Lock Holder SK-SLNffPJ m Specification Bttc Figure di d2 Li L2 L3 L '(PJMlIlti.lfJ Side-lock screw Weight SK30- SLN6-50 A 6 25 50 18 - 97.8 M060U080 0.41 SLN8-50 A 8 28 50 18 - 97.8 M080U100 0.46 SLN10-50 A 10 35 50 20 - 97.8 M100U120 0.54 SLN12-50 A 12 42 50 22. 5 - 97.8 M120U140 0.61 SLN16-63 A 16 48 63 24 - 110.8 M140U160 0.85 SK40- SLN6-50 A 6 25 50 18 - 118.4 M060U080 1.00 SLN8-50 A 8 28 50 18 - 118.4 M080U100 1.01 SLN10-50 A 10 35 50 20 - 118.4 M100U100 1.15 SLN12-50 A 12 42 50 22. 5 - 118.4 M120U140 1.26 SLN16-63 A 16 48 63 24 - 131.4 M140U160 1.31 SLN20-63 A 20 52 63 25 - 131.4 M160U160 1.33 SLN25-100 B 25 65 100 24 25 168.4 M180Z180P 2.32 SLN32-105 B 32 72 105 24 28 168.4 M200Z180P 2.37 SK50- SLN6-63 A 6 25 63 18 - 164.75 M060U080 3.12 SLN8-63 A 8 28 63 18 - 164.75 M080U100 3.15 SLN10-63 A 10 35 63 20 - 164.75 M100U100 3.63 SLN12-63 A 12 42 63 22. 5 - 164.75 M120U140 3.86 SLN16-63 A 16 48 63 24 - 164.75 M140U160 3.90 SLN20-63 A 20 52 63 25 - 164.75 M160U160 3.93 SLN25-80 B 25 65 80 24 25 181.75 M180Z180P 4.62 SLN32-100 B 32 72 100 24 25 201.75 M200Z180P 4.80 SLN40-105 B 40 90 105 30 32 201.75 M200Z180P 5.21 SLN42-100 B 42 90 100 30 32 201.75 M200Z180P 6.00 j±: Notice: Wrenchs shall be ordered separately. H DEREK
