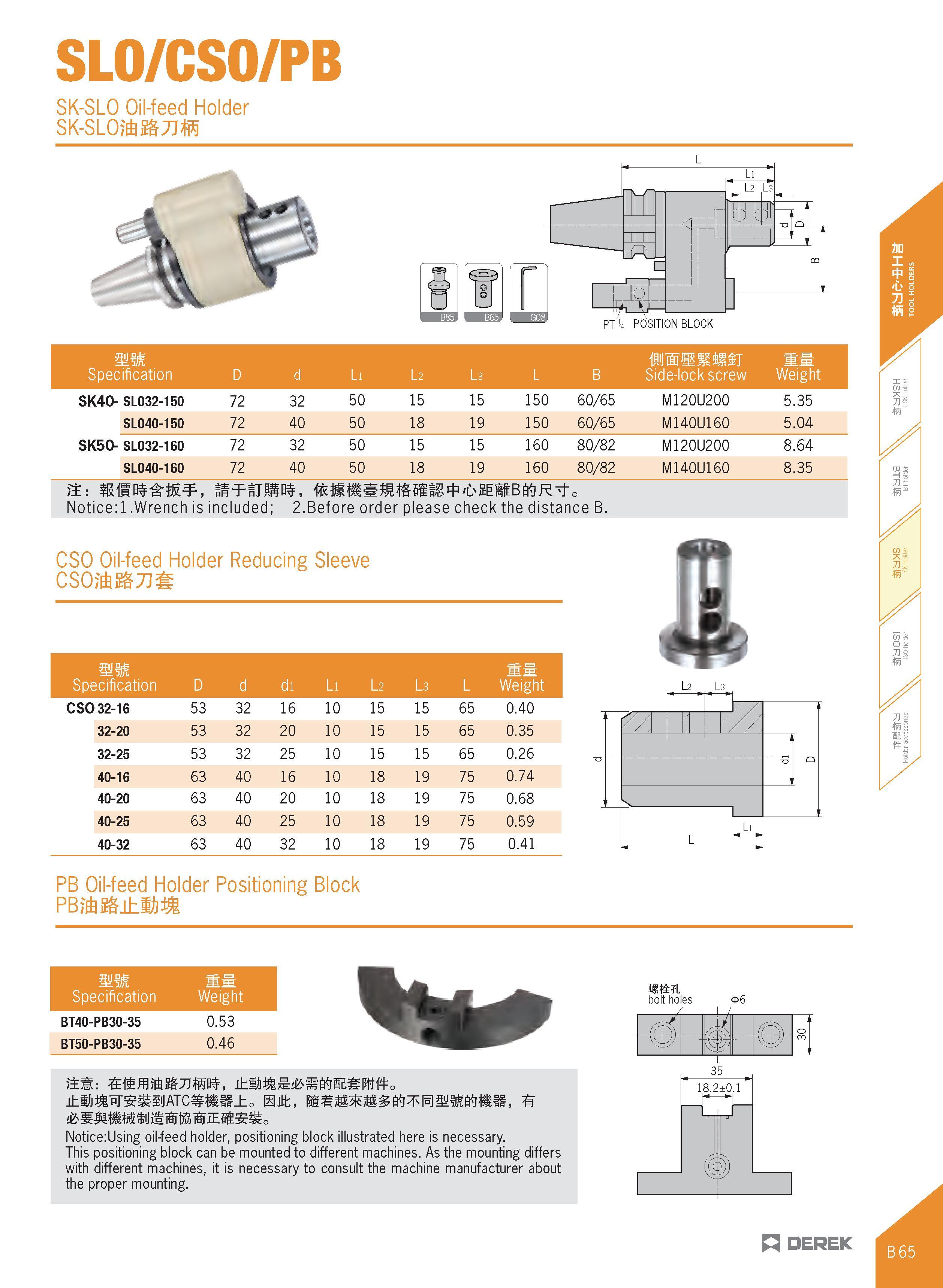

SLO/CSO/PB SK-SLO Oil-feed Holder SK-SLOiil&TJ m mm Specification D d Li l 2 L3 L B Side-lock screw Weight SK40- SL032-150 72 32 50 15 15 150 60/65 M120U200 5.35 SL040-150 72 40 50 18 19 150 60/65 M140U160 5.04 SK50- SL032-160 72 32 50 15 15 160 80/82 M120U200 8.64 SL040-160 72 40 50 18 19 160 80/82 M140U160 8.35 j±: tlTlTUBS, + Notice: .Wrench is included; 2.Before order please check the distance B. CSO Oil-feed Holder Reducing Sleeve CSOiil&TJ mm Specification D d di Li l 2 l 3 L Weight CSO 32-16 53 32 16 10 15 15 65 0.40 32-20 53 32 20 10 15 15 65 0.35 32-25 53 32 25 10 15 15 65 0.26 40-16 63 40 16 10 18 19 75 0.74 40-20 63 40 20 10 18 19 75 0.68 40-25 63 40 25 10 18 19 75 0.59 40-32 63 40 32 10 18 19 75 0.41 PB Oil-feed Holder Positioning Block PB i£ ±Si)± A mm Specification Weight BT40-PB30-35 0.53 BT50-PB30-35 0.46 ±tt%'srsss'JATc ii±o sitt, w Notice:llsing oil-feed holder, positioning block illustrated here is necessary. This positioning block can be mounted to different machines. As the mounting differs with different machines, it is necessary to consult the machine manufacturer about the proper mounting. bolt holes 06 n DEPEK
