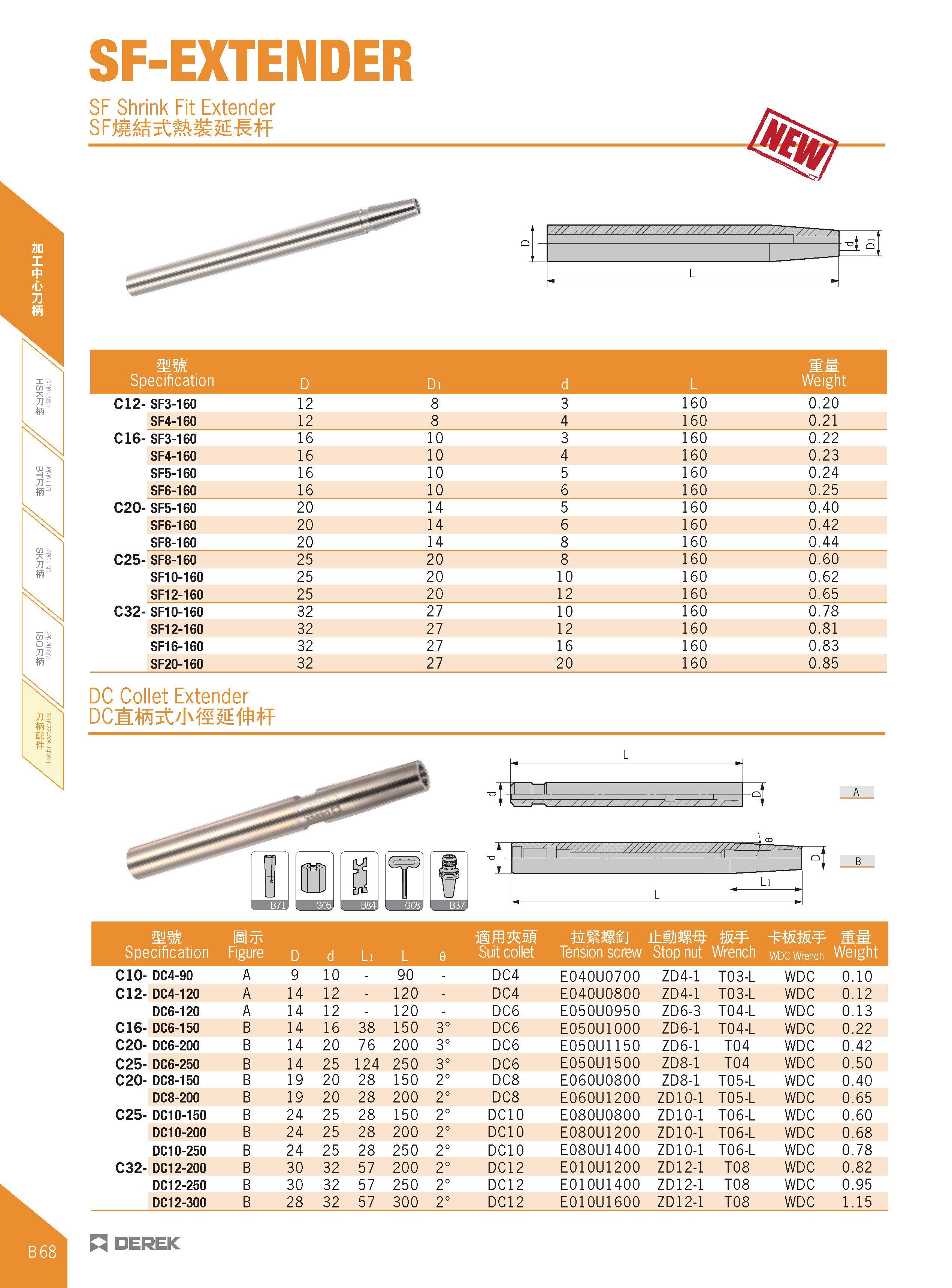

HSKRB // BTRS // SKRB // ISOR SF-EXTENDER SF Shrink Fit Extender 71 mm Specification D Di d L Weight Cl2- SF3-160 12 8 3 160 0.20 SF4-160 12 8 4 160 0.21 C16- SF3-160 16 10 3 160 0.22 SF4-160 16 10 4 160 0.23 SF5-160 16 10 5 160 0.24 SF6-160 16 10 6 160 0.25 C20- SF5-160 20 14 5 160 0.40 SF6-160 20 14 6 160 0.42 SF8-160 20 14 8 160 0.44 C25- SF8-160 25 20 8 160 0.60 SF10-160 25 20 10 160 0.62 SF12-160 25 20 12 160 0.65 C32- SF10-160 32 27 10 160 0.78 SF12-160 32 27 12 160 0.81 SF16-160 32 27 16 160 0.83 SF20-160 32 27 20 160 0.85 DC Collet Extender .yprr: 3= "I: ,r L Li mm Specification Bttc Figure D d Li L 0 Suit collet &SBBST Tension screw Stop nut Wrench WDC Wrench Weight CIO- DC4-90 A 9 10 - 90 - DC4 E040U0700 ZD4-1 T03-L WDC 0.10 Cl2- DC4-120 A 14 12 - 120 - DC4 E040U0800 ZD4-1 T03-L WDC 0.12 DC6-120 A 14 12 - 120 - DC6 E050U0950 ZD6-3 T04-L WDC 0.13 C16- DC6-150 B 14 16 38 150 3° DC6 E050U1000 ZD6-1 T04-L WDC 0.22 C20- DC6-200 B 14 20 76 200 3° DC6 E050U1150 ZD6-1 T04 WDC 0.42 C25- DC6-250 B 14 25 124 250 3° DC6 E050U1500 ZD8-1 T04 WDC 0.50 C20- DC8-150 B 19 20 28 150 2° DC8 E060U0800 ZD8-1 T05-L WDC 0.40 DC8-200 B 19 20 28 200 2° DC8 E060U1200 ZD 10-1 T05-L WDC 0.65 C25- DC10-150 B 24 25 28 150 2° DC10 E080U0800 ZD 10-1 T06-L WDC 0.60 DC10-200 B 24 25 28 200 2° DC10 E080U1200 ZD 10-1 T06-L WDC 0.68 DC10-250 B 24 25 28 250 2° DC10 E080U1400 ZD 10-1 T06-L WDC 0.78 C32- DC12-200 B 30 32 57 200 2° DC12 E010U1200 ZD12-1 T08 WDC 0.82 DC12-250 B 30 32 57 250 2° DC12 E010U1400 ZD12-1 T08 WDC 0.95 DC12-300 B 28 32 57 300 2° DC12 E010U1600 ZD12-1 T08 WDC 1.15 n DEREK
