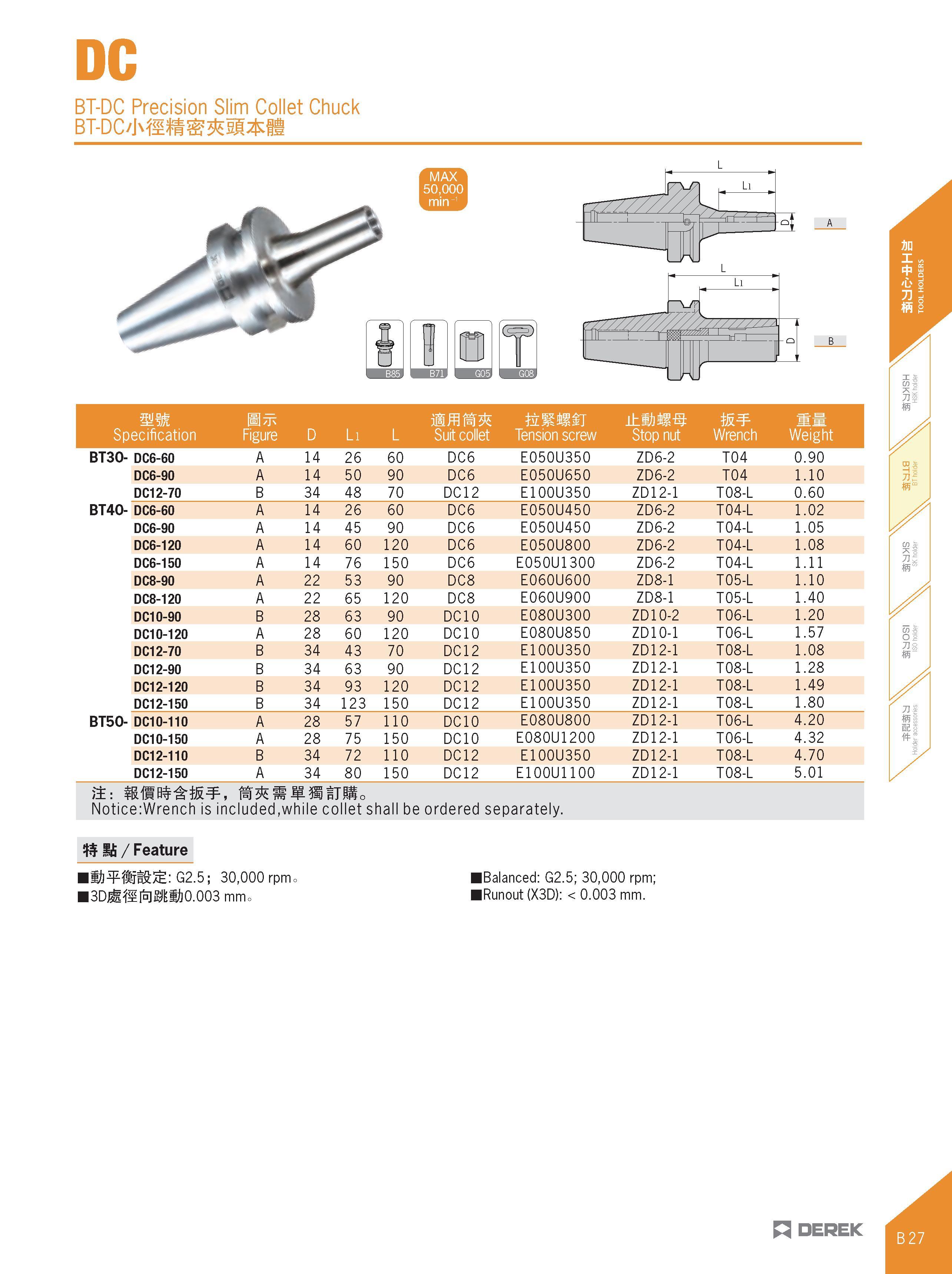

DC BT-DC Precision Slim Collet Chuck BT-DC/J\ IS sI il mm Specification Bttc Figure D Li L Suit collet &H41ST Tension screw Stop nut W Wrench Weight BT30- DC6-60 A 14 26 60 DC6 E050U350 ZD6-2 T04 0.90 DC6-90 A 14 50 90 DC6 E050U650 ZD6-2 T04 1.10 DC12-70 B 34 48 70 DC12 E100U350 ZD12-1 T08-L 0.60 BT40- DC6-60 A 14 26 60 DC6 E050U450 ZD6-2 T04-L 1.02 DC6-90 A 14 45 90 DC6 E050U450 ZD6-2 T04-L 1.05 DC6-120 A 14 60 120 DC6 E050U800 ZD6-2 T04-L 1.08 DC6-150 A 14 76 150 DC6 E050U1300 ZD6-2 T04-L 1.11 DC8-90 A 22 53 90 DC8 E060U600 ZD8-1 T05-L 1.10 DC8-120 A 22 65 120 DC8 E060U900 ZD8-1 T05-L 1.40 DC10-90 B 28 63 90 DC10 E080U300 ZD10-2 T06-L 1.20 DC10-120 A 28 60 120 DC10 E080U850 ZD 10-1 T06-L 1.57 DC12-70 B 34 43 70 DC12 E100U350 ZD12-1 T08-L 1.08 DC12-90 B 34 63 90 DC12 E100U350 ZD12-1 T08-L 1.28 DC12-120 B 34 93 120 DC12 E100U350 ZD12-1 T08-L 1.49 DC12-150 B 34 123 150 DC12 E100U350 ZD12-1 T08-L 1.80 BT50- DC10-110 A 28 57 110 DC10 E080U800 ZD12-1 T06-L 4.20 DC10-150 A 28 75 150 DC10 E080U1200 ZD12-1 T06-L 4.32 DC12-110 B 34 72 110 DC12 E100U350 ZD12-1 T08-L 4.70 DC12-150 A 34 80 150 DC12 E100U1100 ZD12-1 T08-L 5.01 j±: ffi i Notice:Wrench is included,wh . TPtJ L lTIlo ile collet shall be ordered separately. 9 £ / Feature S)¥iil£ : G2.5; 30,000 rpmc 3DjS fr011)0.003 mm. IBalanced: G2.5; 30,000 rpm; IRunout (X3D): < 0.003 mm. DEREK
