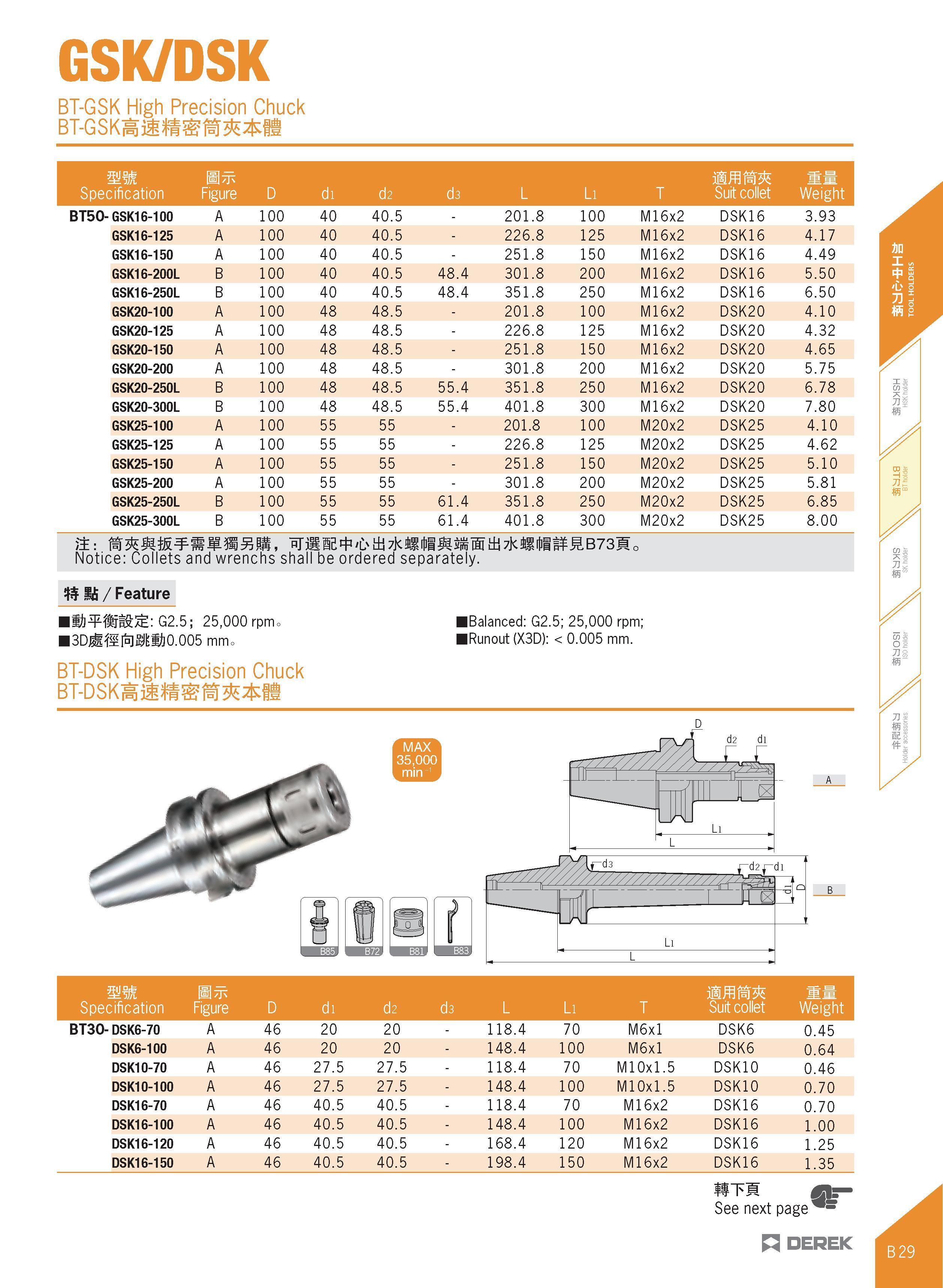

GSK/DSK BT-GSK High Precision Chuck BT-GSKEi£ ffi fi mm Specification Bttc Figure D di d2 d3 L Li T Suit collet Weight BT50- GSK16-100 A 100 40 40.5 - 201.8 100 Ml 6x2 DSK16 3.93 GSK16-125 A 100 40 40.5 - 226.8 125 Ml 6x2 DSK16 4.17 GSK16-150 A 100 40 40.5 - 251.8 150 Ml 6x2 DSK16 4.49 GSK16-200L B 100 40 40.5 48.4 301.8 200 Ml 6x2 DSK16 5.50 GSK16-250L B 100 40 40.5 48.4 351.8 250 Ml 6x2 DSK16 6.50 GSK20-100 A 100 48 48.5 - 201.8 100 Ml 6x2 DSK20 4.10 GSK20-125 A 100 48 48.5 - 226.8 125 Ml 6x2 DSK20 4.32 GSK20-150 A 100 48 48.5 - 251.8 150 Ml 6x2 DSK20 4.65 GSK20-200 A 100 48 48.5 - 301.8 200 Ml 6x2 DSK20 5.75 GSK20-250L B 100 48 48.5 55.4 351.8 250 Ml 6x2 DSK20 6.78 GSK20-300L B 100 48 48.5 55.4 401.8 300 Ml 6x2 DSK20 7.80 GSK25-100 A 100 55 55 - 201.8 100 M20x2 DSK25 4.10 GSK25-125 A 100 55 55 - 226.8 125 M20x2 DSK25 4.62 GSK25-150 A 100 55 55 - 251.8 150 M20x2 DSK25 5.10 GSK25-200 A 100 55 55 - 301.8 200 M20x2 DSK25 5.81 GSK25-250L B 100 55 55 61.4 351.8 250 M20x2 DSK25 6.85 GSK25-300L B 100 55 55 61.4 401.8 300 M20x2 DSK25 8.00 Notice: Collets and wrenchs shall be ordered separately. G2.5; 25,000 rprrio BBalanced: G2.5; 25,000 rpm; 3DJ MS)0.005 mm. Runout (X3D): < 0.005 mm. BT-DSK High Precision Chuck BT-DSKEi£ ffi fi mm Specification Bttc Figure D di d2 d3 L Li T Suit collet Weight BT30- DSK6-70 A 46 20 20 - 118.4 70 M6xl DSK6 0.45 DSK6-100 A 46 20 20 - 148.4 100 M6xl DSK6 0.64 DSK10-70 A 46 27.5 27.5 - 118.4 70 M10xl.5 DSK10 0.46 DSK10-100 A 46 27.5 27.5 - 148.4 100 M10xl.5 DSK10 0.70 DSK16-70 A 46 40.5 40.5 - 118.4 70 Ml 6x2 DSK16 0.70 DSK16-100 A 46 40.5 40.5 - 148.4 100 Ml 6x2 DSK16 1.00 DSK16-120 A 46 40.5 40.5 - 168.4 120 Ml 6x2 DSK16 1.25 DSK16-150 A 46 40.5 40.5 - 198.4 150 Ml 6x2 DSK16 1.35 nTM qj- See next page = n DEREK
