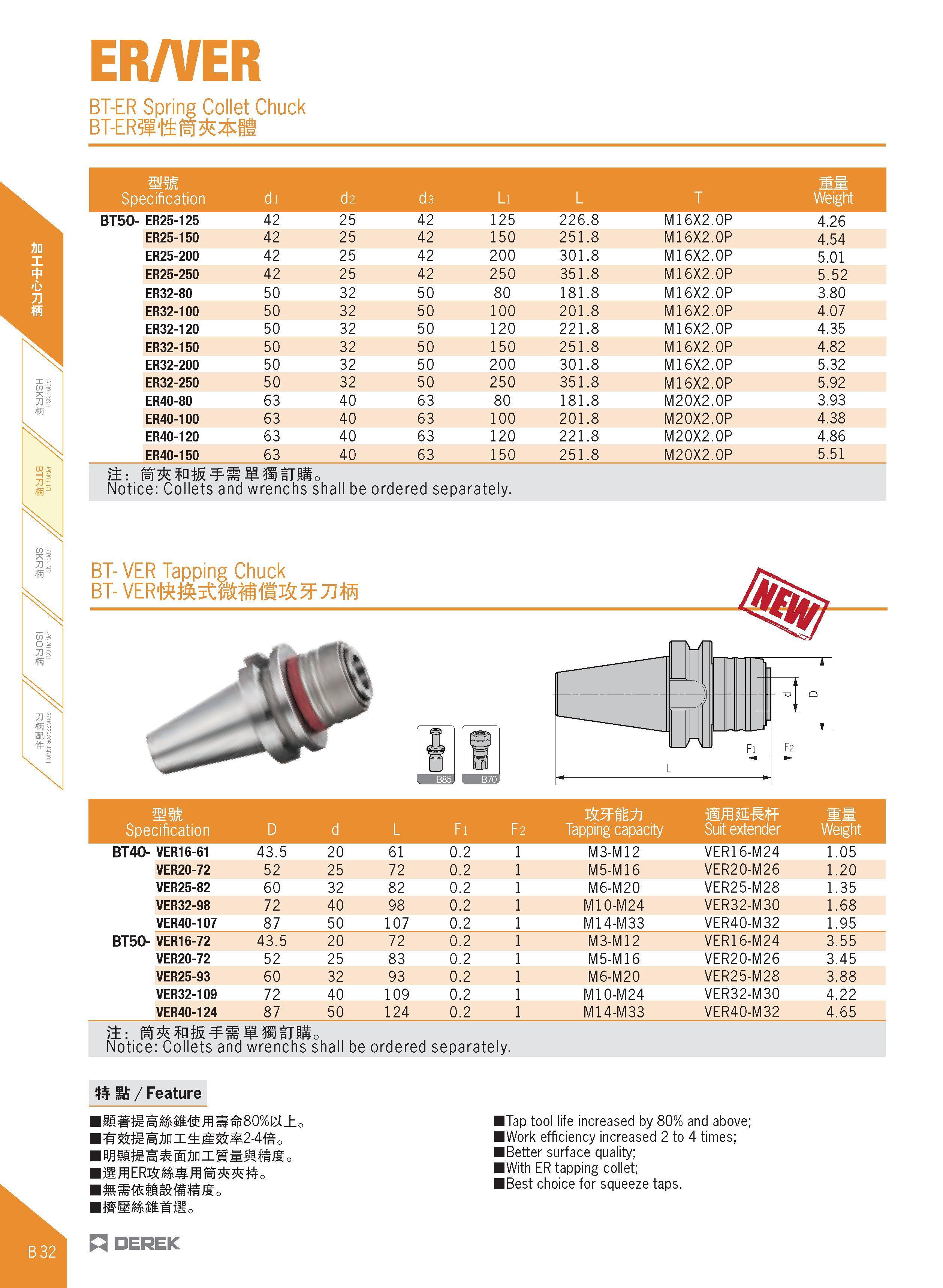

ER/VER BT-ER Spring Collet Chuck BT-ER itt1 il mm Specification di d2 d3 Li L T Weight BT50- ER25-125 42 25 42 125 226.8 M16X2.0P 4.26 ER25-150 42 25 42 150 251.8 M16X2.0P 4.54 ER25-200 42 25 42 200 301.8 M16X2.0P 5.01 ER25-250 42 25 42 250 351.8 M16X2.0P 5.52 ER32-80 50 32 50 80 181.8 M16X2.0P 3.80 ER32-100 50 32 50 100 201.8 M16X2.0P 4.07 ER32-120 50 32 50 120 221.8 M16X2.0P 4.35 ER32-150 50 32 50 150 251.8 M16X2.0P 4.82 ER32-200 50 32 50 200 301.8 M16X2.0P 5.32 ER32-250 50 32 50 250 351.8 M16X2.0P 5.92 ER40-80 63 40 63 80 181.8 M20X2.0P 3.93 ER40-100 63 40 63 100 201.8 M20X2.0P 4.38 ER40-120 63 40 63 120 221.8 M20X2.0P 4.86 ER40-150 63 40 63 150 251.8 M20X2.0P 5.51 ft: Notice: Collets and wrenchs shall be ordered separately. O 77S 71 ffi BT- VER Tapping Chuck bt- HJ F2 mm Specification D d L Fi F 2 Tapping capacity Suit extender Ww Weight BT40- VER16-61 43.5 20 61 0.2 1 M3-M12 VER16-M24 1.05 VER20-72 52 25 72 0.2 1 M5-M16 VER20-M26 1.20 VER25-82 60 32 82 0.2 1 M6-M20 VER25-M28 1.35 VER32-98 72 40 98 0.2 1 M10-M24 VER32-M30 1.68 VER40-107 87 50 107 0.2 1 M14-M33 VER40-M32 1.95 BT50- VER16-72 43.5 20 72 0.2 1 M3-M12 VER16-M24 3.55 VER20-72 52 25 83 0.2 1 M5-M16 VER20-M26 3.45 VER25-93 60 32 93 0.2 1 M6-M20 VER25-M28 3.88 VER32-109 72 40 109 0.2 1 M10-M24 VER32-M30 4.22 VER40-124 87 50 124 0.2 1 M14-M33 VER40-M32 4.65 j±: Notice: Collets and wrenchs shall be ordered separately. S IS / Feature W K ini£S 24teo IRE HtH Si in iSsHfifi o ITap tool life increased by 80% and above; IWork efficiency increased 2 to 4 times; I Better surface quality; IWith ER tapping collet; I Best choice for squeeze taps. H DEREK
