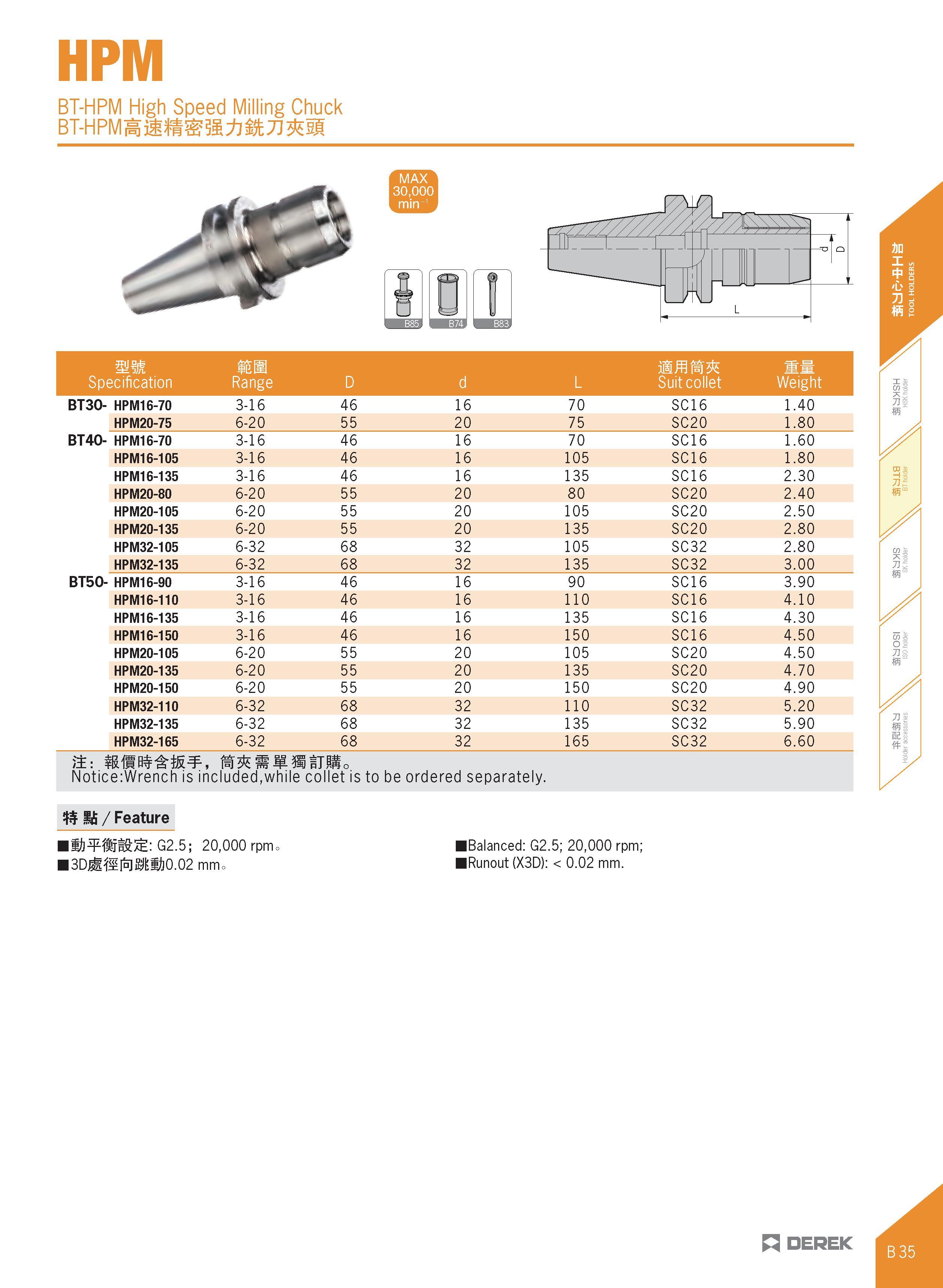

HPM BT-HPM High Speed Milling Chuck BT-HPM m fel mm. Specification mm Range D d L Suit collet Weight BT30- HPM16-70 3-16 46 16 70 SC16 1.40 HPM20-75 6-20 55 20 75 SC20 1.80 BT40- HPM16-70 3-16 46 16 70 SC16 1.60 HPM16-105 3-16 46 16 105 SC16 1.80 HPM16-135 3-16 46 16 135 SC16 2.30 HPM20-80 6-20 55 20 80 SC20 2.40 HPM20-105 6-20 55 20 105 SC20 2.50 HPM20-135 6-20 55 20 135 SC20 2.80 HPM32-105 6-32 68 32 105 SC32 2.80 HPM32-135 6-32 68 32 135 SC32 3.00 BT50- HPM16-90 3-16 46 16 90 SC16 3.90 HPM16-110 3-16 46 16 110 SC16 4.10 HPM16-135 3-16 46 16 135 SC16 4.30 HPM16-150 3-16 46 16 150 SC16 4.50 HPM20-105 6-20 55 20 105 SC20 4.50 HPM20-135 6-20 55 20 135 SC20 4.70 HPM20-150 6-20 55 20 150 SC20 4.90 HPM32-110 6-32 68 32 110 SC32 5.20 HPM32-135 6-32 68 32 135 SC32 5.90 HPM32-165 6-32 68 32 165 SC32 6.60 j±: Notice:Wrench is included,while collet is to be ordered separately. A S IS / Feature G2.5; 20,000 rprrio BBalanced: G2.5; 20,000 rpm; 3Djfi fr l-JS 0.02 mm. Runout (X3D): < 0.02 mm. n DEREK
