148 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B36

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B36 0148 Lab2u

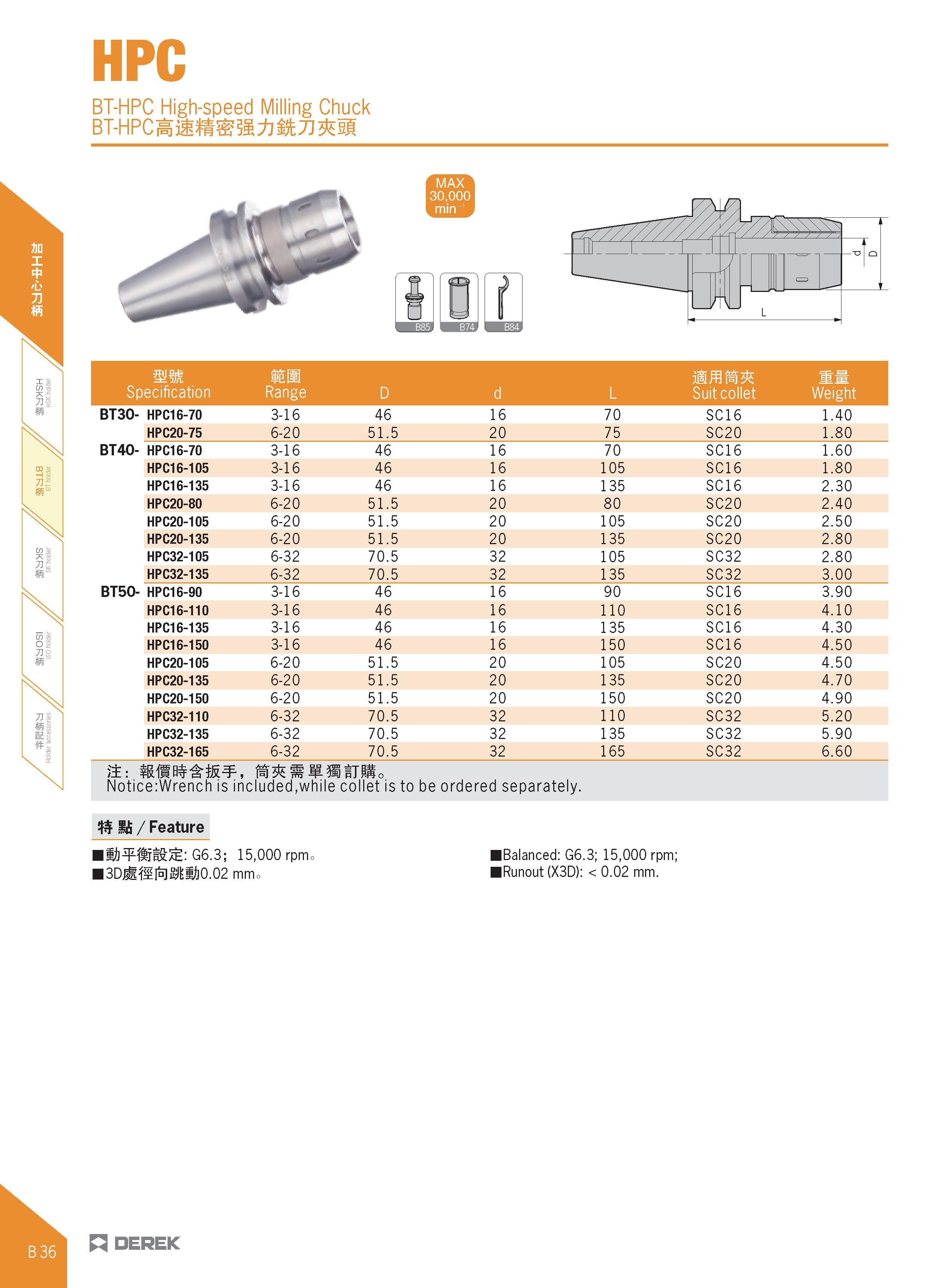

HPC BT-HPC High-speed Milling Chuck BT-HPCEig 3S 8fe7J 5i mm Specification mm Range D d L Suit collet Weight BT30- HPC16-70 3-16 46 16 70 SC16 1.40 HPC20-75 6-20 51.5 20 75 SC20 1.80 BT40- HPC16-70 3-16 46 16 70 SC16 1.60 HPC16-105 3-16 46 16 105 SC16 1.80 HPC16-135 3-16 46 16 135 SC16 2.30 HPC20-80 6-20 51.5 20 80 SC20 2.40 HPC20-105 6-20 51.5 20 105 SC20 2.50 HPC20-135 6-20 51.5 20 135 SC20 2.80 HPC32-105 6-32 70.5 32 105 SC32 2.80 HPC32-135 6-32 70.5 32 135 SC32 3.00 BT50- HPC16-90 3-16 46 16 90 SC16 3.90 HPC16-110 3-16 46 16 110 SC16 4.10 HPC16-135 3-16 46 16 135 SC16 4.30 HPC16-150 3-16 46 16 150 SC16 4.50 HPC20-105 6-20 51.5 20 105 SC20 4.50 HPC20-135 6-20 51.5 20 135 SC20 4.70 HPC20-150 6-20 51.5 20 150 SC20 4.90 HPC32-110 6-32 70.5 32 110 SC32 5.20 HPC32-135 6-32 70.5 32 135 SC32 5.90 HPC32-165 6-32 70.5 32 165 SC32 6.60 j±: Notice:Wrench is included,while collet is to be ordered separately. : £ / Feature G6.3; 15,000 rpmo 3DjtfeMS)0.02 mm. iBalanced: G6.3; 15,000 rpm; iRunout (X3D): < 0.02 mm. ZZ DEREK
