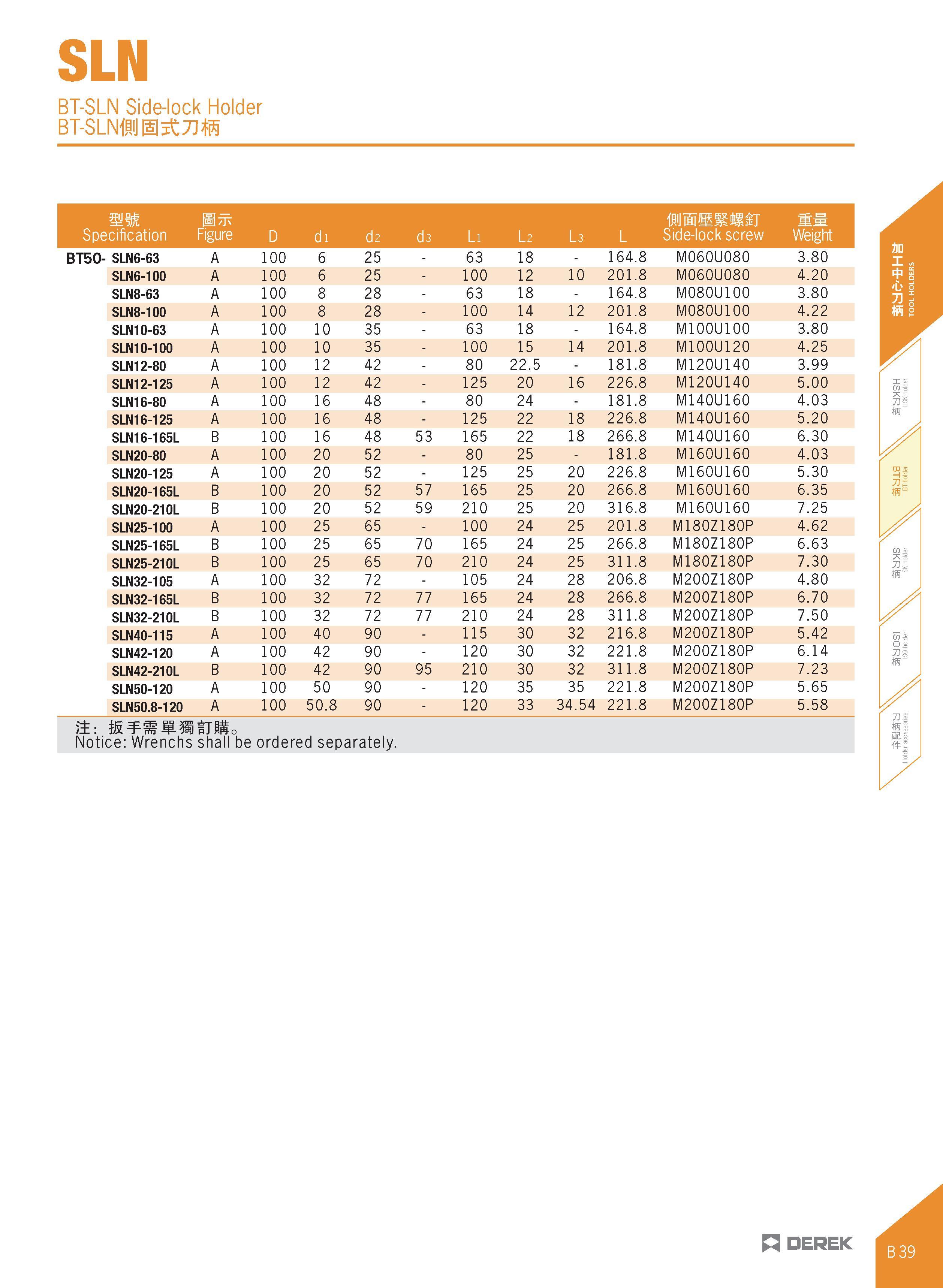

SLN BT-SLN Side-lock Holder BT-SLNffPJ HO jtTJli mm Specification Bttc Figure D di d2 d3 Li l 2 l 3 L '(PJMlIlti.lfJ Side-lock screw Weight BT50- SLN6-63 A 100 6 25 - 63 18 - 164.8 M060U080 3.80 SLN6-100 A 100 6 25 - 100 12 10 201.8 M060U080 4.20 SLN8-63 A 100 8 28 - 63 18 - 164.8 M080U100 3.80 SLN8-100 A 100 8 28 - 100 14 12 201.8 M080U100 4.22 SLN10-63 A 100 10 35 - 63 18 - 164.8 M100U100 3.80 SLN10-100 A 100 10 35 - 100 15 14 201.8 M100U120 4.25 SLN12-80 A 100 12 42 - 80 22.5 - 181.8 M120U140 3.99 SLN12-125 A 100 12 42 - 125 20 16 226.8 M120U140 5.00 SLN16-80 A 100 16 48 - 80 24 - 181.8 M140U160 4.03 SLN16-125 A 100 16 48 - 125 22 18 226.8 M140U160 5.20 SLN16-165L B 100 16 48 53 165 22 18 266.8 M140U160 6.30 SLN20-80 A 100 20 52 - 80 25 - 181.8 M160U160 4.03 SLN20-125 A 100 20 52 - 125 25 20 226.8 M160U160 5.30 SLN20-165L B 100 20 52 57 165 25 20 266.8 M160U160 6.35 SLN20-210L B 100 20 52 59 210 25 20 316.8 M160U160 7.25 SLN25-100 A 100 25 65 - 100 24 25 201.8 M180Z180P 4.62 SLN25-165L B 100 25 65 70 165 24 25 266.8 M180Z180P 6.63 SLN25-210L B 100 25 65 70 210 24 25 311.8 M180Z180P 7.30 SLN32-105 A 100 32 72 - 105 24 28 206.8 M200Z180P 4.80 SLN32-165L B 100 32 72 77 165 24 28 266.8 M200Z180P 6.70 SLN32-210L B 100 32 72 77 210 24 28 311.8 M200Z180P 7.50 SLN40-115 A 100 40 90 - 115 30 32 216.8 M200Z180P 5.42 SLN42-120 A 100 42 90 - 120 30 32 221.8 M200Z180P 6.14 SLN42-210L B 100 42 90 95 210 30 32 311.8 M200Z180P 7.23 SLN50-120 A 100 50 90 - 120 35 35 221.8 M200Z180P 5.65 SLN50.8-120 A 100 50.8 90 - 120 33 34.54 221.8 M200Z180P 5.58 j±: Notice: Wrenchs shall be ordered separately. n DEREK
