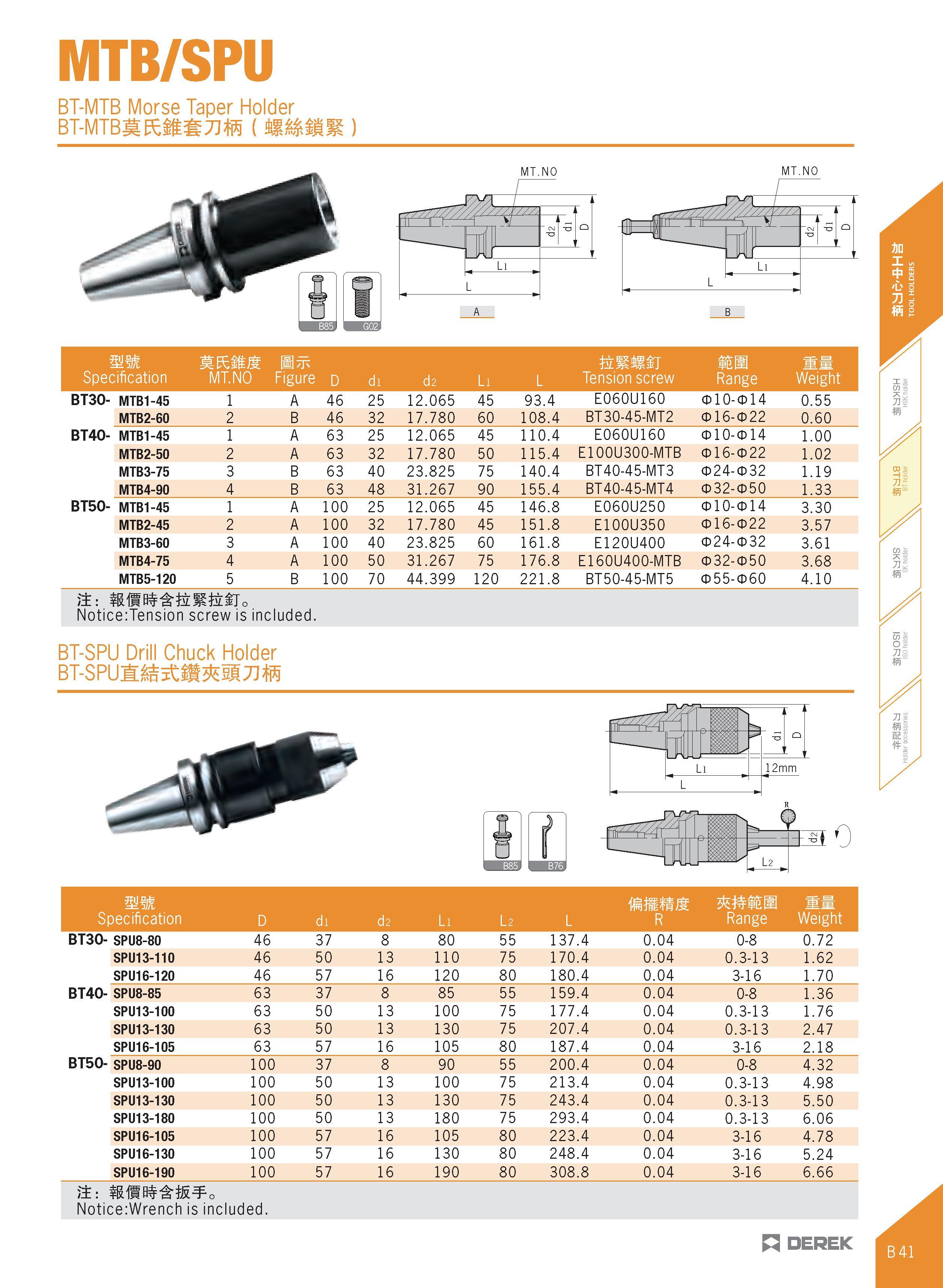

MTB/SPU BT-MTB Morse Taper Holder BT-MTBJIRiiSTJffi (dSftfjgM ) MT.NO MT.NO mm Specification mmm MT.NO Bttc Figure D di d2 Li L itmi1ST Tension screw mm Range Weight BT30- MTB1-45 i A 46 25 12.065 45 93.4 E060U160 010-014 0.55 MTB2-60 2 B 46 32 17.780 60 108.4 BT30-45-MT2 016-022 0.60 BT40- MTB1-45 i A 63 25 12.065 45 110.4 E060U160 010-014 1.00 MTB2-50 2 A 63 32 17.780 50 115.4 E100U300-MTB 016-022 1.02 MTB3-75 3 B 63 40 23.825 75 140.4 BT40-45-MT3 024-032 1.19 MTB4-90 4 B 63 48 31.267 90 155.4 BT40-45-MT4 O32-O50 1.33 BT50- MTB1-45 1 A 100 25 12.065 45 146.8 E060U250 010-014 3.30 MTB2-45 2 A 100 32 17.780 45 151.8 E100U350 016-022 3.57 MTB3-60 3 A 100 40 23.825 60 161.8 E120U400 024-032 3.61 MTB4-75 4 A 100 50 31.267 75 176.8 E160U400-MTB O32-O50 3.68 MTB5-120 5 B 100 70 44.399 120 221.8 BT50-45-MT5 O55-O60 4.10 j±: mm WMWo Notice:Tension screw is included. BT-SPU Drill Chuck Holder BT-SPU f£ stiffs TIffi fE5s3iT an 12mm MUI r) mm Specification D di d2 Li 1.2 L R Range Weight BT30- SPU8-80 46 37 8 80 55 137.4 0.04 0-8 0.72 SPU13-110 46 50 13 110 75 170.4 0.04 0.3-13 1.62 SPU16-120 46 57 16 120 80 180.4 0.04 3-16 1.70 BT40- SPU8-85 63 37 8 85 55 159.4 0.04 0-8 1.36 SPU13-100 63 50 13 100 75 177.4 0.04 0.3-13 1.76 SPU13-130 63 50 13 130 75 207.4 0.04 0.3-13 2.47 SPU16-105 63 57 16 105 80 187.4 0.04 3-16 2.18 BT50- SPU8-90 100 37 8 90 55 200.4 0.04 0-8 4.32 SPU13-100 100 50 13 100 75 213.4 0.04 0.3-13 4.98 SPU13-130 100 50 13 130 75 243.4 0.04 0.3-13 5.50 SPU13-180 100 50 13 180 75 293.4 0.04 0.3-13 6.06 SPU16-105 100 57 16 105 80 223.4 0.04 3-16 4.78 SPU16-130 100 57 16 130 80 248.4 0.04 3-16 5.24 SPU16-190 100 57 16 190 80 308.8 0.04 3-16 6.66 j±: Notice:Wrench is included. DEPEK
