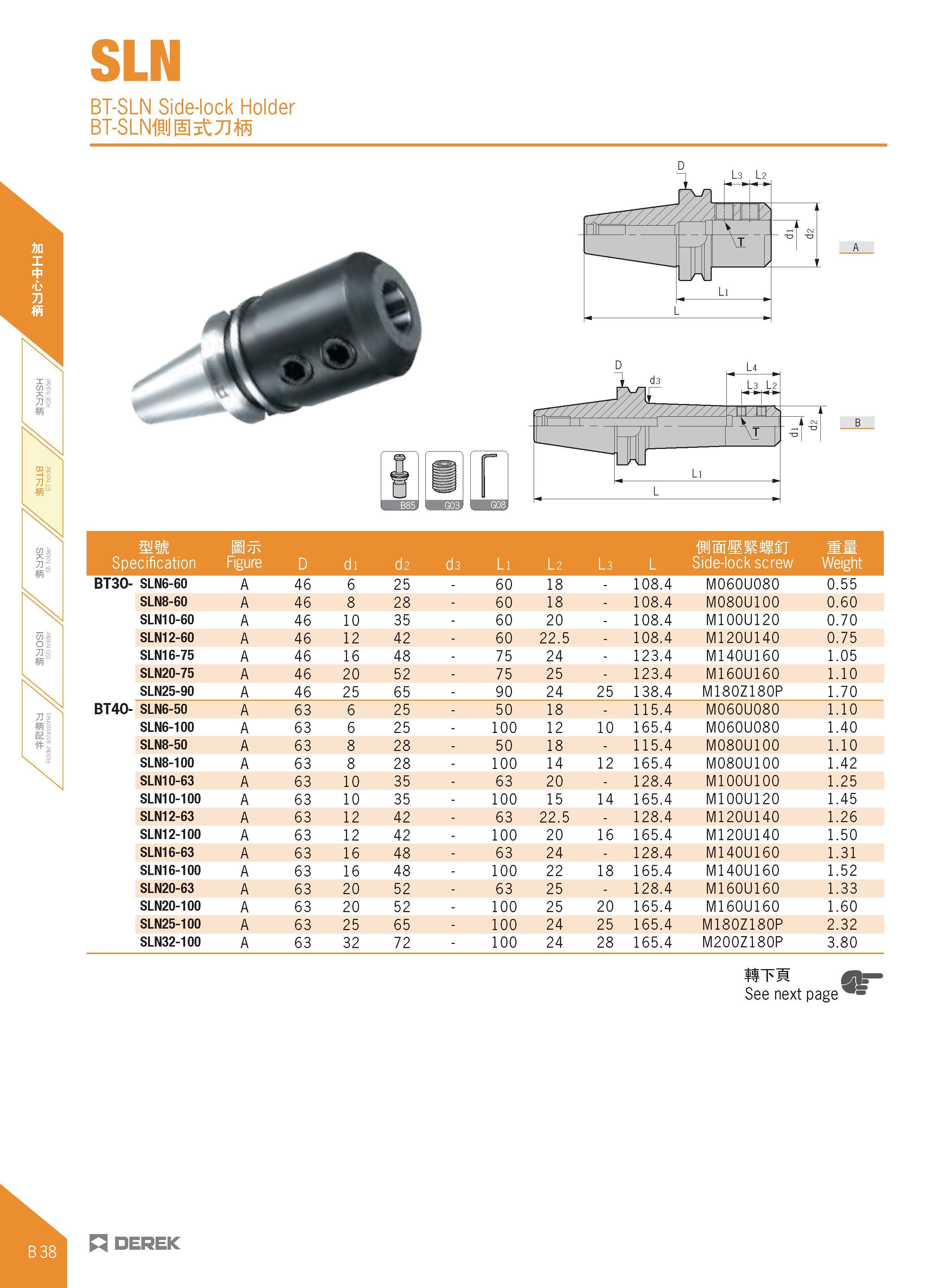

SLN BT-SLN Side-lock Holder BT-SLNffPJ m Specification Bttc Figure D di d2 d3 Li l 2 l 3 L '(PJMlIlti.lfJ Side-lock screw Weight BT30- SLN6-60 A 46 6 25 - 60 18 - 108.4 M060U080 0.55 SLN8-60 A 46 8 28 - 60 18 - 108.4 M080U100 0.60 SLN10-60 A 46 10 35 - 60 20 - 108.4 M100U120 0.70 SLN12-60 A 46 12 42 - 60 22.5 - 108.4 M120U140 0.75 SLN16-75 A 46 16 48 - 75 24 - 123.4 M140U160 1.05 SLN20-75 A 46 20 52 - 75 25 - 123.4 M160U160 1.10 SLN25-90 A 46 25 65 - 90 24 25 138.4 M180Z180P 1.70 BT40- SLN6-50 A 63 6 25 - 50 18 - 115.4 M060U080 1.10 SLN6-100 A 63 6 25 - 100 12 10 165.4 M060U080 1.40 SLN8-50 A 63 8 28 - 50 18 - 115.4 M080U100 1.10 SLN8-100 A 63 8 28 - 100 14 12 165.4 M080U100 1.42 SLN10-63 A 63 10 35 - 63 20 - 128.4 M100U100 1.25 SLN10-100 A 63 10 35 - 100 15 14 165.4 M100U120 1.45 SLN12-63 A 63 12 42 - 63 22.5 - 128.4 M120U140 1.26 SLN12-100 A 63 12 42 - 100 20 16 165.4 M120U140 1.50 SLN16-63 A 63 16 48 - 63 24 - 128.4 M140U160 1.31 SLN16-100 A 63 16 48 - 100 22 18 165.4 M140U160 1.52 SLN20-63 A 63 20 52 - 63 25 - 128.4 M160U160 1.33 SLN20-100 A 63 20 52 - 100 25 20 165.4 M160U160 1.60 SLN25-100 A 63 25 65 - 100 24 25 165.4 M180Z180P 2.32 SLN32-100 A 63 32 72 - 100 24 28 165.4 M200Z180P 3.80 TM gfe-See next page 5 H DEREK
