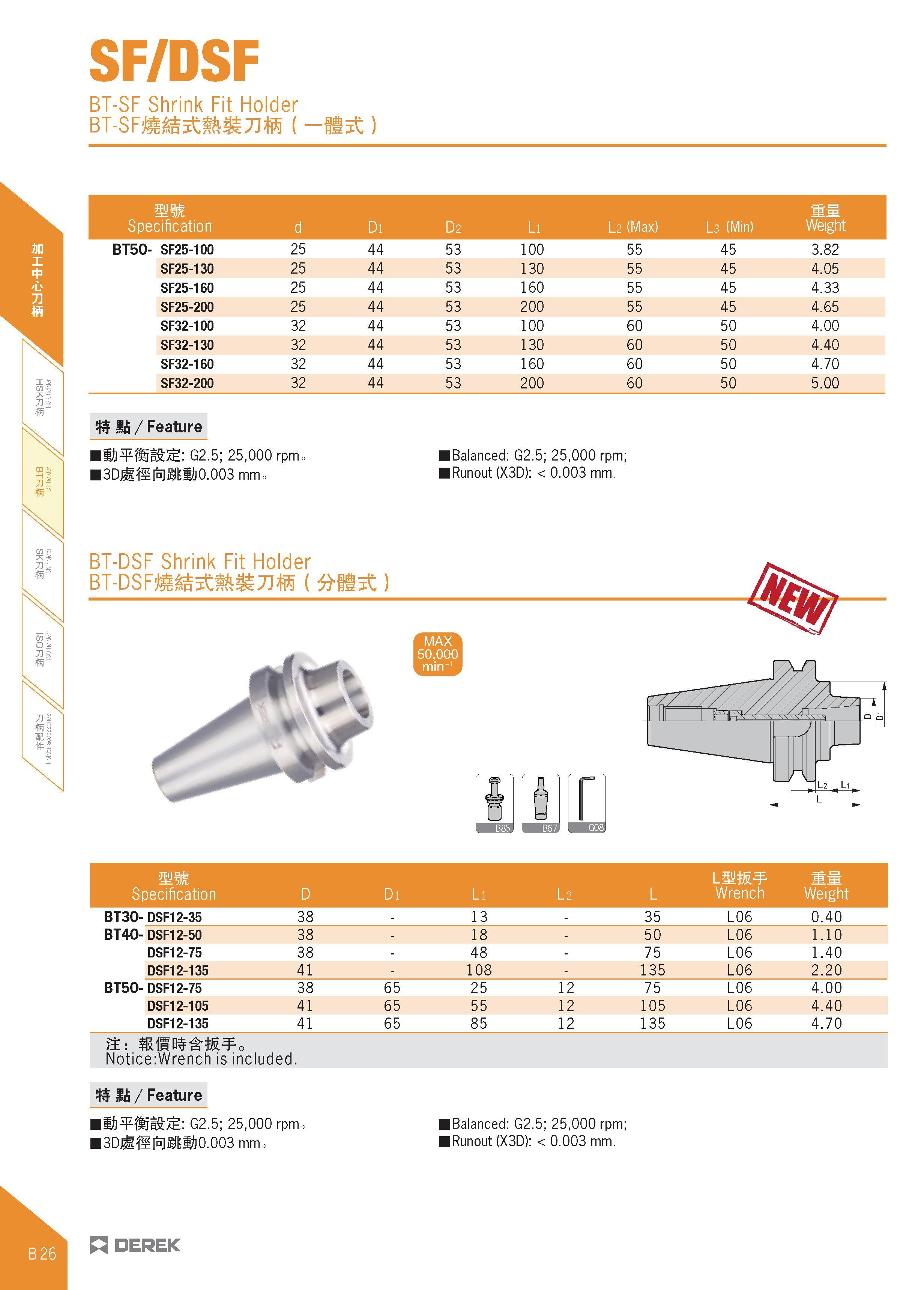

SF/DSF BT-SF Shrink Fit Holder BT-SFji 5t 7Iffi ( -fist) mm Specification d Di D2 Li l 2 (Max) La (Min) Ww Weight BT50- SF25-100 25 44 53 100 55 45 3.82 SF25-130 25 44 53 130 55 45 4.05 SF25-160 25 44 53 160 55 45 4.33 SF25-200 25 44 53 200 55 45 4.65 SF32-100 32 44 53 100 60 50 4.00 SF32-130 32 44 53 130 60 50 4.40 SF32-160 32 44 53 160 60 50 4.70 SF32-200 32 44 53 200 60 50 5.00 : £ / Feature G2.5; 25,000 rpmc 3DjS fr011)0.003 mm. iBalanced: G2.5; 25,000 rpm; iRunout (X3D): < 0.003 mm. BT-DSF Shrink Fit Holder BT-DSFji 5t 7Iffi ( f 5t) OI 77g 77 m Hg mm Specification D Di Li l 2 L imm Wrench Weight BT30- DSF12-35 38 - 13 - 35 L06 0.40 BT40- DSF12-50 38 - 18 - 50 L06 1.10 DSF12-75 38 - 48 - 75 L06 1.40 DSF12-135 41 - 108 - 135 L06 2.20 BT50- DSF12-75 38 65 25 12 75 L06 4.00 DSF12-105 41 65 55 12 105 L06 4.40 DSF12-135 41 65 85 12 135 L06 4.70 j±: Notice:Wrench is included. S IS / Feature G2.5; 25,000 rpmc 3DjS fr0.003 mm. IBalanced: G2.5; 25,000 rpm; IRunout (X3D): < 0.003 mm. P DEREK
