135 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B23

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B23 0135 Lab2u

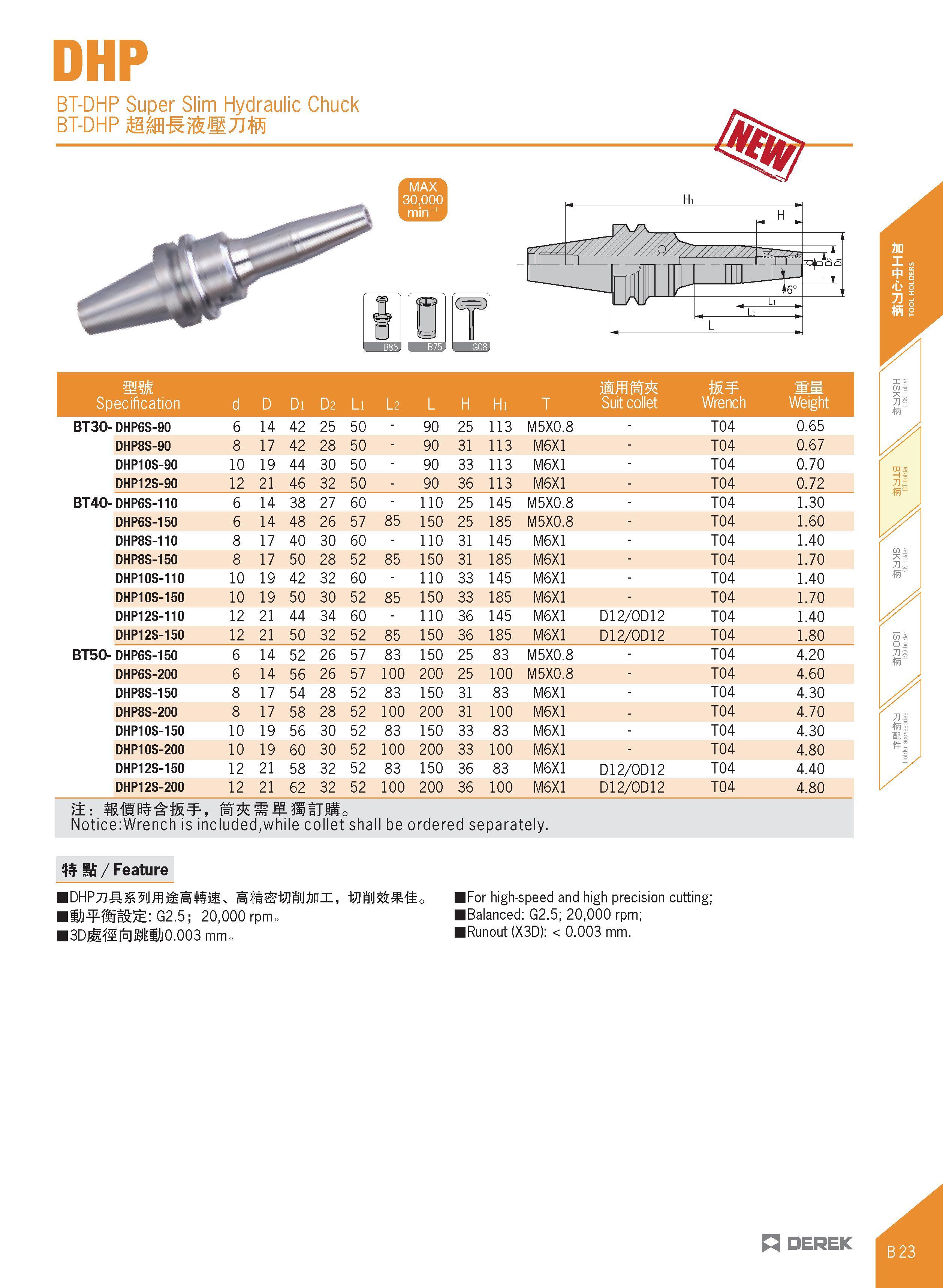

DHP BT-DHP Super Slim Hydraulic Chuck BT-DHP mm. Specification d D Di D2 Li l 2 L H Hi T Suit collet Wrench Weight BT30- DHP6S-90 6 14 42 25 50 - 90 25 113 M5X0.8 - T04 0.65 DHP8S-90 8 17 42 28 50 - 90 31 113 M6X1 - T04 0.67 DHP10S-90 10 19 44 30 50 - 90 33 113 M6X1 - T04 0.70 DHP12S-90 12 21 46 32 50 - 90 36 113 M6X1 - T04 0.72 BT40- DHP6S-110 6 14 38 27 60 - 110 25 145 M5X0.8 - T04 1.30 DHP6S-150 6 14 48 26 57 85 150 25 185 M5X0.8 - T04 1.60 DHP8S-110 8 17 40 30 60 - 110 31 145 M6X1 - T04 1.40 DHP8S-150 8 17 50 28 52 85 150 31 185 M6X1 - T04 1.70 DHP10S-110 10 19 42 32 60 - 110 33 145 M6X1 - T04 1.40 DHP10S-150 10 19 50 30 52 85 150 33 185 M6X1 - T04 1.70 DHP12S-110 12 21 44 34 60 - 110 36 145 M6X1 D12/OD12 T04 1.40 DHP12S-150 12 21 50 32 52 85 150 36 185 M6X1 D12/OD12 T04 1.80 BT50- DHP6S-150 6 14 52 26 57 83 150 25 83 M5X0.8 - T04 4.20 DHP6S-200 6 14 56 26 57 100 200 25 100 M5X0.8 - T04 4.60 DHP8S-150 8 17 54 28 52 83 150 31 83 M6X1 - T04 4.30 DHP8S-200 8 17 58 28 52 100 200 31 100 M6X1 - T04 4.70 DHP10S-150 10 19 56 30 52 83 150 33 83 M6X1 - T04 4.30 DHP10S-200 10 19 60 30 52 100 200 33 100 M6X1 - T04 4.80 DHP12S-150 12 21 58 32 52 83 150 36 83 M6X1 D12/OD12 T04 4.40 DHP12S-200 12 21 62 32 52 100 200 36 100 M6X1 D12/OD12 T04 4.80 n T3 ilTIl Notice:Wrench is included,while collet shall be ordered separately. 9 £ / Feature tJ)SJ£>t:S'f±o BFor high-speed and high precision cutting; G2.5; 20,000 rpmo BBalanced: G2.5; 20,000 rpm; 3D S S lll0.003 mm. BRunout (X3D): < 0.003 mm. DEPEK
