133 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B21

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B21 0133 Lab2u

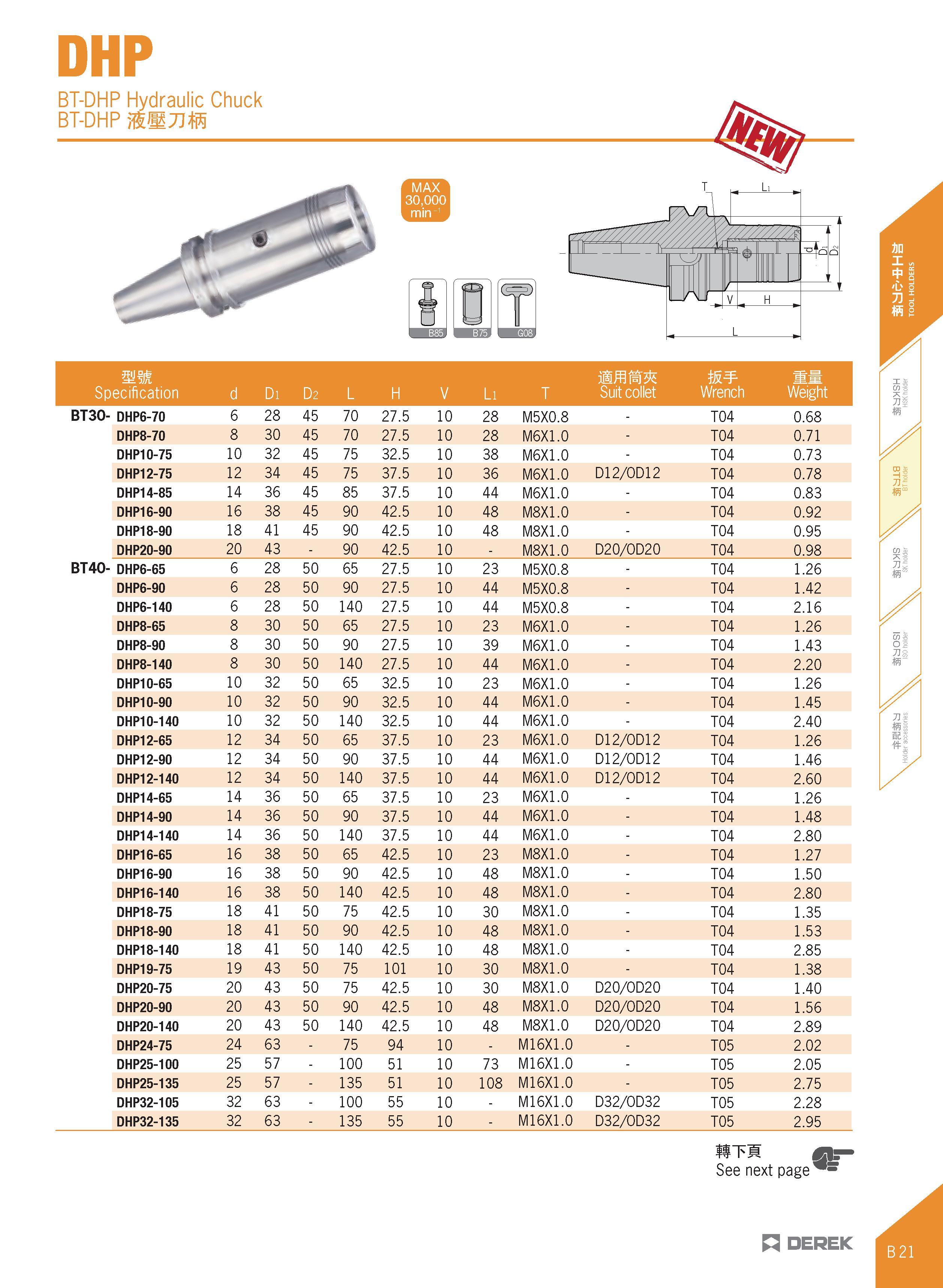

DHP BT-DHP Hydraulic Chuck BT-DHP Specification d Di D2 L H V Li T Suit collet Wrench Ww Weight BT30- DHP6-70 6 28 45 70 27.5 10 28 M5X0.8 - T04 0.68 DHP8-70 8 30 45 70 27.5 10 28 M6X1.0 - T04 0.71 DHP10-75 10 32 45 75 32.5 10 38 M6X1.0 - T04 0.73 DHP12-75 12 34 45 75 37.5 10 36 M6X1.0 D12/OD12 T04 0.78 DHP14-85 14 36 45 85 37.5 10 44 M6X1.0 - T04 0.83 DHP16-90 16 38 45 90 42.5 10 48 M8X1.0 - T04 0.92 DHP18-90 18 41 45 90 42.5 10 48 M8X1.0 - T04 0.95 DHP20-90 20 43 - 90 42.5 10 - M8X1.0 D20/OD20 T04 0.98 BT40- DHP6-65 6 28 50 65 27.5 10 23 M5X0.8 - T04 1.26 DHP6-90 6 28 50 90 27.5 10 44 M5X0.8 - T04 1.42 DHP6-140 6 28 50 140 27.5 10 44 M5X0.8 - T04 2.16 DHP8-65 8 30 50 65 27.5 10 23 M6X1.0 - T04 1.26 DHP8-90 8 30 50 90 27.5 10 39 M6X1.0 - T04 1.43 DHP8-140 8 30 50 140 27.5 10 44 M6X1.0 - T04 2.20 DHP10-65 10 32 50 65 32.5 10 23 M6X1.0 - T04 1.26 DHP10-90 10 32 50 90 32.5 10 44 M6X1.0 - T04 1.45 DHP10-140 10 32 50 140 32.5 10 44 M6X1.0 - T04 2.40 DHP12-65 12 34 50 65 37.5 10 23 M6X1.0 D12/OD12 T04 1.26 DHP12-90 12 34 50 90 37.5 10 44 M6X1.0 D12/OD12 T04 1.46 DHP12-140 12 34 50 140 37.5 10 44 M6X1.0 D12/OD12 T04 2.60 DHP14-65 14 36 50 65 37.5 10 23 M6X1.0 - T04 1.26 DHP14-90 14 36 50 90 37.5 10 44 M6X1.0 - T04 1.48 DHP14-140 14 36 50 140 37.5 10 44 M6X1.0 - T04 2.80 DHP16-65 16 38 50 65 42.5 10 23 M8X1.0 - T04 1.27 DHP16-90 16 38 50 90 42.5 10 48 M8X1.0 - T04 1.50 DHP16-140 16 38 50 140 42.5 10 48 M8X1.0 - T04 2.80 DHP18-75 18 41 50 75 42.5 10 30 M8X1.0 - T04 1.35 DHP18-90 18 41 50 90 42.5 10 48 M8X1.0 - T04 1.53 DHP18-140 18 41 50 140 42.5 10 48 M8X1.0 - T04 2.85 DHP19-75 19 43 50 75 101 10 30 M8X1.0 - T04 1.38 DHP20-75 20 43 50 75 42.5 10 30 M8X1.0 D20/OD20 T04 1.40 DHP20-90 20 43 50 90 42.5 10 48 M8X1.0 D20/OD20 T04 1.56 DHP20-140 20 43 50 140 42.5 10 48 M8X1.0 D20/OD20 T04 2.89 DHP24-75 24 63 - 75 94 10 - M16X1.0 - T05 2.02 DHP25-100 25 57 - 100 51 10 73 M16X1.0 - T05 2.05 DHP25-135 25 57 - 135 51 10 108 M16X1.0 - T05 2.75 DHP32-105 32 63 - 100 55 10 - M16X1.0 D32/0D32 T05 2.28 DHP32-135 32 63 - 135 55 10 - M16X1.0 D32/0D32 T05 2.95 TJt See next page n DEPEK
