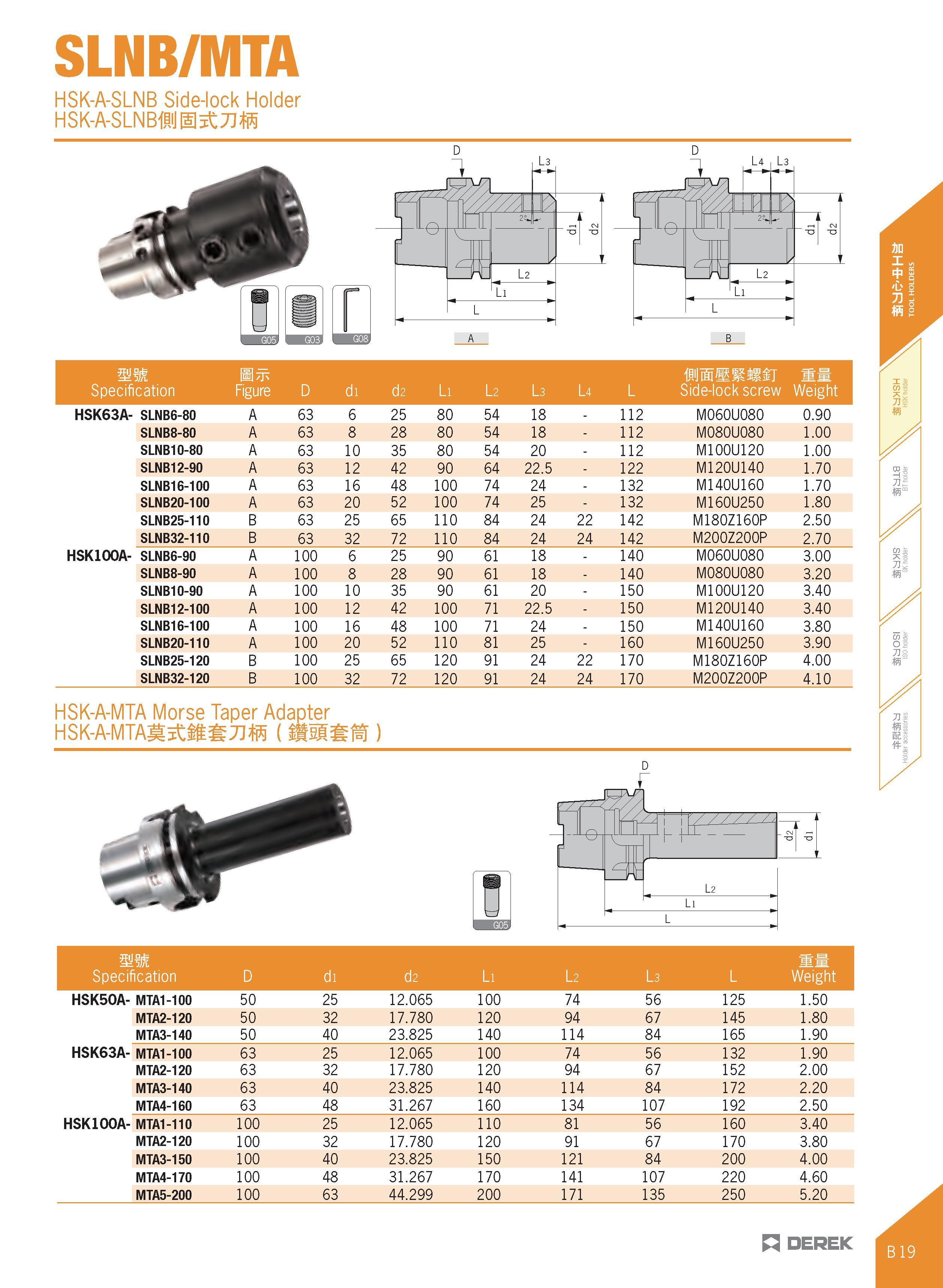

SLNB/MTA HSK-A-SLNB Side-lock Holder H S K-A-S LN BfiJ HO it 7J IS mm Specification Bttc Figure D di d2 Li l 2 l 3 L4 L Side-lock screw Weight HSK63A- SLNB6-80 A 63 6 25 80 54 18 - 112 M060U080 0.90 SLNB8-80 A 63 8 28 80 54 18 - 112 M080U080 1.00 SLNB10-80 A 63 10 35 80 54 20 - 112 M100U120 1.00 SLNB12-90 A 63 12 42 90 64 22.5 - 122 M120U140 1.70 SLNB16-100 A 63 16 48 100 74 24 - 132 M140U160 1.70 SLNB20-100 A 63 20 52 100 74 25 - 132 M160U250 1.80 SLNB25-110 B 63 25 65 110 84 24 22 142 M180Z160P 2.50 SLNB32-110 B 63 32 72 110 84 24 24 142 M200Z200P 2.70 HSKIOOA- SLNB6-90 A 100 6 25 90 61 18 - 140 M060U080 3.00 SLNB8-90 A 100 8 28 90 61 18 - 140 M080U080 3.20 SLNB10-90 A 100 10 35 90 61 20 - 150 M100U120 3.40 SLNB12-100 A 100 12 42 100 71 22.5 - 150 M120U140 3.40 SLNB16-100 A 100 16 48 100 71 24 - 150 M140U160 3.80 SLNB20-110 A 100 20 52 110 81 25 - 160 M160U250 3.90 SLNB25-120 B 100 25 65 120 91 24 22 170 M180Z160P 4.00 SLNB32-120 B 100 32 72 120 91 24 24 170 M200Z200P 4.10 HSK-A-MTA Morse Taper Adapter HSK-A-MTAJIstii Tim ( ifsISM ) 0 mm Specification D di d2 Li l 2 l 3 L Weight HSK50A- MTA1-100 50 25 12.065 100 74 56 125 1.50 MTA2-120 50 32 17.780 120 94 67 145 1.80 MTA3-140 50 40 23.825 140 114 84 165 1.90 HSK63A- MTA1-100 63 25 12.065 100 74 56 132 1.90 MTA2-120 63 32 17.780 120 94 67 152 2.00 MTA3-140 63 40 23.825 140 114 84 172 2.20 MTA4-160 63 48 31.267 160 134 107 192 2.50 HSKIOOA- MTA1-110 100 25 12.065 110 81 56 160 3.40 MTA2-120 100 32 17.780 120 91 67 170 3.80 MTA3-150 100 40 23.825 150 121 84 200 4.00 MTA4-170 100 48 31.267 170 141 107 220 4.60 MTA5-200 100 63 44.299 200 171 135 250 5.20 Biia n DEREK
