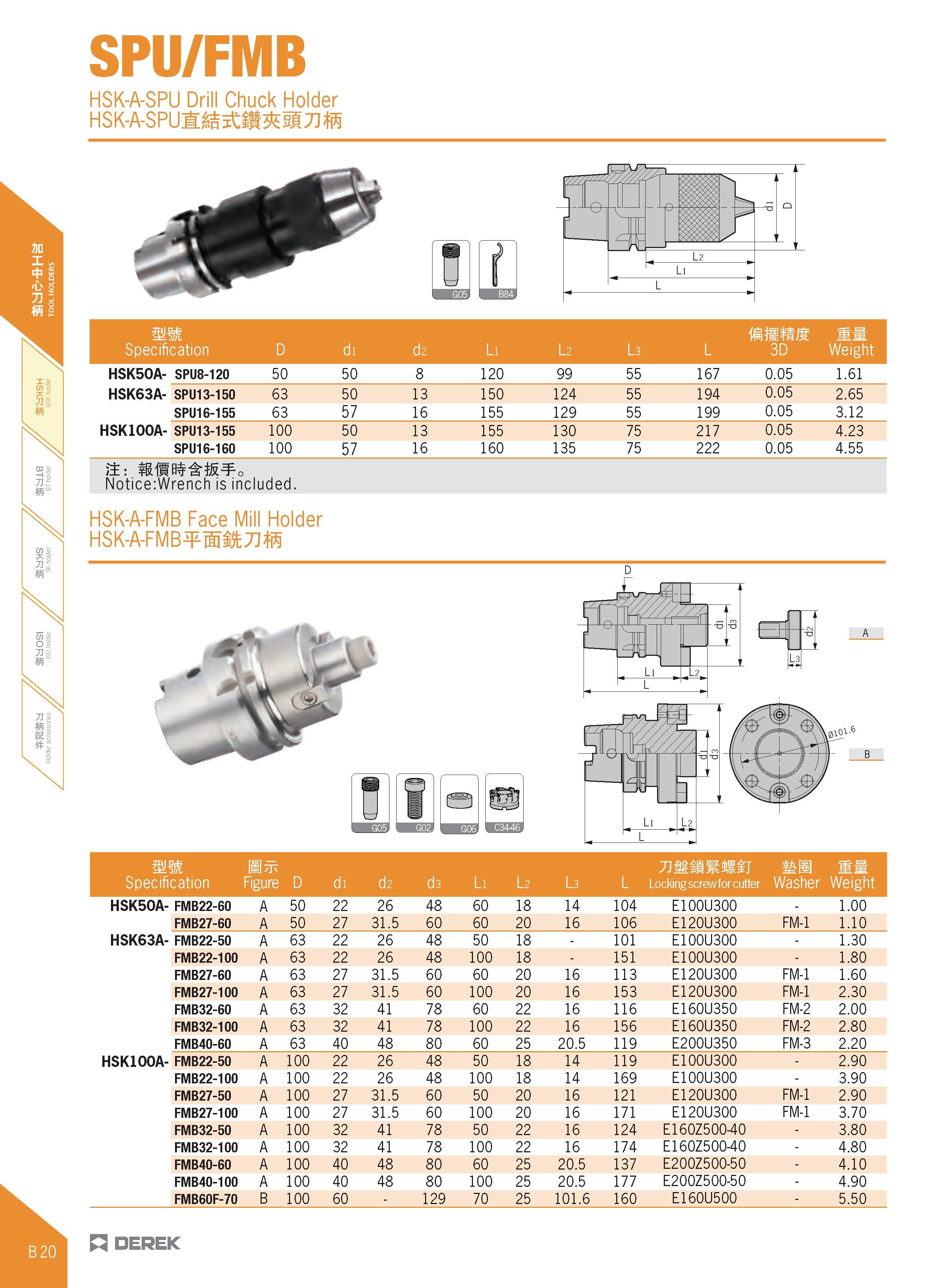

SPU/FMB HSK-A-SPU Drill Chuck Holder HSK-A-SPUl; 5t sl7Iffi 0 mm Specification D di d2 Li l 2 l 3 L 3D Weight HSK50A- SPU8-120 50 50 8 120 99 55 167 0.05 1.61 HSK63A- SPU13-150 63 50 13 150 124 55 194 0.05 2.65 SPU16-155 63 57 16 155 129 55 199 0.05 3.12 HSKIOOA- SPU13-155 100 50 13 155 130 75 217 0.05 4.23 SPU16-160 100 57 16 160 135 75 222 0.05 4.55 j±: Notice:Wrench is included. HSK-A-FMB Face Mill Holder HSK-A-FMB¥ kJJfli l 3 mm Specification Bttc Figure D di d2 d3 Li l 2 l 3 L Lockingscrewfor cutter Washer Weight HSK50A- FMB22-60 A 50 22 26 48 60 18 14 104 E100U300 - 1.00 FMB27-60 A 50 27 31.5 60 60 20 16 106 E120U300 FM-1 1.10 HSK63A- FMB22-50 A 63 22 26 48 50 18 - 101 E100U300 - 1.30 FMB22-100 A 63 22 26 48 100 18 - 151 E100U300 - 1.80 FMB27-60 A 63 27 31.5 60 60 20 16 113 E120U300 FM-1 1.60 FMB27-100 A 63 27 31.5 60 100 20 16 153 E120U300 FM-1 2.30 FMB32-60 A 63 32 41 78 60 22 16 116 E160U350 FM-2 2.00 FMB32-100 A 63 32 41 78 100 22 16 156 E160U350 FM-2 2.80 FMB40-60 A 63 40 48 80 60 25 20.5 119 E200U350 FM-3 2.20 HSKIOOA- FMB22-50 A 100 22 26 48 50 18 14 119 E100U300 - 2.90 FMB22-100 A 100 22 26 48 100 18 14 169 E100U300 - 3.90 FMB27-50 A 100 27 31.5 60 50 20 16 121 E120U300 FM-1 2.90 FMB27-100 A 100 27 31.5 60 100 20 16 171 E120U300 FM-1 3.70 FMB32-50 A 100 32 41 78 50 22 16 124 E160Z500-40 - 3.80 FMB32-100 A 100 32 41 78 100 22 16 174 E160Z500-40 - 4.80 FMB40-60 A 100 40 48 80 60 25 20.5 137 E200Z500-50 - 4.10 FMB40-100 A 100 40 48 80 100 25 20.5 177 E200Z500-50 - 4.90 FMB60F-70 B 100 60 - 129 70 25 101.6 160 E160U500 - 5.50 n DEREK
