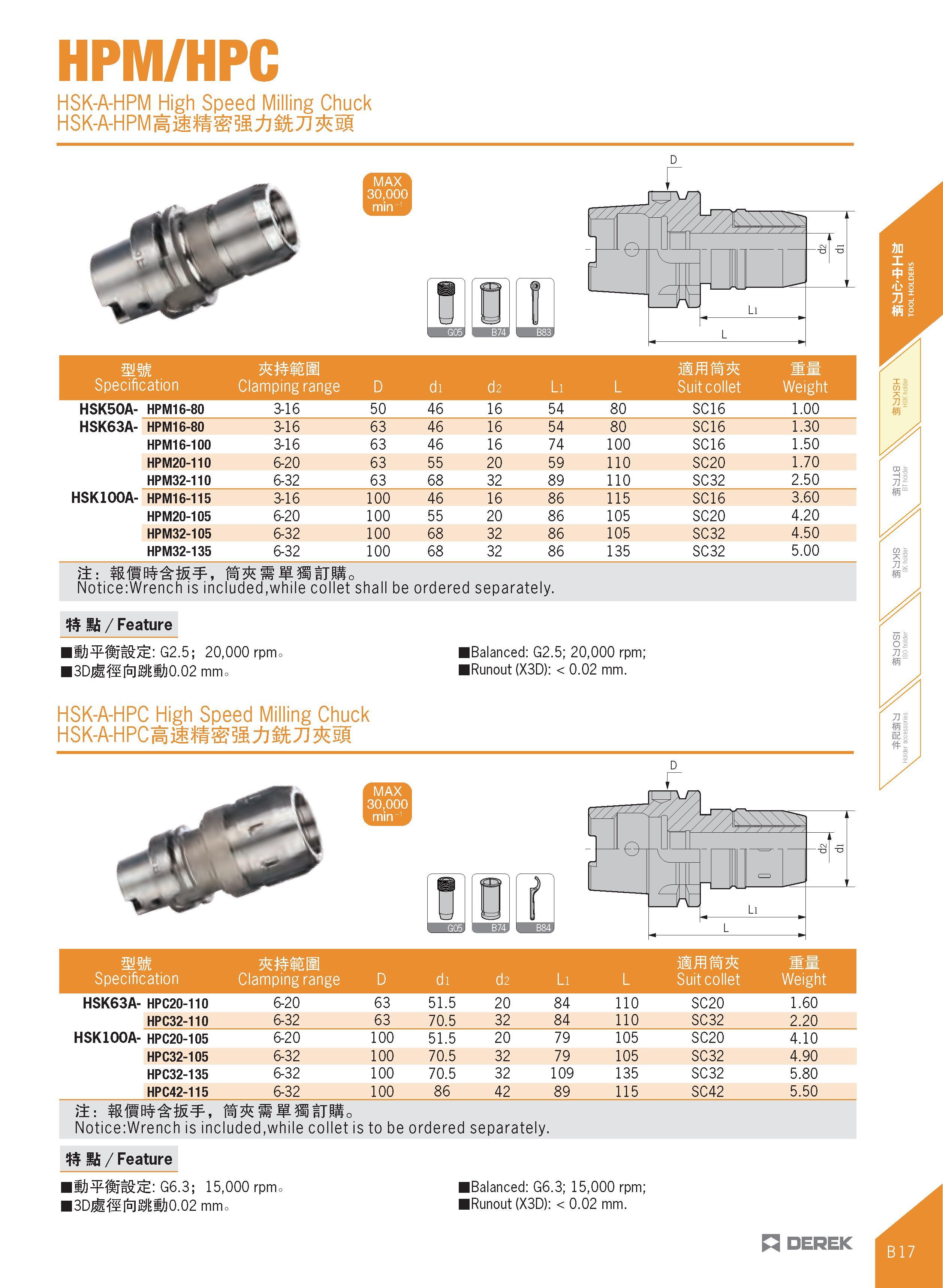

HPM/HPC HSK-A-HPM High Speed Milling Chuck HSK-A-HPMMft M itTJ sI msm 0 r J- r 4 t Li L mm Specification Clamping range D di d2 Li L Suit collet Weight HSK50A- HPM16-80 3-16 50 46 16 54 80 SC16 1.00 HSK63A- HPM16-80 3-16 63 46 16 54 80 SC16 1.30 HPM16-100 3-16 63 46 16 74 100 SC16 1.50 HPM20-110 6-20 63 55 20 59 110 SC20 1.70 HPM32-110 6-32 63 68 32 89 110 SC32 2.50 HSK100A- HPM16-115 3-16 100 46 16 86 115 SC16 3.60 HPM20-105 6-20 100 55 20 86 105 SC20 4.20 HPM32-105 6-32 100 68 32 86 105 SC32 4.50 HPM32-135 6-32 100 68 32 86 135 SC32 5.00 jit: 1x111 1TI1 Notice:Wrench is included,while collet shall be ordered separately. : £ / Feature G2.5; 20,000 rpmo 3Djt MS)0.02 mm. iBalanced: G2.5; 20,000 rpm; iRunout (X3D): < 0.02 mm. HSK-A-HPC High Speed Milling Chuck HSK-A-HPCMft M itTJ&sI D r msm 0 h; J- r 4 Li L mm Specification Si III Clamping range D di d2 Li L Suit collet Weight HSK63A- HPC20-110 6-20 63 51.5 20 84 110 SC20 1.60 HPC32-110 6-32 63 70.5 32 84 110 SC32 2.20 HSK100A- HPC20-105 6-20 100 51.5 20 79 105 SC20 4.10 HPC32-105 6-32 100 70.5 32 79 105 SC32 4.90 HPC32-135 6-32 100 70.5 32 109 135 SC32 5.80 HPC42-115 6-32 100 86 42 89 115 SC42 5.50 j±: Notice:Wrench is included,while collet is to be ordered separately. S IS / Feature G6.3; 15,000 rpmo 3DjtfeMS)0.02 mm. IBalanced: G6.3; 15,000 rpm; IRunout (X3D): < 0.02 mm. DEREK
