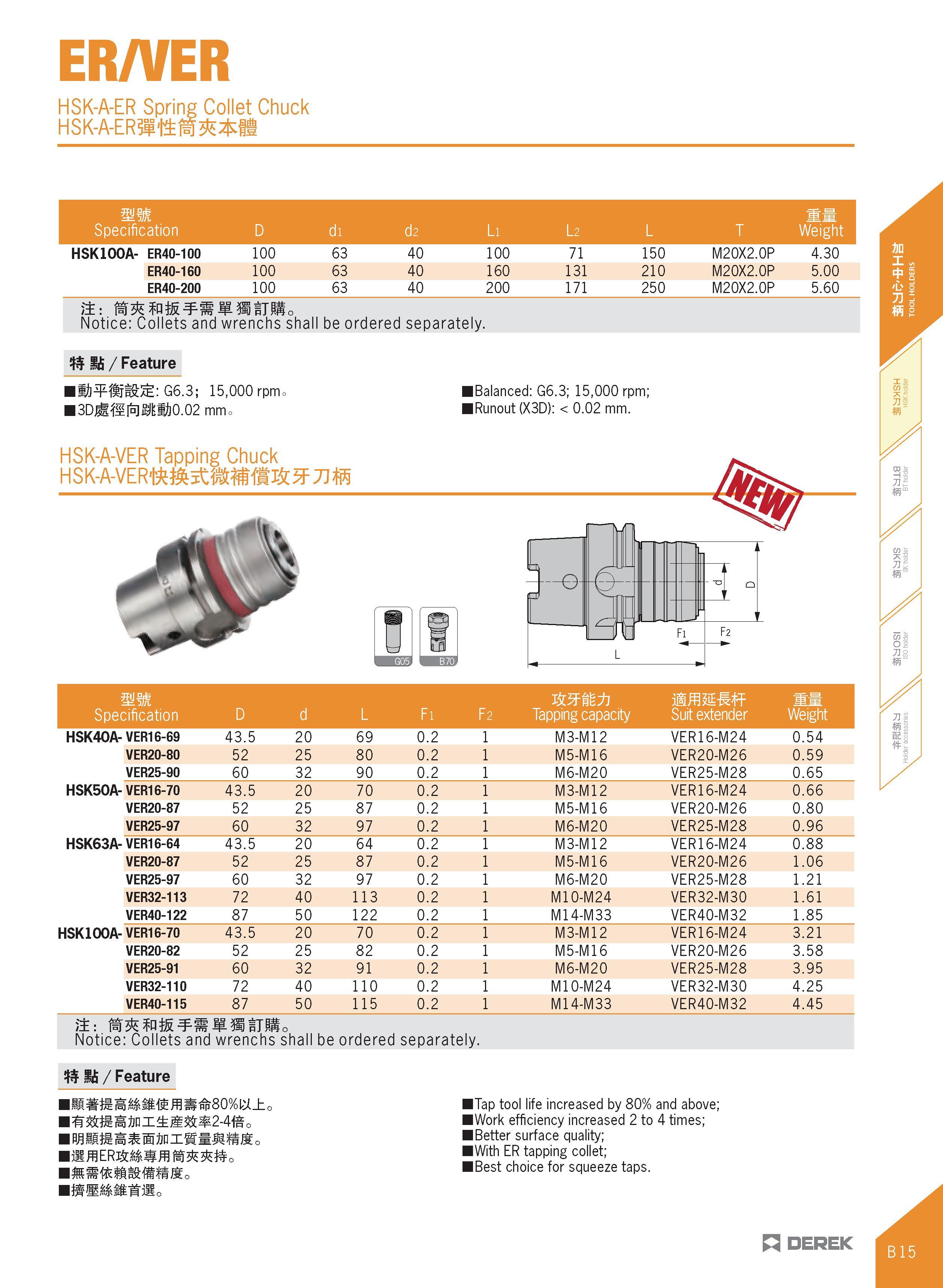

127 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B15

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B15 0127 Lab2u

ER/VER HSK-A-ER Spring Collet Chuck HSK-A-ERSittM fl mm Specification D di d2 Li l 2 L T Weight 1 HSKIOOA- ER40-100 100 63 40 100 71 150 M20X2.0P 4.30 ER40-160 100 63 40 160 131 210 M20X2.0P 5.00 ER40-200 100 63 40 200 171 250 M20X2.0P 5.60 jit: M 4 D Wi to liTIl Notice: Collets and wrenchs shall be ordered separately. : £ / Feature S)¥iil£ : G6.3; 15,000 rpmc 3Djt MS)0.02 mm. iBalanced: G6.3; 15,000 rpm; iRunout (X3D): < 0.02 mm. HSK-A-VER Tapping Chuck HSK-AVERtt&aaffifltJ&5f7J 5 0 mm Specification D d L Fi F2 T&&W Tapping capacity Suit extender Weight HSK40A- VER16-69 43.5 20 69 0.2 1 M3-M12 VER16-M24 0.54 VER20-80 52 25 80 0.2 1 M5-M16 VER20-M26 0.59 VER25-90 60 32 90 0.2 1 M6-M20 VER25-M28 0.65 HSK50A- VER16-70 43.5 20 70 0.2 1 M3-M12 VER16-M24 0.66 VER20-87 52 25 87 0.2 1 M5-M16 VER20-M26 0.80 VER25-97 60 32 97 0.2 1 M6-M20 VER25-M28 0.96 HSK63A- VER16-64 43.5 20 64 0.2 1 M3-M12 VER16-M24 0.88 VER20-87 52 25 87 0.2 1 M5-M16 VER20-M26 1.06 VER25-97 60 32 97 0.2 1 M6-M20 VER25-M28 1.21 VER32-113 72 40 113 0.2 1 M10-M24 VER32-M30 1.61 VER40-122 87 50 122 0.2 1 M14-M33 VER40-M32 1.85 HSKIOOA- VER16-70 43.5 20 70 0.2 1 M3-M12 VER16-M24 3.21 VER20-82 52 25 82 0.2 1 M5-M16 VER20-M26 3.58 VER25-91 60 32 91 0.2 1 M6-M20 VER25-M28 3.95 VER32-110 72 40 110 0.2 1 M10-M24 VER32-M30 4.25 VER40-115 87 50 115 0.2 1 M14-M33 VER40-M32 4.45 ft: Notice: Collets and wrenchs shall be ordered separately. S li / Feature te tt S np 8 0 % W t o m IKAni£j£& 2-4teo I RE HtH Si in iSsHfifi o ITap tool life increased by 80% and above; IWork efficiency increased 2 to 4 times; I Better surface quality; IWith ER tapping collet; I Best choice for squeeze taps. DEREK
