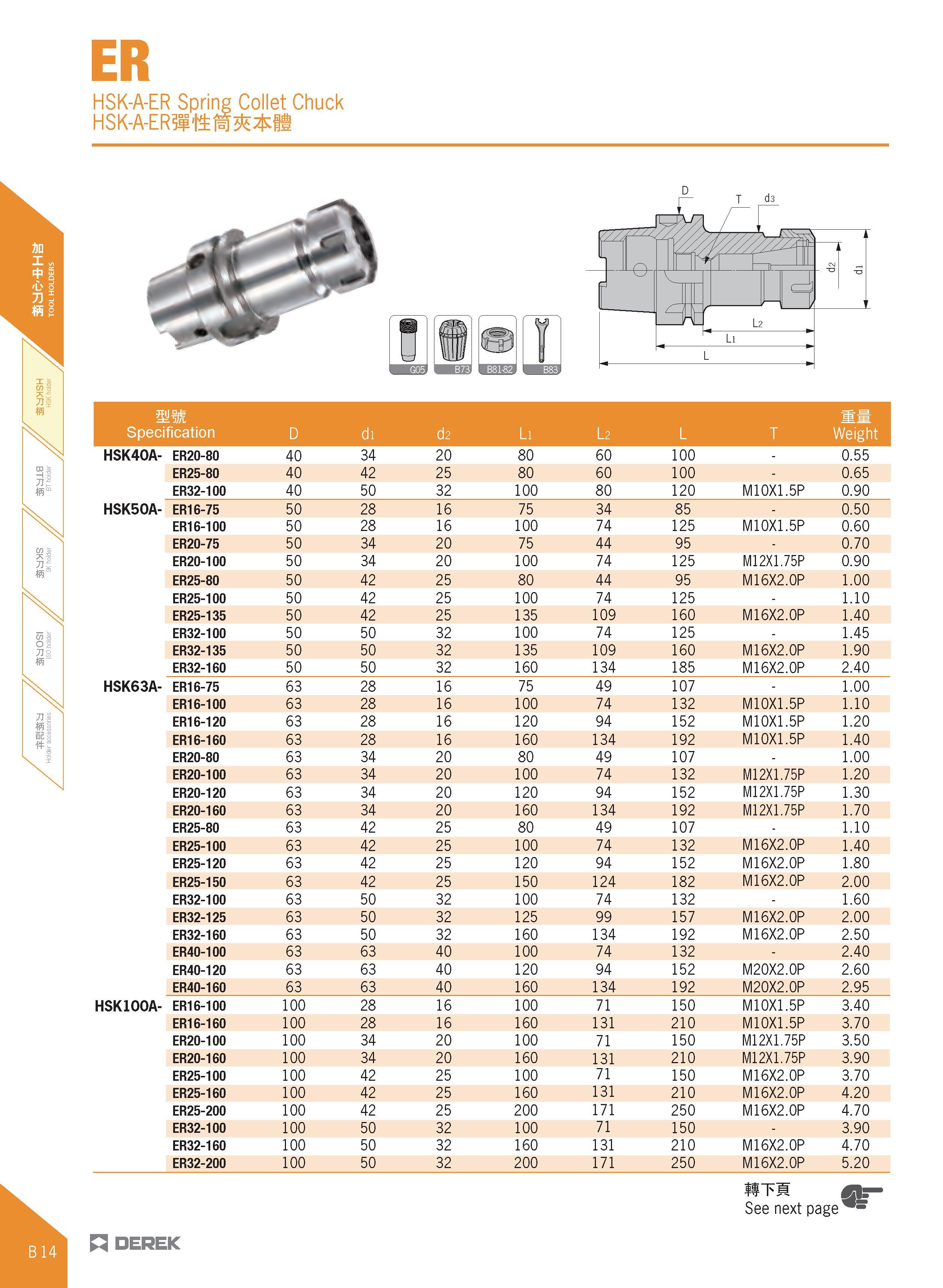

ER HSK-A-ER Spring Collet Chuck HSK-A-ER ittlf il 0 - mm Specification D di d2 Li l 2 L T Weight HSK40A- ER20-80 40 34 20 80 60 100 - 0.55 ER25-80 40 42 25 80 60 100 - 0.65 ER32-100 40 50 32 100 80 120 M10X1.5P 0.90 HSK50A- ER16-75 50 28 16 75 34 85 - 0.50 ER16-100 50 28 16 100 74 125 M10X1.5P 0.60 ER20-75 50 34 20 75 44 95 - 0.70 ER20-100 50 34 20 100 74 125 M12X1.75P 0.90 ER25-80 50 42 25 80 44 95 M16X2.0P 1.00 ER25-100 50 42 25 100 74 125 - 1.10 ER25-135 50 42 25 135 109 160 M16X2.0P 1.40 ER32-100 50 50 32 100 74 125 - 1.45 ER32-135 50 50 32 135 109 160 M16X2.0P 1.90 ER32-160 50 50 32 160 134 185 M16X2.0P 2.40 HSK63A- ER16-75 63 28 16 75 49 107 - 1.00 ER16-100 63 28 16 100 74 132 M10X1.5P 1.10 ER16-120 63 28 16 120 94 152 M10X1.5P 1.20 ER16-160 63 28 16 160 134 192 M10X1.5P 1.40 ER20-80 63 34 20 80 49 107 - 1.00 ER20-100 63 34 20 100 74 132 M12X1.75P 1.20 ER20-120 63 34 20 120 94 152 M12X1.75P 1.30 ER20-160 63 34 20 160 134 192 M12X1.75P 1.70 ER25-80 63 42 25 80 49 107 - 1.10 ER25-100 63 42 25 100 74 132 M16X2.0P 1.40 ER25-120 63 42 25 120 94 152 M16X2.0P 1.80 ER25-150 63 42 25 150 124 182 M16X2.0P 2.00 ER32-100 63 50 32 100 74 132 - 1.60 ER32-125 63 50 32 125 99 157 M16X2.0P 2.00 ER32-160 63 50 32 160 134 192 M16X2.0P 2.50 ER40-100 63 63 40 100 74 132 - 2.40 ER40-120 63 63 40 120 94 152 M20X2.0P 2.60 ER40-160 63 63 40 160 134 192 M20X2.0P 2.95 HSK100A- ER16-100 100 28 16 100 71 150 M10X1.5P 3.40 ER16-160 100 28 16 160 131 210 M10X1.5P 3.70 ER20-100 100 34 20 100 71 150 M12X1.75P 3.50 ER20-160 100 34 20 160 131 210 M12X1.75P 3.90 ER25-100 100 42 25 100 71 150 M16X2.0P 3.70 ER25-160 100 42 25 160 131 210 M16X2.0P 4.20 ER25-200 100 42 25 200 171 250 M16X2.0P 4.70 ER32-100 100 50 32 100 71 150 - 3.90 ER32-160 100 50 32 160 131 210 M16X2.0P 4.70 ER32-200 100 50 32 200 171 250 M16X2.0P 5.20 WTlt fflj-See next page H DEREK
