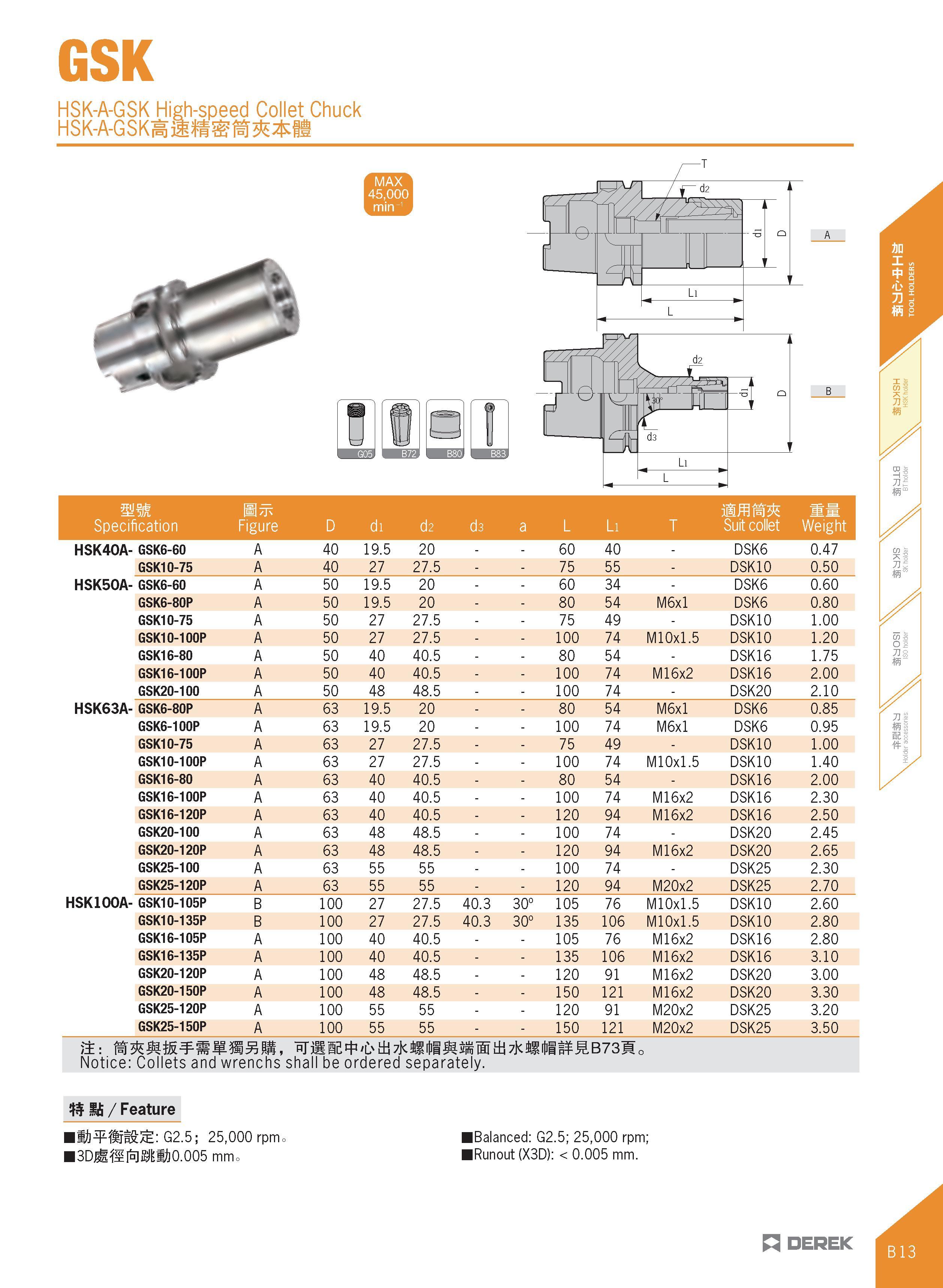

GSK HSK-A-GSK High-speed Collet Chuck HSK-A-GSK llS M il n o mm Specification Figure D di d2 d3 a L Li T Suit collet Weight 1 HSK40A- GSK6-60 A 40 19.5 20 60 40 - DSK6 0.47 GSK10-75 A 40 27 27.5 75 55 - DSK10 0.50 HSK50A- GSK6-60 A 50 19.5 20 60 34 - DSK6 0.60 GSK6-80P A 50 19.5 20 80 54 M6xl DSK6 0.80 GSK10-75 A 50 27 27.5 75 49 - DSK10 1.00 GSK10-100P A 50 27 27.5 100 74 M10xl.5 DSK10 1.20 GSK16-80 A 50 40 40.5 80 54 - DSK16 1.75 GSK16-100P A 50 40 40.5 100 74 Ml 6x2 DSK16 2.00 GSK20-100 A 50 48 48.5 100 74 - DSK20 2.10 HSK63A- GSK6-80P A 63 19.5 20 80 54 M6xl DSK6 0.85 GSK6-100P A 63 19.5 20 100 74 M6xl DSK6 0.95 GSK10-75 A 63 27 27.5 75 49 - DSK10 1.00 GSK10-100P A 63 27 27.5 100 74 M10xl.5 DSK10 1.40 GSK16-80 A 63 40 40.5 80 54 - DSK16 2.00 GSK16-100P A 63 40 40.5 100 74 Ml 6x2 DSK16 2.30 GSK16-120P A 63 40 40.5 120 94 Ml 6x2 DSK16 2.50 GSK20-100 A 63 48 48.5 100 74 - DSK20 2.45 GSK20-120P A 63 48 48.5 120 94 Ml 6x2 DSK20 2.65 GSK25-100 A 63 55 55 100 74 - DSK25 2.30 GSK25-120P A 63 55 55 120 94 M20x2 DSK25 2.70 HSK100A- GSK10-105P B 100 27 27.5 40.3 30° 105 76 M10xl.5 DSK10 2.60 GSK10-135P B 100 27 27.5 40.3 30° 135 106 M10xl.5 DSK10 2.80 GSK16-105P A 100 40 40.5 105 76 Ml 6x2 DSK16 2.80 GSK16-135P A 100 40 40.5 135 106 Ml 6x2 DSK16 3.10 GSK20-120P A 100 48 48.5 120 91 Ml 6x2 DSK20 3.00 GSK20-150P A 100 48 48.5 150 121 Ml 6x2 DSK20 3.30 GSK25-120P A 100 55 55 120 91 M20x2 DSK25 3.20 GSK25-150P A 100 55 55 150 121 M20x2 DSK25 3.50 Notice: Collets and wrenchs shall be ordered separately. Ss¥MB73Jt O : £ / Feature G2.5; 25,000 rpmo BBalanced: G2.5; 25,000 rpm; 3DJ MS)0.005 mm. Runout (X3D): < 0.005 mm. DEREK
