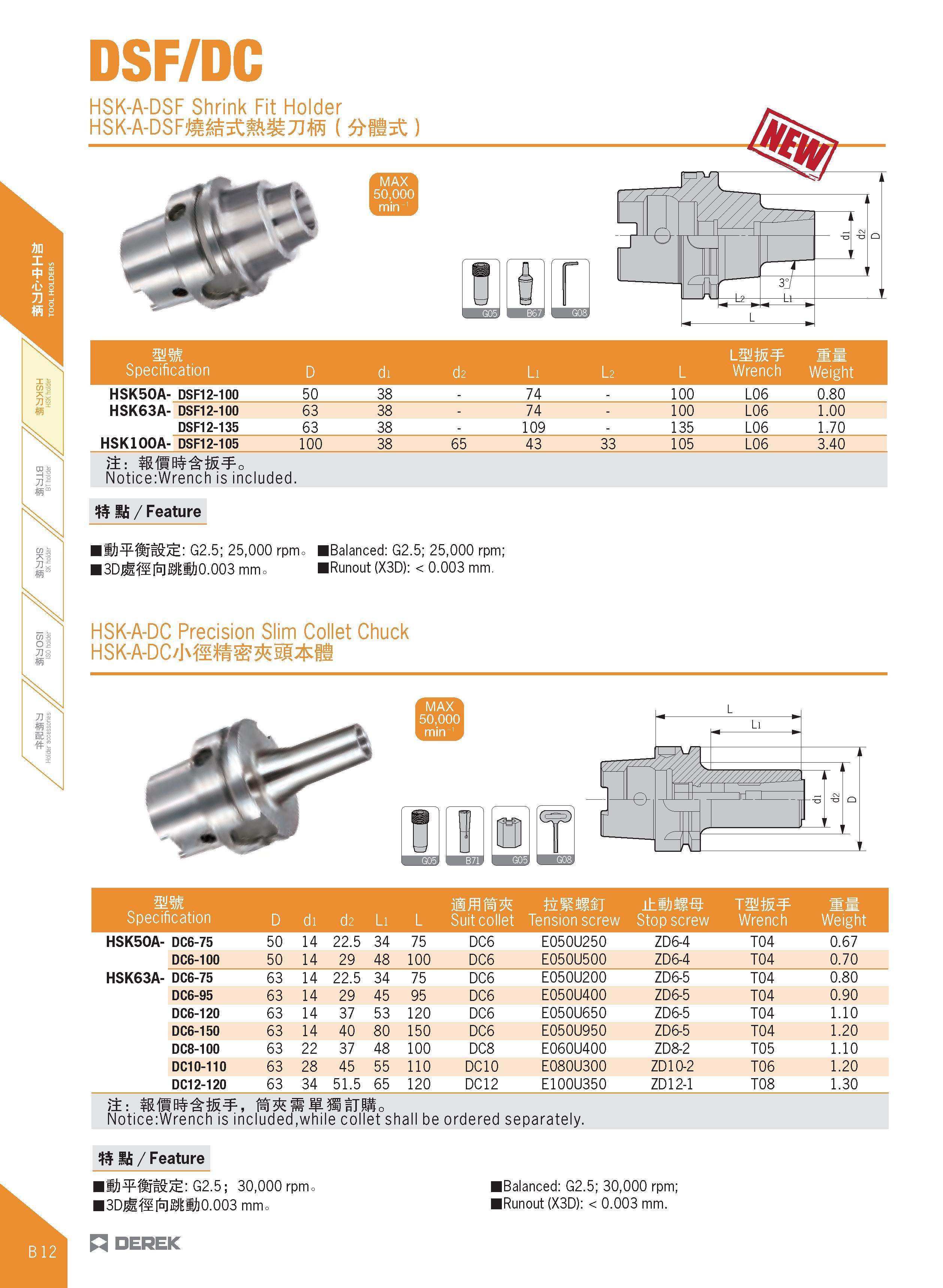

Cfl-g OI 7J8 DSF/DC mm Specification D di 62 Li l 2 L mw Wrench Weight HSK50A- DSF12-100 50 38 - 74 - 100 L06 0.80 HSK63A- DSF12-100 63 38 - 74 - 100 L06 1.00 DSF12-135 63 38 - 109 - 135 L06 1.70 HSK100A- DSF12-105 100 38 65 43 33 105 L06 3.40 it: Notice:Wrench is included. S ifi / Feature G2.5; 25,000 rprrio BBalanced: G2.5; 25,000 rpm; 3Djfi fr l-JS j0.003 mm. BRunout (X3D): < 0.003 mm. HSK-A-DC Precision Slim Collet Chuck HSK-A-DC/Mlft sI;fcf Mill 0 mm Specification D di d2 Li L Suit collet Tension screw Stop screw Tlfif Wrench Weight HSK50A- DC6-75 50 14 22.5 34 75 DC6 E050U250 ZD6-4 T04 0.67 DC6-100 50 14 29 48 100 DC6 E050U500 ZD6-4 T04 0.70 HSK63A- DC6-75 63 14 22.5 34 75 DC6 E050U200 ZD6-5 T04 0.80 DC6-95 63 14 29 45 95 DC6 E050U400 ZD6-5 T04 0.90 DC6-120 63 14 37 53 120 DC6 E050U650 ZD6-5 T04 1.10 DC6-150 63 14 40 80 150 DC6 E050U950 ZD6-5 T04 1.20 DC8-100 63 22 37 48 100 DC8 E060U400 ZD8-2 T05 1.10 DC10-110 63 28 45 55 110 DC10 E080U300 ZD 10-2 T06 1.20 DC12-120 63 34 51.5 65 120 DC12 E100U350 ZD 12-1 T08 1.30 it: W MbTIMo Notice:Wrench is included,while collet shall be ordered separately. G2.5; 30,000 rpmo BBalanced: G2.5; 30,000 rpm; 3DJ MS)0.003 mm. BRunout (X3D): < 0.003 mm. H DEREK
