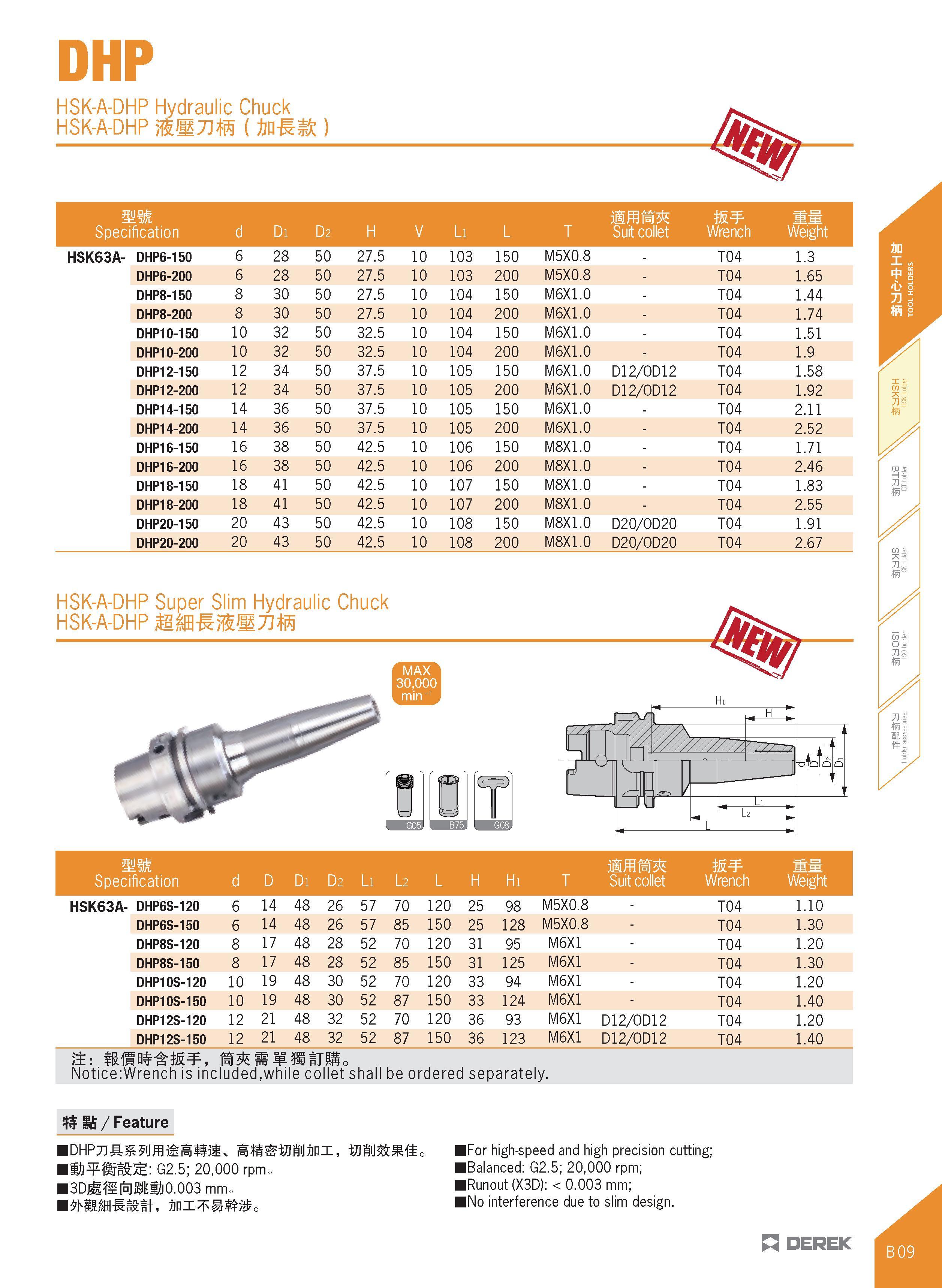

DHP HSK-A-DHP Hydraulic Chuck HSK-A-DHP ) mm Specification d Di D2 H V Li L T Suit collet W Wrench Ww Weight HSK63A- DHP6-150 6 28 50 27.5 10 103 150 M5X0.8 - T04 1.3 DHP6-200 6 28 50 27.5 10 103 200 M5X0.8 - T04 1.65 DHP8-150 8 30 50 27.5 10 104 150 M6X1.0 - T04 1.44 DHP8-200 8 30 50 27.5 10 104 200 M6X1.0 - T04 1.74 DHP10-150 10 32 50 32.5 10 104 150 M6X1.0 - T04 1.51 DHP10-200 10 32 50 32.5 10 104 200 M6X1.0 - T04 1.9 DHP12-150 12 34 50 37.5 10 105 150 M6X1.0 D12/OD12 T04 1.58 DHP12-200 12 34 50 37.5 10 105 200 M6X1.0 D12/OD12 T04 1.92 DHP14-150 14 36 50 37.5 10 105 150 M6X1.0 - T04 2.11 DHP14-200 14 36 50 37.5 10 105 200 M6X1.0 - T04 2.52 DHP16-150 16 38 50 42.5 10 106 150 M8X1.0 - T04 1.71 DHP16-200 16 38 50 42.5 10 106 200 M8X1.0 - T04 2.46 DHP18-150 18 41 50 42.5 10 107 150 M8X1.0 - T04 1.83 DHP18-200 18 41 50 42.5 10 107 200 M8X1.0 - T04 2.55 DHP20-150 20 43 50 42.5 10 108 150 M8X1.0 D20/OD20 T04 1.91 DHP20-200 20 43 50 42.5 10 108 200 M8X1.0 D20/QD20 T04 2.67 HSK-A-DHP Super Slim Hydraulic Chuck HSK-A-DHP iiinnni mm Specification d D Di D2 Li l 2 L H Hi T Suit collet W Wrench Ww Weight HSK63A- DHP6S-120 6 14 48 26 57 70 120 25 98 M5X0.8 - T04 1.10 DHP6S-150 6 14 48 26 57 85 150 25 128 M5X0.8 - T04 1.30 DHP8S-120 8 17 48 28 52 70 120 31 95 M6X1 - T04 1.20 DHP8S-150 8 17 48 28 52 85 150 31 125 M6X1 - T04 1.30 DHP10S-120 10 19 48 30 52 70 120 33 94 M6X1 - T04 1.20 DHP10S-150 10 19 48 30 52 87 150 33 124 M6X1 - T04 1.40 DHP12S-120 12 21 48 32 52 70 120 36 93 M6X1 D12/OD12 T04 1.20 DHP12S-150 12 21 48 32 52 87 150 36 123 M6X1 D12/OD12 T04 1.40 jit: 1x111TO 1TI1 Notice:Wrench is included,while collet shall be ordered separately. A tJ)SJ£>t:S'f±o BFor high-speed and high precision cutting; G2.5; 20,000 rpmo BBalanced: G2.5; 20,000 rpm; 13DjS fr011)0.003 mm. BRunout (X3D): < 0.003 mm; l£M SU -16£f+, BNo interference due to slim design. R DEREK
