120 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B08

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B08 0120 Lab2u

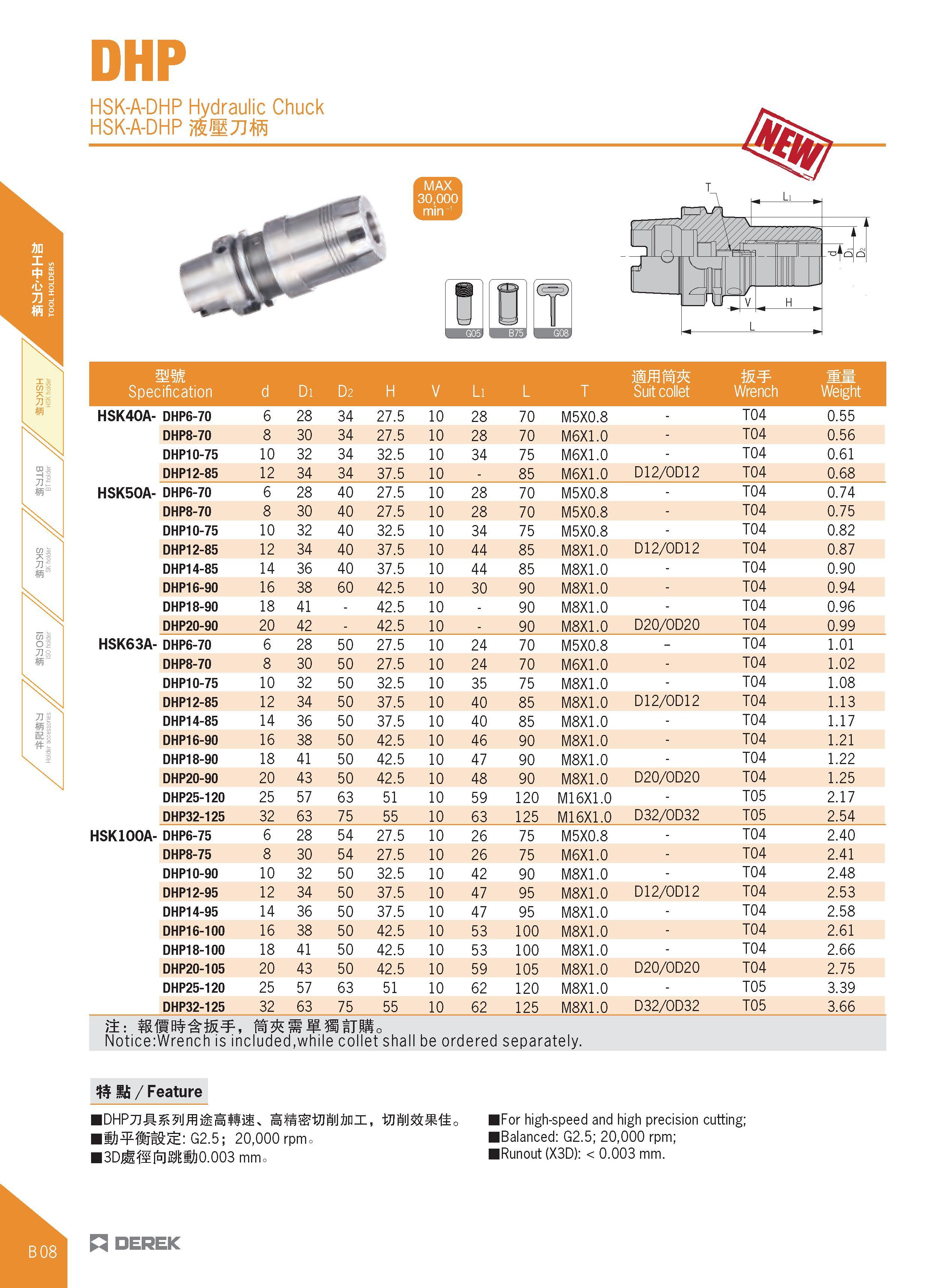

DHP HSK-A-DHP Hydraulic Chuck HSK-A-DHP 0 mm Specification d Di D2 H V Li L T Suit collet W Wrench Ww Weight HSK40A- DHP6-70 6 28 34 27.5 10 28 70 M5X0.8 - T04 0.55 DHP8-70 8 30 34 27.5 10 28 70 M6X1.0 - T04 0.56 DHP10-75 10 32 34 32.5 10 34 75 M6X1.0 - T04 0.61 DHP12-85 12 34 34 37.5 10 - 85 M6X1.0 D12/OD12 T04 0.68 HSK50A- DHP6-70 6 28 40 27.5 10 28 70 M5X0.8 - T04 0.74 DHP8-70 8 30 40 27.5 10 28 70 M5X0.8 - T04 0.75 DHP10-75 10 32 40 32.5 10 34 75 M5X0.8 - T04 0.82 DHP12-85 12 34 40 37.5 10 44 85 M8X1.0 D12/OD12 T04 0.87 DHP14-85 14 36 40 37.5 10 44 85 M8X1.0 - T04 0.90 DHP16-90 16 38 60 42.5 10 30 90 M8X1.0 - T04 0.94 DHP18-90 18 41 - 42.5 10 - 90 M8X1.0 - T04 0.96 DHP20-90 20 42 - 42.5 10 - 90 M8X1.0 D20/OD20 T04 0.99 HSK63A- DHP6-70 6 28 50 27.5 10 24 70 M5X0.8 - T04 1.01 DHP8-70 8 30 50 27.5 10 24 70 M6X1.0 - T04 1.02 DHP10-75 10 32 50 32.5 10 35 75 M8X1.0 - T04 1.08 DHP12-85 12 34 50 37.5 10 40 85 M8X1.0 D12/OD12 T04 1.13 DHP14-85 14 36 50 37.5 10 40 85 M8X1.0 - T04 1.17 DHP16-90 16 38 50 42.5 10 46 90 M8X1.0 - T04 1.21 DHP18-90 18 41 50 42.5 10 47 90 M8X1.0 - T04 1.22 DHP20-90 20 43 50 42.5 10 48 90 M8X1.0 D20/OD20 T04 1.25 DHP25-120 25 57 63 51 10 59 120 M16X1.0 - T05 2.17 DHP32-125 32 63 75 55 10 63 125 M16X1.0 D32/0D32 T05 2.54 HSK100A- DHP6-75 6 28 54 27.5 10 26 75 M5X0.8 - T04 2.40 DHP8-75 8 30 54 27.5 10 26 75 M6X1.0 - T04 2.41 DHP10-90 10 32 50 32.5 10 42 90 M8X1.0 - T04 2.48 DHP12-95 12 34 50 37.5 10 47 95 M8X1.0 D12/OD12 T04 2.53 DHP14-95 14 36 50 37.5 10 47 95 M8X1.0 - T04 2.58 DHP16-100 16 38 50 42.5 10 53 100 M8X1.0 - T04 2.61 DHP18-100 18 41 50 42.5 10 53 100 M8X1.0 - T04 2.66 DHP20-105 20 43 50 42.5 10 59 105 M8X1.0 D20/OD20 T04 2.75 DHP25-120 25 57 63 51 10 62 120 M8X1.0 - T05 3.39 DHP32-125 32 63 75 55 10 62 125 M8X1.0 D32/0D32 T05 3.66 j±: Notice:Wrench is included,while . TRJ ilTIlo collet shall be ordered separately. 9 £ / Feature tJ)SJ£>t:S'f±o BFor high-speed and high precision cutting; G2.5; 20,000 rpmo BBalanced: G2.5; 20,000 rpm; 3DjS fr011)0.003 mm. BRunout (X3D): < 0.003 mm. H DEREK
