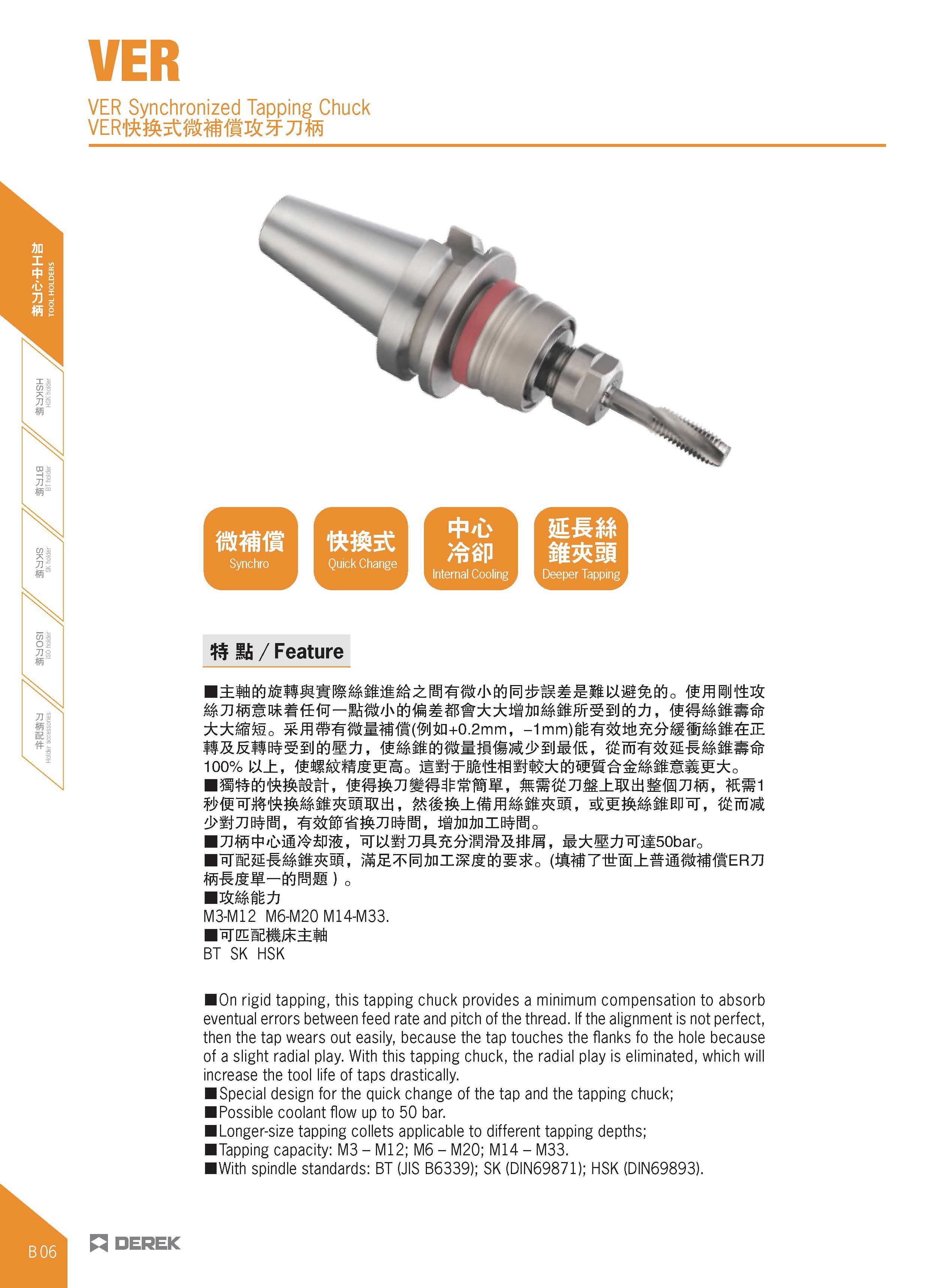

VER VER Synchronized Tapping Chuck Jf ,lfi / Feature ffl W Jtmffi i(' 5 .l£a+0.2mm, -1mm 100% w±, ffiSftifSMEo W if Jl3t PI; ;S.flEJS, ft : Bl3i50baro TCM&if&sf, (WTM± iiW ER7I ifjtu-siiHi) o mimM M3-M12 M6-M20 M14-M33. RTEiE ±Sl BT SK HSK On rigid tapping, this tapping chuck provides a minimum compensation to absorb eventual errors between feed rate and pitch of the thread. If the alignment is not perfect, then the tap wears out easily, because the tap touches the flanks fo the hole because of a slight radial play. With this tapping chuck, the radial play is eliminated, which will increase the tool life of taps drastically. Special design for the quick change of the tap and the tapping chuck; Possible coolant flow up to 50 bar. Longer-size tapping collets applicable to different tapping depths; Tapping capacity: M3 - M12; M6 - M20; M14 - M33. With spindle standards: BT (JIS B6339); SK (DIN69871); HSK (DIN69893). H DEREK
