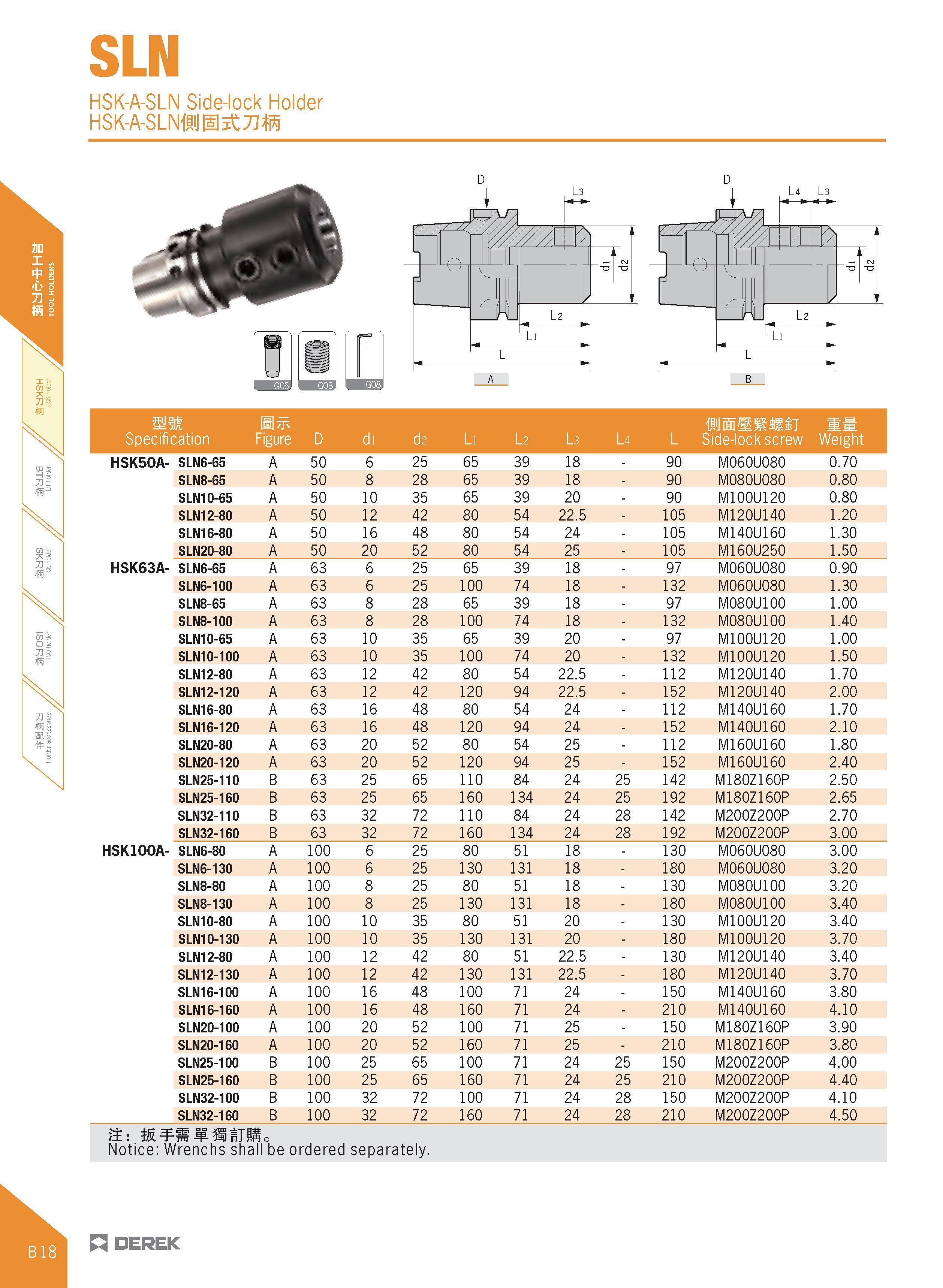

SLN HSK-A-SLN Side-lock Holder H S K-A-S L NfiJ HO it 7J IS mm Specification Bttc Figure D di d2 Li l 2 l 3 L4 L PJMlIlti.lfT Side-lock screw Weight HSK50A- SLN6-65 A 50 6 25 65 39 18 - 90 M060U080 0.70 SLN8-65 A 50 8 28 65 39 18 - 90 M080U080 0.80 SLN10-65 A 50 10 35 65 39 20 - 90 M100U120 0.80 SLN12-80 A 50 12 42 80 54 22.5 - 105 M120U140 1.20 SLN16-80 A 50 16 48 80 54 24 - 105 M140U160 1.30 SLN20-80 A 50 20 52 80 54 25 - 105 M160U250 1.50 HSK63A- SLN6-65 A 63 6 25 65 39 18 - 97 M060U080 0.90 SLN6-100 A 63 6 25 100 74 18 - 132 M060U080 1.30 SLN8-65 A 63 8 28 65 39 18 - 97 M080U100 1.00 SLN8-100 A 63 8 28 100 74 18 - 132 M080U100 1.40 SLN10-65 A 63 10 35 65 39 20 - 97 M100U120 1.00 SLN10-100 A 63 10 35 100 74 20 - 132 M100U120 1.50 SLN12-80 A 63 12 42 80 54 22.5 - 112 M120U140 1.70 SLN12-120 A 63 12 42 120 94 22.5 - 152 M120U140 2.00 SLN16-80 A 63 16 48 80 54 24 - 112 M140U160 1.70 SLN16-120 A 63 16 48 120 94 24 - 152 M140U160 2.10 SLN20-80 A 63 20 52 80 54 25 - 112 M160U160 1.80 SLN20-120 A 63 20 52 120 94 25 - 152 M160U160 2.40 SLN25-110 B 63 25 65 110 84 24 25 142 M180Z160P 2.50 SLN25-160 B 63 25 65 160 134 24 25 192 M180Z160P 2.65 SLN32-110 B 63 32 72 110 84 24 28 142 M200Z200P 2.70 SLN32-160 B 63 32 72 160 134 24 28 192 M200Z200P 3.00 HSKIOOA- SLN6-80 A 100 6 25 80 51 18 - 130 M060U080 3.00 SLN6-130 A 100 6 25 130 131 18 - 180 M060U080 3.20 SLN8-80 A 100 8 25 80 51 18 - 130 M080U100 3.20 SLN8-130 A 100 8 25 130 131 18 - 180 M080U100 3.40 SLN10-80 A 100 10 35 80 51 20 - 130 M100U120 3.40 SLN10-130 A 100 10 35 130 131 20 - 180 M100U120 3.70 SLN12-80 A 100 12 42 80 51 22.5 - 130 M120U140 3.40 SLN12-130 A 100 12 42 130 131 22.5 - 180 M120U140 3.70 SLN16-100 A 100 16 48 100 71 24 - 150 M140U160 3.80 SLN16-160 A 100 16 48 160 71 24 - 210 M140U160 4.10 SLN20-100 A 100 20 52 100 71 25 - 150 M180Z160P 3.90 SLN20-160 A 100 20 52 160 71 25 - 210 M180Z160P 3.80 SLN25-100 B 100 25 65 100 71 24 25 150 M200Z200P 4.00 SLN25-160 B 100 25 65 160 71 24 25 210 M200Z200P 4.40 SLN32-100 B 100 32 72 100 71 24 28 150 M200Z200P 4.10 SLN32-160 B 100 32 72 160 71 24 28 210 M200Z200P 4.50 j±: Notice: Wrenchs shall be ordered separately. n DEREK
