134 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B22

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B22 0134 Lab2u

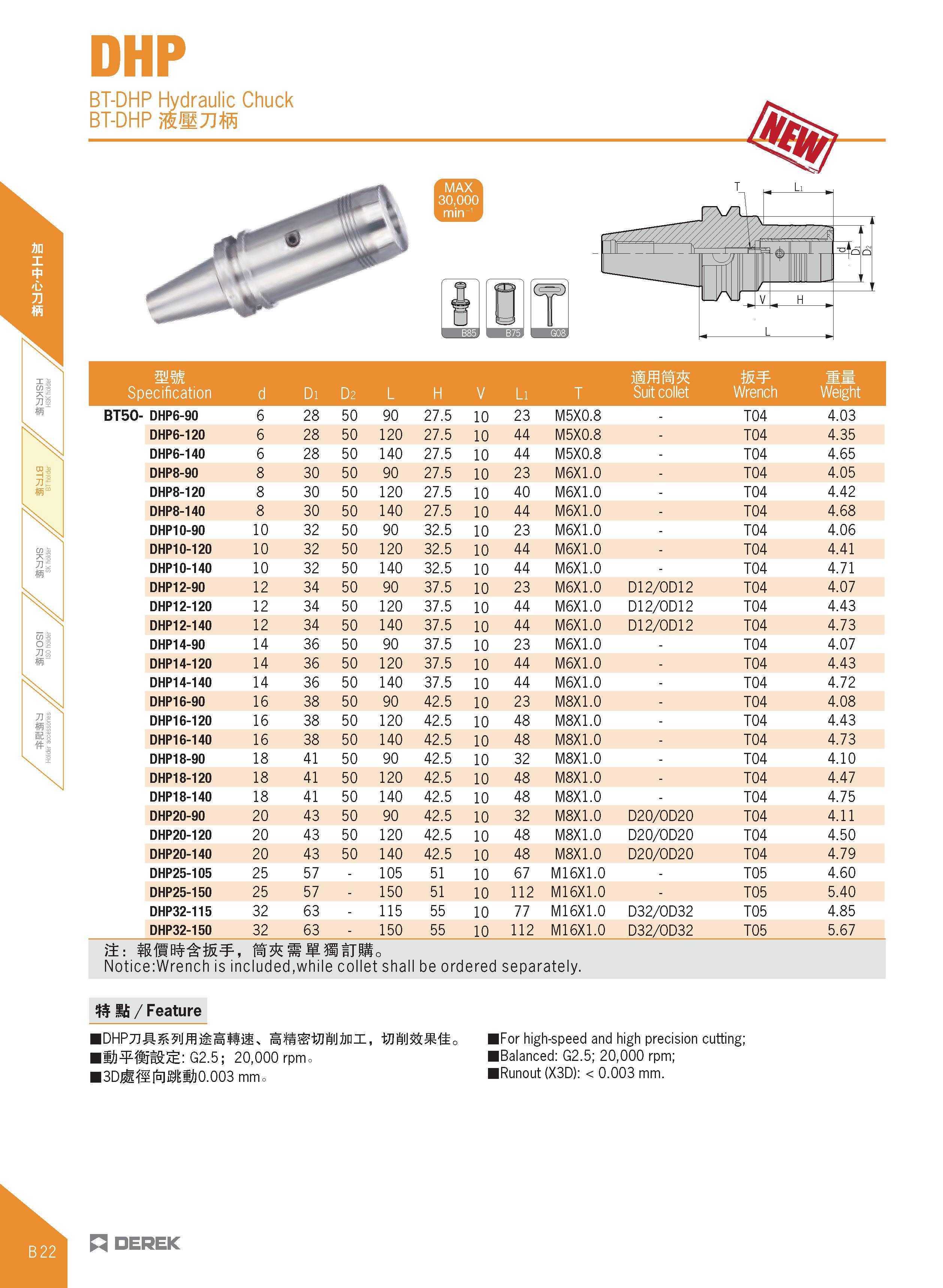

DHP BT-DHP Hydraulic Chuck bt-dhp mmTim mm Specification d Di D2 L H V Li T Suit collet Wrench Ww Weight BT50- DHP6-90 6 28 50 90 27.5 10 23 M5X0.8 - T04 4.03 DHP6-120 6 28 50 120 27.5 10 44 M5X0.8 - T04 4.35 DHP6-140 6 28 50 140 27.5 10 44 M5X0.8 - T04 4.65 DHP8-90 8 30 50 90 27.5 10 23 M6X1.0 - T04 4.05 DHP8-120 8 30 50 120 27.5 10 40 M6X1.0 - T04 4.42 DHP8-140 8 30 50 140 27.5 10 44 M6X1.0 - T04 4.68 DHP10-90 10 32 50 90 32.5 10 23 M6X1.0 - T04 4.06 DHP10-120 10 32 50 120 32.5 10 44 M6X1.0 - T04 4.41 DHP10-140 10 32 50 140 32.5 10 44 M6X1.0 - T04 4.71 DHP12-90 12 34 50 90 37.5 10 23 M6X1.0 D12/OD12 T04 4.07 DHP12-120 12 34 50 120 37.5 10 44 M6X1.0 D12/OD12 T04 4.43 DHP12-140 12 34 50 140 37.5 10 44 M6X1.0 D12/OD12 T04 4.73 DHP14-90 14 36 50 90 37.5 10 23 M6X1.0 - T04 4.07 DHP14-120 14 36 50 120 37.5 10 44 M6X1.0 - T04 4.43 DHP14-140 14 36 50 140 37.5 10 44 M6X1.0 - T04 4.72 DHP16-90 16 38 50 90 42.5 10 23 M8X1.0 - T04 4.08 DHP16-120 16 38 50 120 42.5 10 48 M8X1.0 - T04 4.43 DHP16-140 16 38 50 140 42.5 10 48 M8X1.0 - T04 4.73 DHP18-90 18 41 50 90 42.5 10 32 M8X1.0 - T04 4.10 DHP18-120 18 41 50 120 42.5 10 48 M8X1.0 - T04 4.47 DHP18-140 18 41 50 140 42.5 10 48 M8X1.0 - T04 4.75 DHP20-90 20 43 50 90 42.5 10 32 M8X1.0 D20/OD20 T04 4.11 DHP20-120 20 43 50 120 42.5 10 48 M8X1.0 D20/OD20 T04 4.50 DHP20-140 20 43 50 140 42.5 10 48 M8X1.0 D20/OD20 T04 4.79 DHP25-105 25 57 - 105 51 10 67 M16X1.0 - T05 4.60 DHP25-150 25 57 - 150 51 10 112 M16X1.0 - T05 5.40 DHP32-115 32 63 - 115 55 10 77 M16X1.0 D32/0D32 T05 4.85 DHP32-150 32 63 - 150 55 10 112 M16X1.0 D32/0D32 T05 5.67 j±: Notice:Wrench is included,while collet shall be ordered separately. : £ / Feature S)¥iil£ : G2.5; 20,000 rpmo 3DjS MS) 0.003 mm. iFor high-speed and high precision cutting; iBalanced: G2.5; 20,000 rpm; iRunout (X3D): < 0.003 mm. n DEREK
