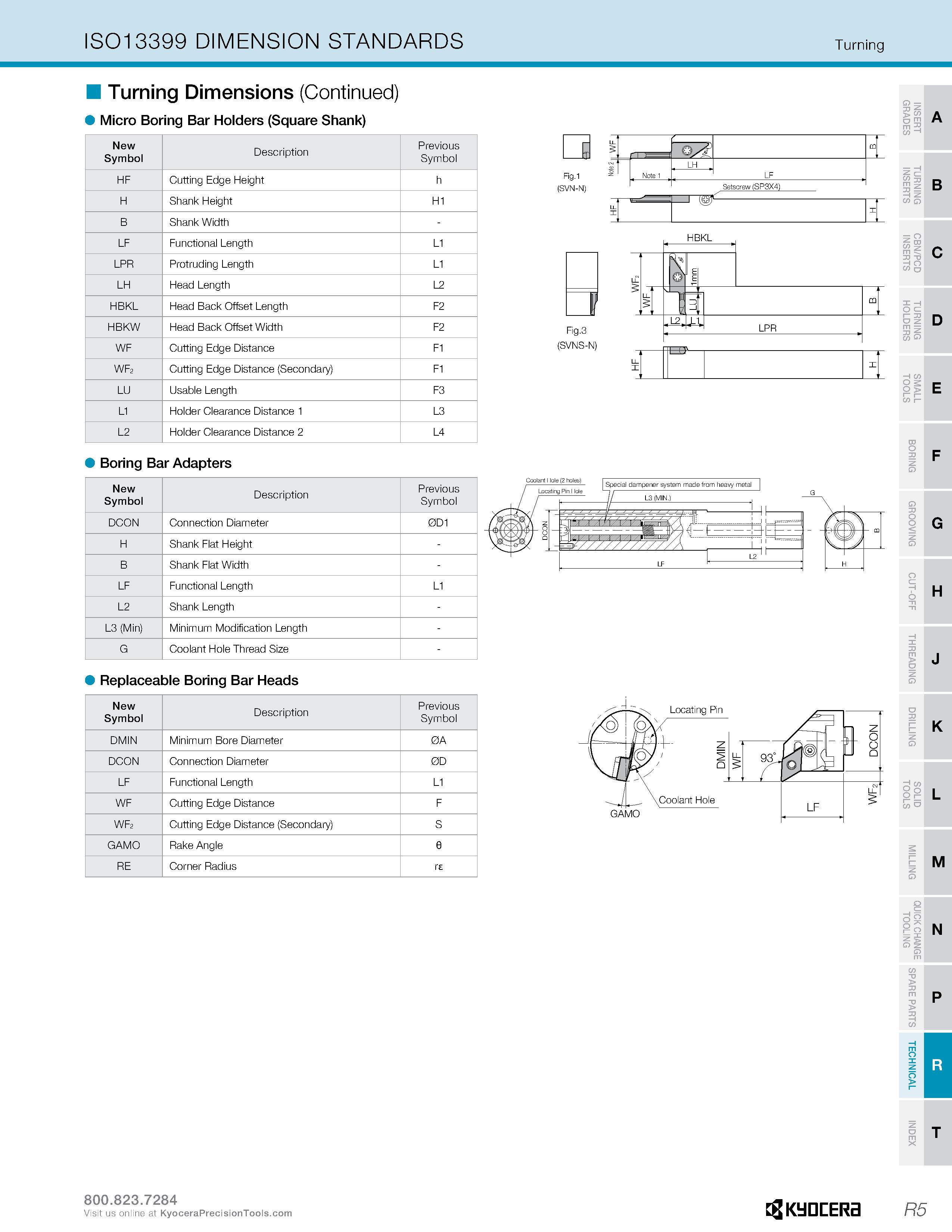

ISO 13399 cutting tool data Turning Dimensions (Continued) Micro Boring Bar Holders (Square Shank) New Symbol Description Previous Symbol _ HF Cutting Edge Height h H Shank Height H1 B Shank Width - LF Functional Length L1 LPR Protruding Length L1 LH Head Length L2 HBKL Head Back Offset Length F2 HBKW Head Back Offset Width F2 WF Cutting Edge Distance F1 wf2 Cutting Edge Distance (Secondary) F1 LU Usable Length F3 L1 Holder Clearance Distance 1 L3 L2 Holder Clearance Distance 2 L4 Boring Bar Adapters Replaceable Boring Bar Heads Fig-1 (SVN-N) Fig.3 (SVNS-N) F&- New Symbol Description Previous Symbol DCON Connection Diameter 0D1 H Shank Flat Height - B Shank Flat Width - LF Functional Length L1 L2 Shank Length - L3 (Min) Minimum Modification Length - G Coolant Hole Thread Size - Special dampener system made from heavy metal New Symbol Description Previous Symbol DMIN Minimum Bore Diameter OA DCON Connection Diameter OD LF Functional Length L1 WF Cutting Edge Distance F WF2 Cutting Edge Distance (Secondary) S GAMO Rake Angle e RE Corner Radius r £ 2 D 2 -f- it - V-J I LF h 2 O JD > £ m t OA' “I 1 H 1 Note 1 LF Setscrew (SP3X4) jj O cz -H o > o Q B o 33 z Q H K M N rflKMnrFRrl Visit us online at l\JULtl\U DIMENSION STANDARDS Turning
