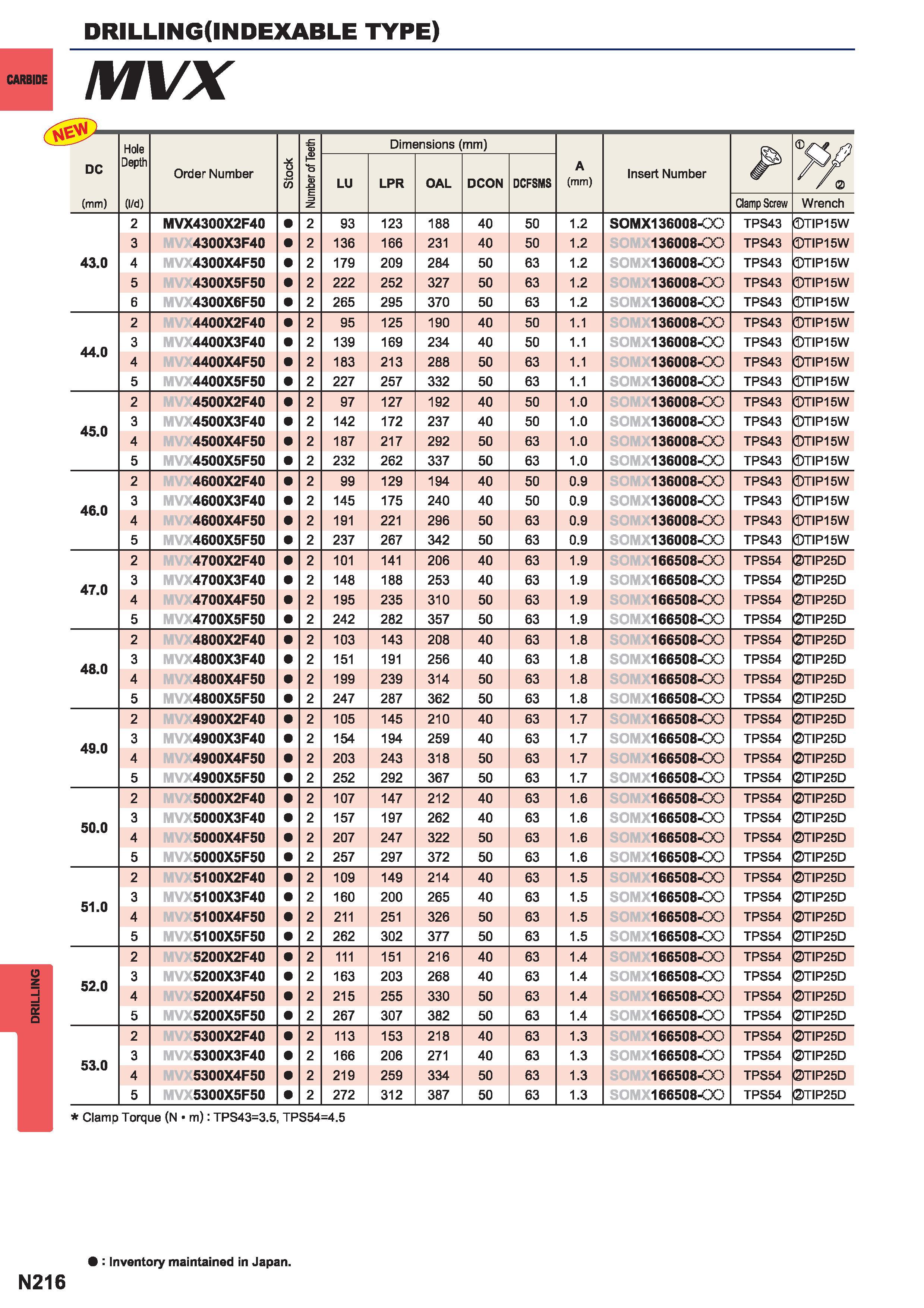

DRILLING DRILLING (INDEXABLE TYPE) CARBIDE MVX DC (mm) Hole Depth (l d) Order Number a 3 to Number of Teeth Dimensions mm) A (mm) Insert Number 9 LPR OAL DCON DCFSMS Clamp Screw Wrench 2 MVX4300X2F40 2 93 123 188 40 50 1.2 SOMX136008-00 TPS43 TIP15W 3 4300X3F40 2 136 166 231 40 50 1.2 IX136008-00 TPS43 TIP15W 43.0 4 4300X4F50 2 179 209 284 50 63 1.2 IX136008-00 TPS43 TIP15W 5 4300X5F50 2 222 252 327 50 63 1.2 IX136008-00 TPS43 TIP15W 6 4300X6F50 2 265 295 370 50 63 1.2 136008-00 TPS43 TIP15W 2 4400X2F40 2 95 125 190 40 50 1.1 IX136008-00 TPS43 TIP15W 44.0 3 4400X3F40 2 139 169 234 40 50 1.1 IX136008-00 TPS43 TIP15W 4 4400X4F50 2 183 213 288 50 63 1.1 IX136008-00 TPS43 TIP15W 5 4400X5F50 2 227 257 332 50 63 1.1 136008-00 TPS43 TIP15W 2 4500X2F40 2 97 127 192 40 50 1.0 IX136008-00 TPS43 TIP15W 45.0 3 4500X3F40 2 142 172 237 40 50 1.0 IX136008-00 TPS43 TIP15W 4 4500X4F50 2 187 217 292 50 63 1.0 1X136008-00 TPS43 TIP15W 5 4500X5F50 2 232 262 337 50 63 1.0 136008-00 TPS43 TIP15W 2 4600X2F40 2 99 129 194 40 50 0.9 IX136008-00 TPS43 TIP15W 46.0 3 4600X3F40 2 145 175 240 40 50 0.9 IX136008-00 TPS43 TIP15W 4 4600X4F50 2 191 221 296 50 63 0.9 IX136008-00 TPS43 TIP15W 5 4600X5F50 2 237 267 342 50 63 0.9 136008-00 TPS43 TIP15W 2 4700X2F40 2 101 141 206 40 63 1.9 IX166508-00 TPS54 0TIP25D 47.0 3 4700X3F40 2 148 188 253 40 63 1.9 IX166508-00 TPS54 TIP25D 4 4700X4F50 2 195 235 310 50 63 1.9 IX166508-00 TPS54 TIP25D 5 4700X5F50 2 242 282 357 50 63 1.9 166508-00 TPS54 0TIP25D 2 4800X2F40 2 103 143 208 40 63 1.8 166508-00 TPS54 0TIP25D 48.0 3 4800X3F40 2 151 191 256 40 63 1.8 IX166508-00 TPS54 TIP25D 4 4800X4F50 2 199 239 314 50 63 1.8 IX166508-00 TPS54 0TIP25D 5 4800X5F50 2 247 287 362 50 63 1.8 166508-00 TPS54 TIP25D 2 4900X2F40 2 105 145 210 40 63 1.7 IX166508-00 TPS54 TIP25D 49.0 3 4900X3F40 2 154 194 259 40 63 1.7 IX166508-00 TPS54 TIP25D 4 4900X4F50 2 203 243 318 50 63 1.7 IX166508-00 TPS54 TIP25D 5 4900X5F50 2 252 292 367 50 63 1.7 166508-00 TPS54 TIP25D 2 5000X2F40 2 107 147 212 40 63 1.6 IX166508-00 TPS54 TIP25D 50.0 3 5000X3F40 2 157 197 262 40 63 1.6 IX166508-00 TPS54 0TIP25D 4 5000X4F50 2 207 247 322 50 63 1.6 IX166508-00 TPS54 TIP25D 5 5000X5F50 2 257 297 372 50 63 1.6 166508-00 TPS54 TIP25D 2 J 5100X2F40 2 109 149 214 40 63 1.5 IX166508-00 TPS54 TIP25D 51.0 3 5100X3F40 2 160 200 265 40 63 1.5 IX166508-00 TPS54 TIP25D 4 5100X4F50 2 211 251 326 50 63 1.5 IX166508-00 TPS54 TIP25D 5 5100X5F50 2 262 302 377 50 63 1.5 166508-00 TPS54 0TIP25D 2 J 5200X2F40 2 111 151 216 40 63 1.4 IX166508-00 TPS54 0TIP25D 52.0 3 5200X3F40 2 163 203 268 40 63 1.4 IX166508-00 TPS54 TIP25D 4 5200X4F50 2 215 255 330 50 63 1.4 IX166508-00 TPS54 TIP25D 5 5200X5F50 2 267 307 382 50 63 1.4 166508-00 TPS54 TIP25D 2 J. 5300X2F40 2 113 153 218 40 63 1.3 166508-00 TPS54 TIP25D 53.0 3 5300X3F40 2 166 206 271 40 63 1.3 IX166508-00 TPS54 TIP25D 4 J 5300X4F50 2 219 259 334 50 63 1.3 IX166508-00 TPS54 0TIP25D 5 5300X5F50 2 272 312 387 50 63 1.3 166508-00 TPS54 TIP25D Clamp Torque (N m) TPS433.5 PS544.5 Inventory maintained in Japan. N216
