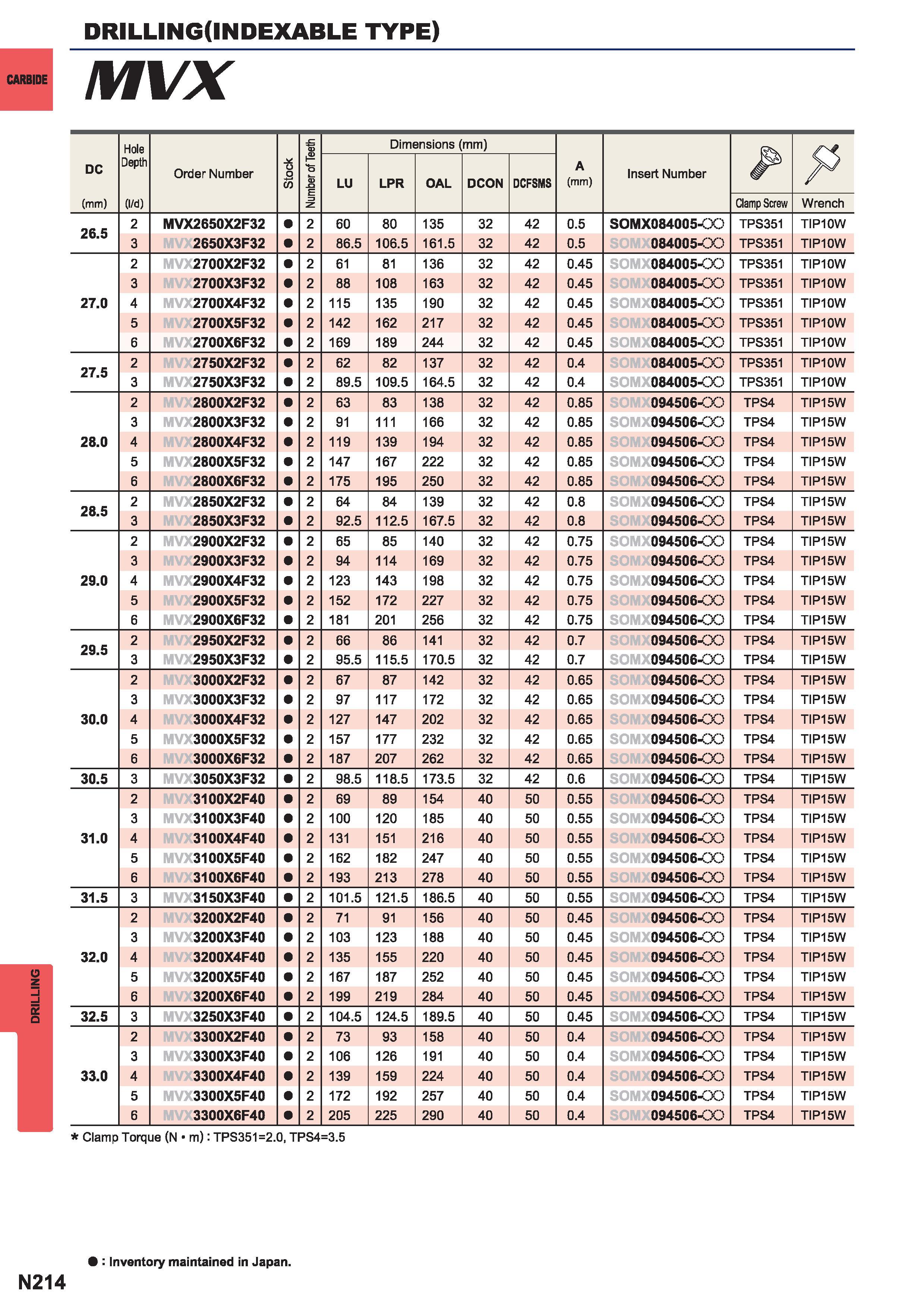

DRILLING DRILLING (INDEXABLE TYPE) CARBIDE N214 MVX Hole -CZ Dimensions mm) DC Depth Order Number Stock o CD -O LPR OAL DCON DCFSMS A (mm) Insert Number 4 h (mm) (l d) J z Clamp Screw Wrench 26.5 2 MVX2650X2F32 2 60 80 135 32 42 0.5 SCJMX084005-00 TPS351 TIP10W 3 2650X3F32 2 86.5 106.5 161.5 32 42 0.5 084005-00 TPS351 TIP10W 2 2700X2F32 2 61 81 136 32 42 0.45 AX084005-00 TPS351 TIP10W 3 2700X3F32 2 88 108 163 32 42 0.45 1X084005-00 TPS351 TIP10W 27.0 4 2700X4F32 2 115 135 190 32 42 0.45 AX084005-00 TPS351 TIP10W 5 2700X5F32 2 142 162 217 32 42 0.45 IX084005-00 TPS351 TIP10W 6 2700X6F32 2 169 189 244 32 42 0.45 11X084005-00 TPS351 TIP10W 27.5 2 2750X2F32 2 62 82 137 32 42 0.4 41X084005-00 TPS351 TIP10W 3 2750X3F32 2 89.5 109.5 164.5 32 42 0.4 084005-00 TPS351 TIP10W 2 2800X2F32 2 63 83 138 32 42 0.85 1X094506-00 TPS4 TIP15W 3 2800X3F32 2 91 111 166 32 42 0.85 OMX094506-00 TPS4 TIP15W 28.0 4 2800X4F32 2 119 139 194 32 42 0.85 IX094506-00 TPS4 TIP15W 5 2800X5F32 2 147 167 222 32 42 0.85 IX094506-00 TPS4 TIP15W 6 2800X6F32 2 175 195 250 32 42 0.85 41X094506-00 TPS4 TIP15W 28.5 2 2850X2F32 2 64 84 139 32 42 0.8 41X094506-00 TPS4 TIP15W 3 2850X3F32 2 92.5 112.5 167.5 32 42 0.8 AX094506-00 TPS4 TIP15W 2 2900X2F32 2 65 85 140 32 42 0.75 IX094506-00 TPS4 TIP15W 3 2900X3F32 2 94 114 169 32 42 0.75 AX094506-00 TPS4 TIP15W 29.0 4 2900X4F32 2 123 143 198 32 42 0.75 IX094506-00 TPS4 TIP15W 5 2900X5F32 2 152 172 227 32 42 0.75 41X094506-00 TPS4 TIP15W 6 2900X6F32 2 181 201 256 32 42 0.75 094506-00 TPS4 TIP15W 29.5 2 2950X2F32 2 66 86 141 32 42 0.7 41X094506-00 TPS4 TIP15W 3 2950X3F32 2 95.5 115.5 170.5 32 42 0.7 094506-00 TPS4 TIP15W 2 J. 3000X2F32 2 67 87 142 32 42 0.65 1X094506-00 TPS4 TIP15W 3 3000X3F32 2 97 117 172 32 42 0.65 IX094506-00 TPS4 TIP15W 30.0 4 J 3000X4F32 2 127 147 202 32 42 0.65 IX094506-00 TPS4 TIP15W 5 MV 3000X5F32 2 157 177 232 32 42 0.65 IX094506-00 TPS4 TIP15W 6 J. 3000X6F32 2 187 207 262 32 42 0.65 AX094506-00 TPS4 TIP15W 30.5 3 3050X3F32 2 98.5 118.5 173.5 32 42 0.6 094506-00 TPS4 TIP15W 2 J 3100X2F40 2 69 89 154 40 50 0.55 1X094506-00 TPS4 TIP15W 3 3100X3F40 2 100 120 185 40 50 0.55 AX094506-00 TPS4 TIP15W 31.0 4 J 3100X4F40 2 131 151 216 40 50 0.55 IX094506-00 TPS4 TIP15W 5 3100X5F40 2 162 182 247 40 50 0.55 41X094506-00 TPS4 TIP15W 6 3100X6F40 2 193 213 278 40 50 0.55 094506-00 TPS4 TIP15W 31.5 3 3150X3F40 2 101.5 121.5 186.5 40 50 0.55 094506-00 TPS4 TIP15W 2 J 3200X2F40 2 71 91 156 40 50 0.45 1X094506-00 TPS4 TIP15W 3 3200X3F40 2 103 123 188 40 50 0.45 AX094506-00 TPS4 TIP15W 32.0 4 i 3200X4F40 2 135 155 220 40 50 0.45 AX094506-00 TPS4 TIP15W 5 3200X5F40 2 167 187 252 40 50 0.45 IX094506-00 TPS4 TIP15W 6 J. 3200X6F40 2 199 219 284 40 50 0.45 41X094506-00 TPS4 TIP15W 32.5 3 3250X3F40 2 104.5 124.5 189.5 40 50 0.45 094506-00 TPS4 TIP15W 2 J 3300X2F40 2 73 93 158 40 50 0.4 41X094506-00 TPS4 TIP15W 3 3300X3F40 2 106 126 191 40 50 0.4 IX094506-00 TPS4 TIP15W 33.0 4 i 3300X4F40 2 139 159 224 40 50 0.4 IX094506-00 TPS4 TIP15W 5 3300X5F40 2 172 192 257 40 50 0.4 IX094506-00 TPS4 TIP15W 6 J. 3300X6F40 2 205 225 290 40 50 0.4 41X094506-00 TPS4 TIP15W Clamp Torque (N m) TPS3512.0 TPS43.5 Inventory maintained in Japan.
