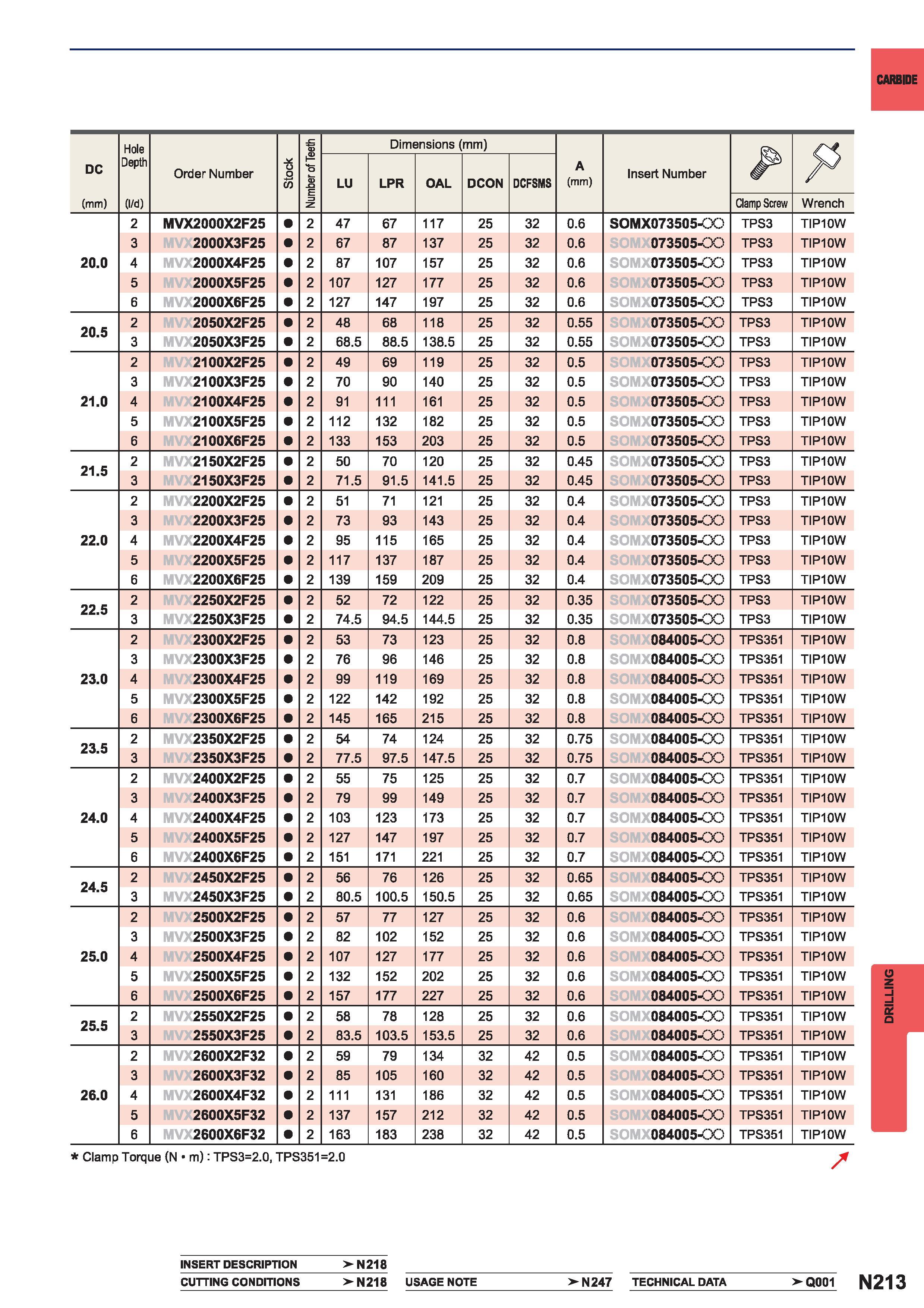

CARBIDE Hole -CZ Dimensions mm) DC Depth Order Number Stock o CD -O LPR OAL DCON DCFSMS A (mm) Insert Number (mm) (l d) J z Clamp Screw Wrench 2 MVX2000X2F25 2 47 67 117 25 32 0.6 SOMX073505-00 TPS3 TIP10W 3 2000X3F25 2 67 87 137 25 32 0.6 AX073505-00 TPS3 TIP10W 20.0 4 2000X4F25 2 87 107 157 25 32 0.6 IX073505-00 TPS3 TIP10W 5 2000X5F25 2 107 127 177 25 32 0.6 IX073505-00 TPS3 TIP10W 6 2000X6F25 2 127 147 197 25 32 0.6 073505-00 TPS3 TIP10W 20.5 2 2050X2F25 2 48 68 118 25 32 0.55 IX073505-00 TPS3 TIP10W 3 2050X3F25 2 68.5 88.5 138.5 25 32 0.55 073505-00 TPS3 TIP10W 2 2100X2F25 2 49 69 119 25 32 0.5 073505-00 TPS3 TIP10W 3 2100X3F25 2 70 90 140 25 32 0.5 AX073505-00 TPS3 TIP10W 21.0 4 2100X4F25 2 91 111 161 25 32 0.5 AX073505-00 TPS3 TIP10W 5 2100X5F25 2 112 132 182 25 32 0.5 IX073505-00 TPS3 TIP10W 6 2100X6F25 2 133 153 203 25 32 0.5 073505-00 TPS3 TIP10W 21.5 2 2150X2F25 2 50 70 120 25 32 0.45 IX073505-00 TPS3 TIP10W 3 2150X3F25 2 71.5 91.5 141.5 25 32 0.45 073505-00 TPS3 TIP10W 2 2200X2F25 2 51 71 121 25 32 0.4 AX073505-00 TPS3 TIP10W 3 2200X3F25 2 73 93 143 25 32 0.4 IX073505-00 TPS3 TIP10W 22.0 4 2200X4F25 2 95 115 165 25 32 0.4 IX073505-00 TPS3 TIP10W 5 2200X5F25 2 117 137 187 25 32 0.4 IX073505-00 TPS3 TIP10W 6 2200X6F25 2 139 159 209 25 32 0.4 073505-00 TPS3 TIP10W 22.5 2 2250X2F25 2 52 72 122 25 32 0.35 IX073505-CG TPS3 TIP10W 3 2250X3F25 2 74.5 94.5 144.5 25 32 0.35 073505-00 TPS3 TIP10W 2 2300X2F25 2 53 73 123 25 32 0.8 084005-00 TPS351 TIP10W 3 2300X3F25 2 76 96 146 25 32 0.8 AX084005-00 TPS351 TIP10W 23.0 4 2300X4F25 2 99 119 169 25 32 0.8 IX084005-00 TPS351 TIP10W 5 2300X5F25 2 122 142 192 25 32 0.8 IX084005-00 TPS351 TIP10W 6 2300X6F25 2 145 165 215 25 32 0.8 084005-00 TPS351 TIP10W 23.5 2 2350X2F25 2 54 74 124 25 32 0.75 41X084005-00 TPS351 TIP10W 3 2350X3F25 2 77.5 97.5 147.5 25 32 0.75 084005-00 TPS351 TIP10W 2 2400X2F25 2 55 75 125 25 32 0.7 AX084005-00 TPS351 TIP10W 3 2400X3F25 2 79 99 149 25 32 0.7 HX084005-00 TPS351 TIP10W 24.0 4 2400X4F25 2 103 123 173 25 32 0.7 IX084005-00 TPS351 TIP10W 5 2400X5F25 2 127 147 197 25 32 0.7 IX084005-00 TPS351 TIP10W 6 2400X6F25 2 151 171 221 25 32 0.7 1X084005-00 TPS351 TIP10W 24.5 2 2450X2F25 2 56 76 126 25 32 0.65 084005-00 TPS351 TIP10W 3 2450X3F25 2 80.5 100.5 150.5 25 32 0.65 084005-00 TPS351 TIP10W 2 2500X2F25 2 57 77 127 25 32 0.6 AX084005-00 TPS351 TIP10W 3 2500X3F25 2 82 102 152 25 32 0.6 IX084005-00 TPS351 TIP10W 25.0 4 2500X4F25 2 107 127 177 25 32 0.6 IX084005-00 TPS351 TIP10W 5 2500X5F25 2 132 152 202 25 32 0.6 41X084005-00 TPS351 TIP10W 6 2500X6F25 2 157 177 227 25 32 0.6 084005-00 TPS351 TIP10W 25.5 2 2550X2F25 2 58 78 128 25 32 0.6 41X084005-00 TPS351 TIP10W 3 2550X3F25 2 83.5 103.5 153.5 25 32 0.6 084005-00 TPS351 TIP10W 2 2600X2F32 2 59 79 134 32 42 0.5 AX084005-00 TPS351 TIP10W 3 2600X3F32 2 85 105 160 32 42 0.5 IX084005-00 TPS351 TIP10W 26.0 4 2600X4F32 2 111 131 186 32 42 0.5 IX084005-00 TPS351 TIP10W 5 2600X5F32 2 137 157 212 32 42 0.5 41X084005-00 TPS351 TIP10W 6 2600X6F32 2 163 183 238 32 42 0.5 084005-00 TPS351 TIP10W Clamp Torque (N m) TPS32.0 TPS3512.0 INSERT DESCRIPTION N218 CUTTING CONDITIONS N218 USAGE NOTE N247 TECHNICAL DATA -Q001 N213 DRILLING
