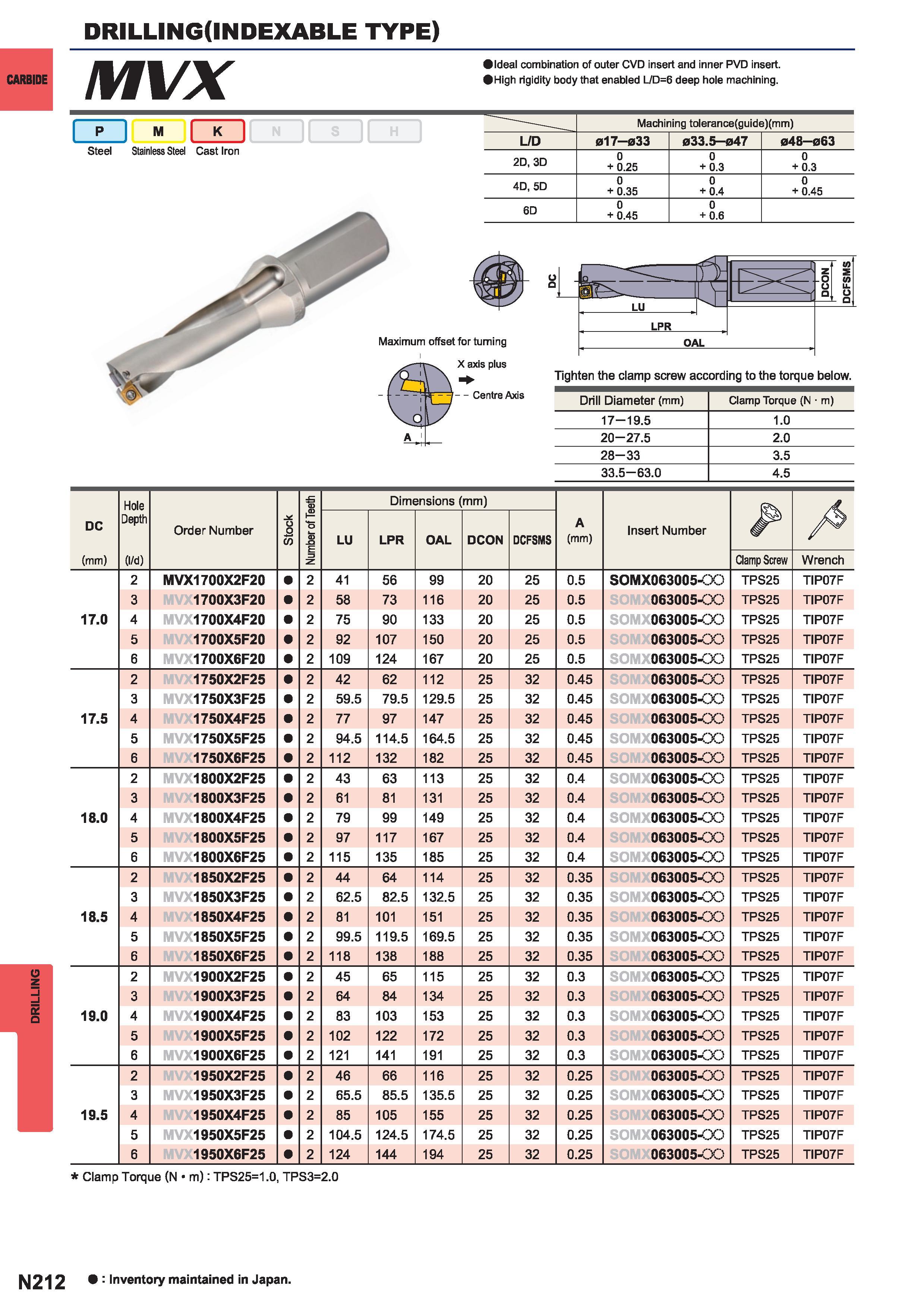

DRILLING DRILLING (INDEXABLE TYPE) CARBIDE MVX Ideal combination of outer CVD insert and inner PVD insert. High rigidity body that enabled L D6 deep hole machining. Machining tolerance(guide)(mm) L D 017-033 033.5-047 048 063 2D 3D 0 + 0.25 0 + 0.3 0 + 0.3 4D 5D 0 + 0.35 0 + 0.4 0 + 0.45 6D 0 + 0.45 0 + 0.6 Steel Stainless Steel Cast Iron Maximum offset for turning X axis plus Centre Axis Tighten the clamp screw according to the torque below. Drill Diameter (mm) Clamp Torque (N m) 17-19.5 1.0 20-27.5 2.0 28-33 3.5 33.5-63.0 4.5 Hole Dimensions (mm) DC Depth Order Number Stock jjH o -O LPR OAL DCON CFSMS A (mm) Insert Number Jh (mm) (l d) 1 z Clamp Screw Wrench 2 MVX1700X2F20 2 41 56 99 20 25 0.5 SOMX063005-GG TPS25 TIP07F 3 1700X3F20 2 58 73 116 20 25 0.5 063005-00 TPS25 TIP07F 17.0 4 MV 1700X4F20 2 75 90 133 20 25 0.5 IX063005-00 TPS25 TIP07F 5 1700X5F20 2 92 107 150 20 25 0.5 IX063005-00 TPS25 TIP07F 6 1700X6F20 2 109 124 167 20 25 0.5 063005-00 TPS25 TIP07F 2 ir 1750X2F25 2 42 62 112 25 32 0.45 063005-00 TPS25 TIP07F 3 1750X3F25 2 59.5 79.5 129.5 25 32 0.45 41X063005-00 TPS25 TIP07F 17.5 4 1750X4F25 2 77 97 147 25 32 0.45 41X063005-00 TPS25 TIP07F 5 1750X5F25 2 94.5 114.5 164.5 25 32 0.45 41X063005-00 TPS25 TIP07F 6 1750X6F25 2 112 132 182 25 32 0.45 063005-00 TPS25 TIP07F 2 1800X2F25 2 43 63 113 25 32 0.4 IX063005-00 TPS25 TIP07F 3 iC 1800X3F25 2 61 81 131 25 32 0.4 1X063005-00 TPS25 TIP07F 18.0 4 1800X4F25 2 79 99 149 25 32 0.4 41X063005-00 TPS25 TIP07F 5 1800X5F25 2 97 117 167 25 32 0.4 IX063005-00 TPS25 TIP07F 6 1800X6F25 2 115 135 185 25 32 0.4 1X063005-00 TPS25 TIP07F 2 1850X2F25 2 44 64 114 25 32 0.35 063005-00 TPS25 TIP07F 3 MV 1850X3F25 2 62.5 82.5 132.5 25 32 0.35 AX063005-00 TPS25 TIP07F 18.5 4 iC 1850X4F25 2 81 101 151 25 32 0.35 IX063005-00 TPS25 TIP07F 5 1850X5F25 2 99.5 119.5 169.5 25 32 0.35 41X063005-00 TPS25 TIP07F 6 1850X6F25 2 118 138 188 25 32 0.35 063005-00 TPS25 TIP07F 2 1900X2F25 2 45 65 115 25 32 0.3 41X063005-00 TPS25 TIP07F 3 1900X3F25 2 64 84 134 25 32 0.3 11X063005-00 TPS25 TIP07F 19.0 4 MV 1900X4F25 2 83 103 153 25 32 0.3 AX063005-00 TPS25 TIP07F 5 1900X5F25 2 102 122 172 25 32 0.3 1X063005-00 TPS25 TIP07F 6 1900X6F25 2 121 141 191 25 32 0.3 063005-00 TPS25 TIP07F 2 1950X2F25 2 46 66 116 25 32 0.25 063005-00 TPS25 TIP07F 3 1950X3F25 2 65.5 85.5 135.5 25 32 0.25 41X063005-00 TPS25 TIP07F 19.5 4 1950X4F25 2 85 105 155 25 32 0.25 063005-00 TPS25 TIP07F 5 MV 1950X5F25 2 104.5 124.5 174.5 25 32 0.25 AX063005-00 TPS25 TIP07F 6 1950X6F25 2 124 144 194 25 32 0.25 063005-00 TPS25 TIP07F Clamp Torque (N m) TPS251.0 TPS32.0 N212 Inventory maintained in Japan.
