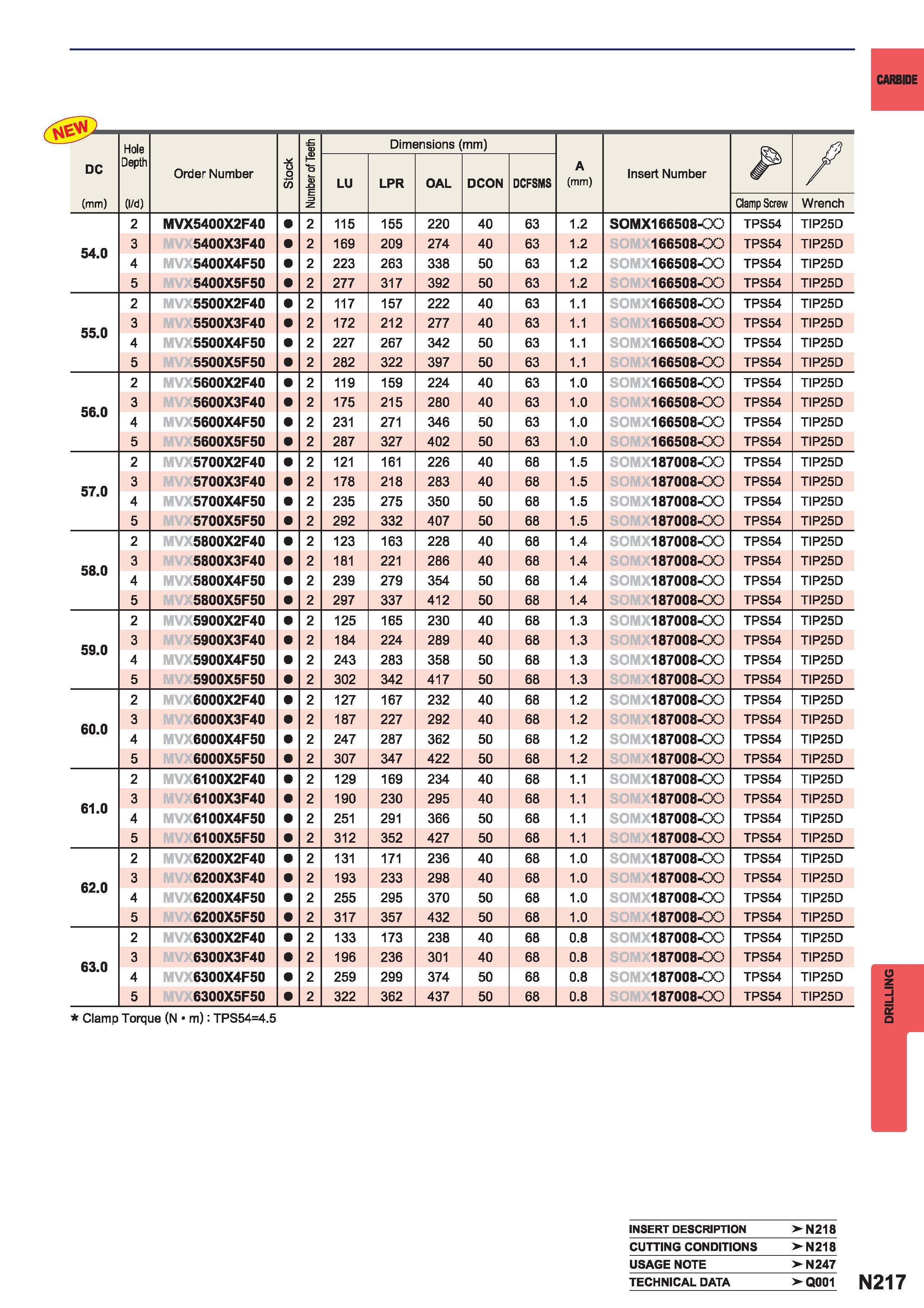

1533 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N217

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N217 1533 ENG Lab2u

CARBIDE DC (mm) Hole Depth (l d) Order Number a 3 to Number of Teeth Dimensions mm) A (mm) Insert Number LPR OAL DCON DCFSMS Clamp Screw Wrench 2 MVX5400X2F40 2 115 155 220 40 63 1.2 SOMX166508-00 TPS54 TIP25D 54.0 3 J 5400X3F40 2 169 209 274 40 63 1.2 IX166508-00 TPS54 TIP25D 4 5400X4F50 2 223 263 338 50 63 1.2 IX166508-00 TPS54 TIP25D 5 5400X5F50 2 277 317 392 50 63 1.2 1X166508-00 TPS54 TIP25D 2 5500X2F40 2 117 157 222 40 63 1.1 IX166508-00 TPS54 TIP25D 55.0 3 J 5500X3F40 2 172 212 277 40 63 1.1 IX166508-00 TPS54 TIP25D 4 5500X4F50 2 227 267 342 50 63 1.1 IX166508-00 TPS54 TIP25D 5 5500X5F50 2 282 322 397 50 63 1.1 166508-00 TPS54 TIP25D 2 5600X2F40 2 119 159 224 40 63 1.0 IX166508-00 TPS54 TIP25D 56.0 3 J. 5600X3F40 2 175 215 280 40 63 1.0 IX166508-00 TPS54 TIP25D 4 5600X4F50 2 231 271 346 50 63 1.0 IX166508-00 TPS54 TIP25D 5 5600X5F50 2 287 327 402 50 63 1.0 1X166508-00 TPS54 TIP25D 2 5700X2F40 2 121 161 226 40 68 1.5 IX187008-00 TPS54 TIP25D 57.0 3 J. 5700X3F40 2 178 218 283 40 68 1.5 1X187008-00 TPS54 TIP25D 4 5700X4F50 2 235 275 350 50 68 1.5 1X187008-00 TPS54 TIP25D 5 5700X5F50 2 292 332 407 50 68 1.5 1X187008-00 TPS54 TIP25D 2 5800X2F40 2 123 163 228 40 68 1.4 1X187008-00 TPS54 TIP25D 58.0 3 i 5800X3F40 2 181 221 286 40 68 1.4 1X187008-00 TPS54 TIP25D 4 5800X4F50 2 239 279 354 50 68 1.4 1X187008-00 TPS54 TIP25D 5 5800X5F50 2 297 337 412 50 68 1.4 1X187008-00 TPS54 TIP25D 2 5900X2F40 2 125 165 230 40 68 1.3 1X187008-00 TPS54 TIP25D 59.0 3 J. 5900X3F40 2 184 224 289 40 68 1.3 1X187008-00 TPS54 TIP25D 4 5900X4F50 2 243 283 358 50 68 1.3 1X187008-00 TPS54 TIP25D 5 5900X5F50 2 302 342 417 50 68 1.3 187008-00 TPS54 TIP25D 2 6000X2F40 2 127 167 232 40 68 1.2 1X187008-00 TPS54 TIP25D 60.0 3 6000X3F40 2 187 227 292 40 68 1.2 1X187008-00 TPS54 TIP25D 4 6000X4F50 2 247 287 362 50 68 1.2 1X187008-00 TPS54 TIP25D 5 6000X5F50 2 307 347 422 50 68 1.2 1X187008-00 TPS54 TIP25D 2 6100X2F40 2 129 169 234 40 68 1.1 1X187008-00 TPS54 TIP25D 61.0 3 6100X3F40 2 190 230 295 40 68 1.1 1X187008-00 TPS54 TIP25D 4 6100X4F50 2 251 291 366 50 68 1.1 1X187008-00 TPS54 TIP25D 5 6100X5F50 2 312 352 427 50 68 1.1 1X187008-00 TPS54 TIP25D 2 6200X2F40 2 131 171 236 40 68 1.0 1X187008-00 TPS54 TIP25D 62.0 3 J. 6200X3F40 2 193 233 298 40 68 1.0 1X187008-00 TPS54 TIP25D 4 6200X4F50 2 255 295 370 50 68 1.0 1X187008-00 TPS54 TIP25D 5 6200X5F50 2 317 357 432 50 68 1.0 1X187008-00 TPS54 TIP25D 2 6300X2F40 2 133 173 238 40 68 0.8 1X187008-00 TPS54 TIP25D 63.0 3 i 6300X3F40 2 196 236 301 40 68 0.8 1X187008-00 TPS54 TIP25D 4 6300X4F50 2 259 299 374 50 68 0.8 1X187008-00 TPS54 TIP25D 5 6300X5F50 2 322 362 437 50 68 0.8 1X187008-00 TPS54 TIP25D Clamp Torque (N m) TPS544.5 INSERT DESCRIPTION N218 CUTTING CONDITIONS N218 USAGE NOTE N247 TECHNICAL DATA -Q001 N217 DRILLING
