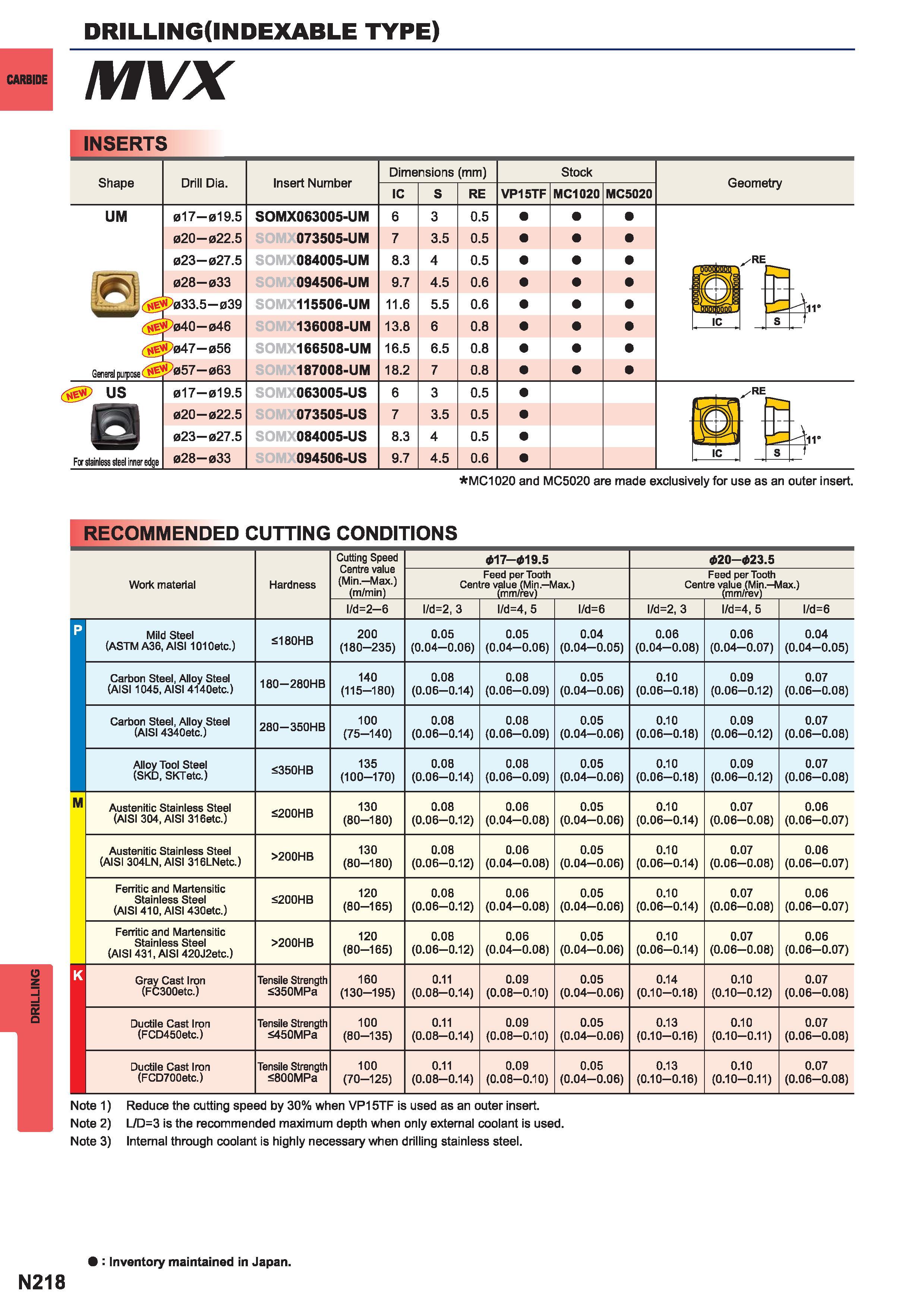

DRILLING DRILLING (INDEXABLE TYPE) CARBIDE MVX INSERTS Shape Drill Dia. Insert Number Dimensions 1C S mm) RE Stock VP15TF MC1020 MC5020 Geometry UM 017-019.5 020-022.5 023-027.5 028 033 fp033.5 039 040 046 ;t gjp047 056 i jp057 063 SOMX063005-U M 073505-UM 084005-UM 094506-UM 115506-UM 136008-UM 166508-UM 187008-UM 6 7 8.3 9.7 11.6 13.8 16.5 18.2 3 3.5 4 4.5 5.5 6 6.5 7 0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.8 us 017-019.5 020-022.5 023-027.5 028 033 063005-US 073505-US 084005-US 094506-US 6 7 8.3 9.7 3 3.5 4 4.5 0.5 0.5 0.5 0.6 MC1020 and MC5020 are made exclusively for use as an outer Insert. RECOMMENDED CUTTING CONDITIONS Cutting Speed Centre value (Min Max.) (m/min) 17-019.5 420-423.5 Work material Hardness Feed per Tooth Centre value (Min Max.) (mm/rev) Feed per Tooth Centre value (Min. Max.) (mm/rev) d2 6 d2 3 d4 5 d6 d2 3 d4 5 d6 p Mild Steel (ASTM A36 AISI 1010etc.) S180HB 200 (180-235) 0.05 (0.04-0.06) 0.05 (0.04-0.06) 0.04 (0.04-0.05) 0.06 (0.04-0.08) 0.06 (0.04-0.07) 0.04 (0.04-0.05) Carbon Steel Alloy Steel (AISI 1045 AISI 4140etc.) 180 280HB 140 (115-180) 0.08 (0.06-0.14) 0.08 (0.06-0.09) 0.05 (0.04-0.06) 0.10 (0.06-0.18) 0.09 (0.06-0.12) 0.07 (0.06-0.08) Carbon Steel Alloy Steel (AISI 4340etc.) 280 350HB 100 (75-140) 0.08 (0.06-0.14) 0.08 (0.06-0.09) 0.05 (0.04-0.06) 0.10 (0.06-0.18) 0.09 (0.06-0.12) 0.07 (0.06-0.08) Alloy Tool Steel (SKD SKTetc.) 5350HB 135 (100-170) 0.08 (0.06-0.14) 0.08 (0.06-0.09) 0.05 (0.04-0.06) 0.10 (0.06-0.18) 0.09 (0.06-0.12) 0.07 (0.06-0.08) M Austenitic Stainless Steel (AISI 304 AISI 316etc.) S200HB 130 (80-180) 0.08 (0.06-0.12) 0.06 (0.04-0.08) 0.05 (0.04-0.06) 0.10 (0.06-0.14) 0.07 (0.06-0.08) 0.06 (0.06-0.07) Austenitic Stainless Steel (AISI 304LN AISI 316LNetc.) 200HB 130 (80-180) 0.08 (0.06-0.12) 0.06 (0.04-0.08) 0.05 (0.04-0.06) 0.10 (0.06-0.14) 0.07 (0.06-0.08) 0.06 (0.06-0.07) Ferritic and Martensitic Stainless Steel (AISI 410 AISI 430etc.) S200HB 120 (80-165) 0.08 (0.06-0.12) 0.06 (0.04-0.08) 0.05 (0.04-0.06) 0.10 (0.06-0.14) 0.07 (0.06-0.08) 0.06 (0.06-0.07) Ferritic and Martensitic Stainless Steel (AISI 431 AISI 420J2etc.) 200HB 120 (80-165) 0.08 (0.06-0.12) 0.06 (0.04-0.08) 0.05 (0.04-0.06) 0.10 (0.06-0.14) 0.07 (0.06-0.08) 0.06 (0.06-0.07) K Gray Cast Iron (FC300etc.) Tensile Strength 350MPa 160 (130-195) 0.11 (0.08-0.14) 0.09 (0.08-0.10) 0.05 (0.04-0.06) 0.14 (0.10-0.18) 0.10 (0.10-0.12) 0.07 (0.06-0.08) Ductile Cast iron (FCD450etc.) Tensile Strength 5450MPa 100 (80-135) 0.11 (0.08-0.14) 0.09 (0.08-0.10) 0.05 (0.04-0.06) 0.13 (0.10-0.16) 0.10 (0.10-0.11) 0.07 (0.06-0.08) Ductile Cast iron (FCD700etc.) Tensile Strength 800MPa 100 (70-125) 0.11 (0.08-0.14) 0.09 (0.08-0.10) 0.05 (0.04-0.06) 0.13 (0.10-0.16) 0.10 (0.10-0.11) 0.07 (0.06-0.08) Note 1) Reduce the cutting speed by 30% when VP15TF is used as an outer insert. Note 2) L D3 is the recommended maximum depth when only external coolant is used. Note 3) Internal through coolant is highly necessary when drilling stainless steel. Inventory maintained in Japan. N218
