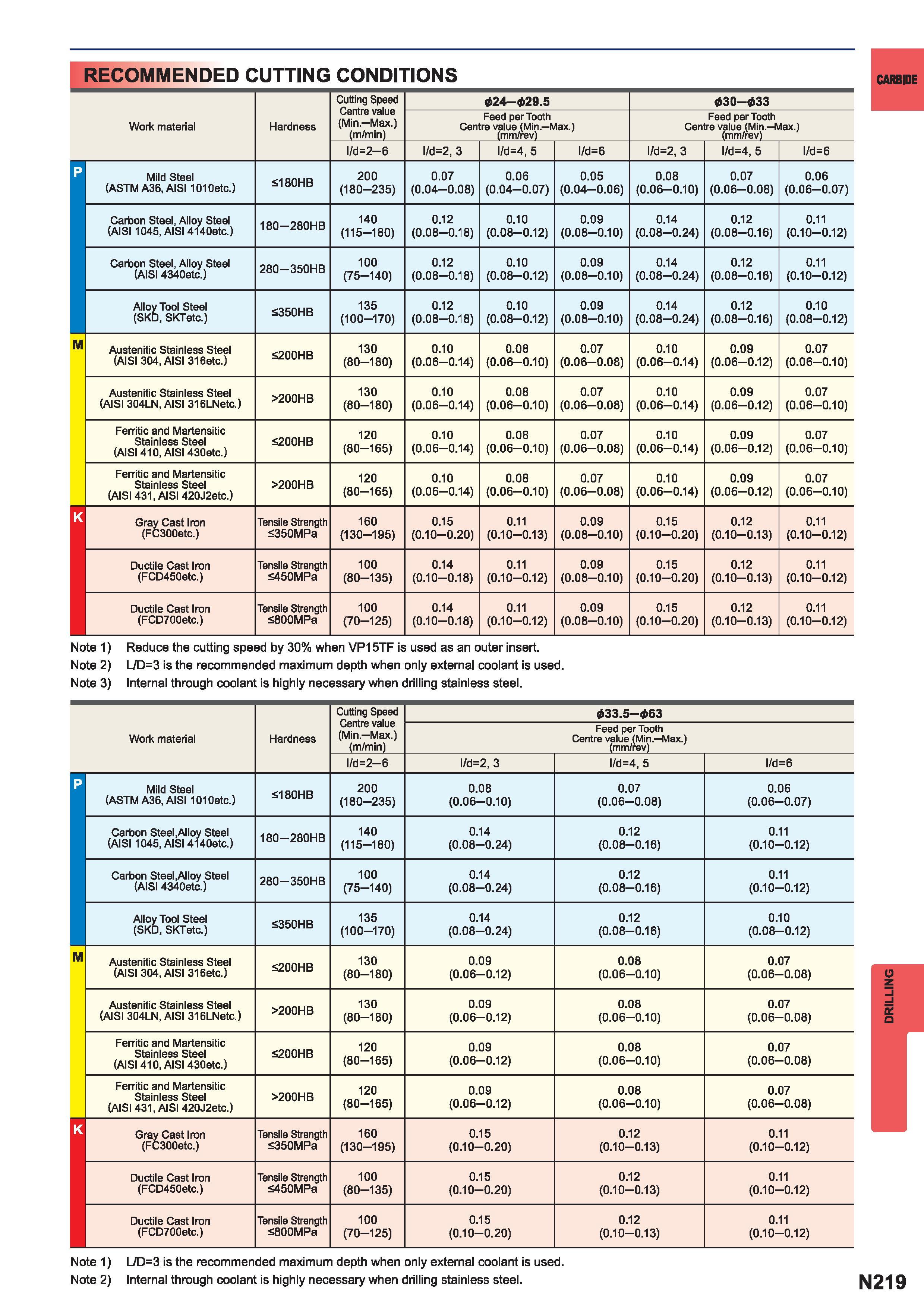

RECOMMENDED CUTTING CONDITIONS CARBIDE Cutting Speed Centre value (Min. Max.) (m/min) 24- 29.5 030-033 Work material Hardness Feed per Tooth Centre value (Min. Max.) (mm/rev) Feed per Tooth Centre value (Min. Max.) (mm/rev) d2 6 d2 3 d4 5 d6 d2 3 d4 5 d6 p Mild Steel (ASTM A36 AISI 1010etc.) 180HB 200 (180-235) 0.07 (0.04-0.08) 0.06 (0.04-0.07) 0.05 (0.04-0.06) 0.08 (0.06-0.10) 0.07 (0.06-0.08) 0.06 (0.06-0.07) Carbon Steel Alloy Steel (AISI 1045 AISI 4140etc.) 180 280HB 140 (115-180) 0.12 (0.08-0.18) 0.10 (0.08-0.12) 0.09 (0.08-0.10) 0.14 (0.08-0.24) 0.12 (0.08-0.16) 0.11 (0.10-0.12) Carbon Steel Alloy Steel (AISI 4340etc.) 280 350HB 100 (75-140) 0.12 (0.08-0.18) 0.10 (0.08-0.12) 0.09 (0.08-0.10) 0.14 (0.08-0.24) 0.12 (0.08-0.16) 0.11 (0.10-0.12) Alloy Tool Steel (SKD SKTetc.) S350HB 135 (100-170) 0.12 (0.08-0.18) 0.10 (0.08-0.12) 0.09 (0.08-0.10) 0.14 (0.08-0.24) 0.12 (0.08-0.16) 0.10 (0.08-0.12) M Austenitic Stainless Steel (AISI 304 AISI 316etc.) 200HB 130 (80-180) 0.10 (0.06-0.14) 0.08 (0.06-0.10) 0.07 (0.06-0.08) 0.10 (0.06-0.14) 0.09 (0.06-0.12) 0.07 (0.06-0.10) Austenitic Stainless Steel (AISI 304LN AISI 316LNetc.) 200HB 130 (80-180) 0.10 (0.06-0.14) 0.08 (0.06-0.10) 0.07 (0.06-0.08) 0.10 (0.06-0.14) 0.09 (0.06-0.12) 0.07 (0.06-0.10) Fenritic and Martensitic Stainless Steel (AISI 410 AISI 430etc.) 200HB 120 (80-165) 0.10 (0.06-0.14) 0.08 (0.06-0.10) 0.07 (0.06-0.08) 0.10 (0.06-0.14) 0.09 (0.06-0.12) 0.07 (0.06-0.10) Ferritic and Martensitic Stainless Steel (AISI 431 AISI 420J2etc.) 200HB 120 (80-165) 0.10 (0.06-0.14) 0.08 (0.06-0.10) 0.07 (0.06-0.08) 0.10 (0.06-0.14) 0.09 (0.06-0.12) 0.07 (0.06-0.10) K Gray Cast Iron (FC300etc.) Tensile Strength 350MPa 160 (130-195) 0.15 (0.10-0.20) 0.11 (0.10-0.13) 0.09 (0.08-0.10) 0.15 (0.10-0.20) 0.12 (0.10-0.13) 0.11 (0.10-0.12) Ductile Cast Iron (FCD450etc.) Tensile Strength 450MPa 100 (80-135) 0.14 (0.10-0.18) 0.11 (0.10-0.12) 0.09 (0.08-0.10) 0.15 (0.10-0.20) 0.12 (0.10-0.13) 0.11 (0.10-0.12) Ductile Cast Iron (FCD700etc.) Tensile Strength S800MPa 100 (70-125) 0.14 (0.10-0.18) 0.11 (0.10-0.12) 0.09 (0.08-0.10) 0.15 (0.10-0.20) 0.12 (0.10-0.13) 0.11 (0.10-0.12) Note 1) Reduce the cutting speed by 30% when VP15TF is used as an outer insert. Note 2) L D3 is the recommended maximum depth when only external coolant is used. Note 3) Internal through coolant is highly necessary when drilling stainless steel. Cutting Speed Centre value (Min. Max.) (m/min) 033.5-063 Work material Hardness Feed per Tooth Centre value (Min. Max.) (mm/rev) d2 6 d2 3 d4 5 d6 P Mild Steel (ASTM A36 AISI 1010etc.) S180HB 200 (180-235) 0.08 (0.06-0.10) 0.07 (0.06-0.08) 0.06 (0.06-0.07) Carbon SteelAlloy Steel (AISI 1045 AISI 4140etc.) 180 280HB 140 (115-180) 0.14 (0.08-0.24) 0.12 (0.08-0.16) 0.11 (0.10-0.12) Carbon SteelAlloy Steel (AISI 4340etc.) 280 350HB 100 (75-140) 0.14 (0.08-0.24) 0.12 (0.08-0.16) 0.11 (0.10-0.12) Alloy Tool Steel (SKD SKTetc.) 350HB 135 (100-170) 0.14 (0.08-0.24) 0.12 (0.08-0.16) 0.10 (0.08-0.12) M Austenitic Stainless Steel (AISI 304 AISI 316etc.) S200HB 130 (80-180) 0.09 (0.06-0.12) 0.08 (0.06-0.10) 0.07 (0.06-0.08) Austenitic Stainless Steel (AISI 304LN AISI 316LNetc.) 200HB 130 (80-180) 0.09 (0.06-0.12) 0.08 (0.06-0.10) 0.07 (0.06-0.08) Ferritic and Martensitic Stainless Steel (AISI 410 AISI 430etc.) S200HB 120 (80-165) 0.09 (0.06-0.12) 0.08 (0.06-0.10) 0.07 (0.06-0.08) Ferritic and Martensitic Stainless Steel (AISI 431 AISI 420J2etc.) 200HB 120 (80-165) 0.09 (0.06-0.12) 0.08 (0.06-0.10) 0.07 (0.06-0.08) K Gray Cast Iron (FC300etc.) Tensile Strength S350MPa 160 (130-195) 0.15 (0.10-0.20) 0.12 (0.10-0.13) 0.11 (0.10-0.12) Ductile Cast Iron (FCD450etc.) Tensile Strength 450MPa 100 (80-135) 0.15 (0.10-0.20) 0.12 (0.10-0.13) 0.11 (0.10-0.12) Ductile Cast Iron (FCD700etc.) Tensile Strength sSOOMPa 100 (70-125) 0.15 (0.10-0.20) 0.12 (0.10-0.13) 0.11 (0.10-0.12) Note 1) L D3 is the recommended maximum depth when only external coolant is used. Note 2) Internal through coolant is highly necessary when drilling stainless steel. N219 DRILLING
