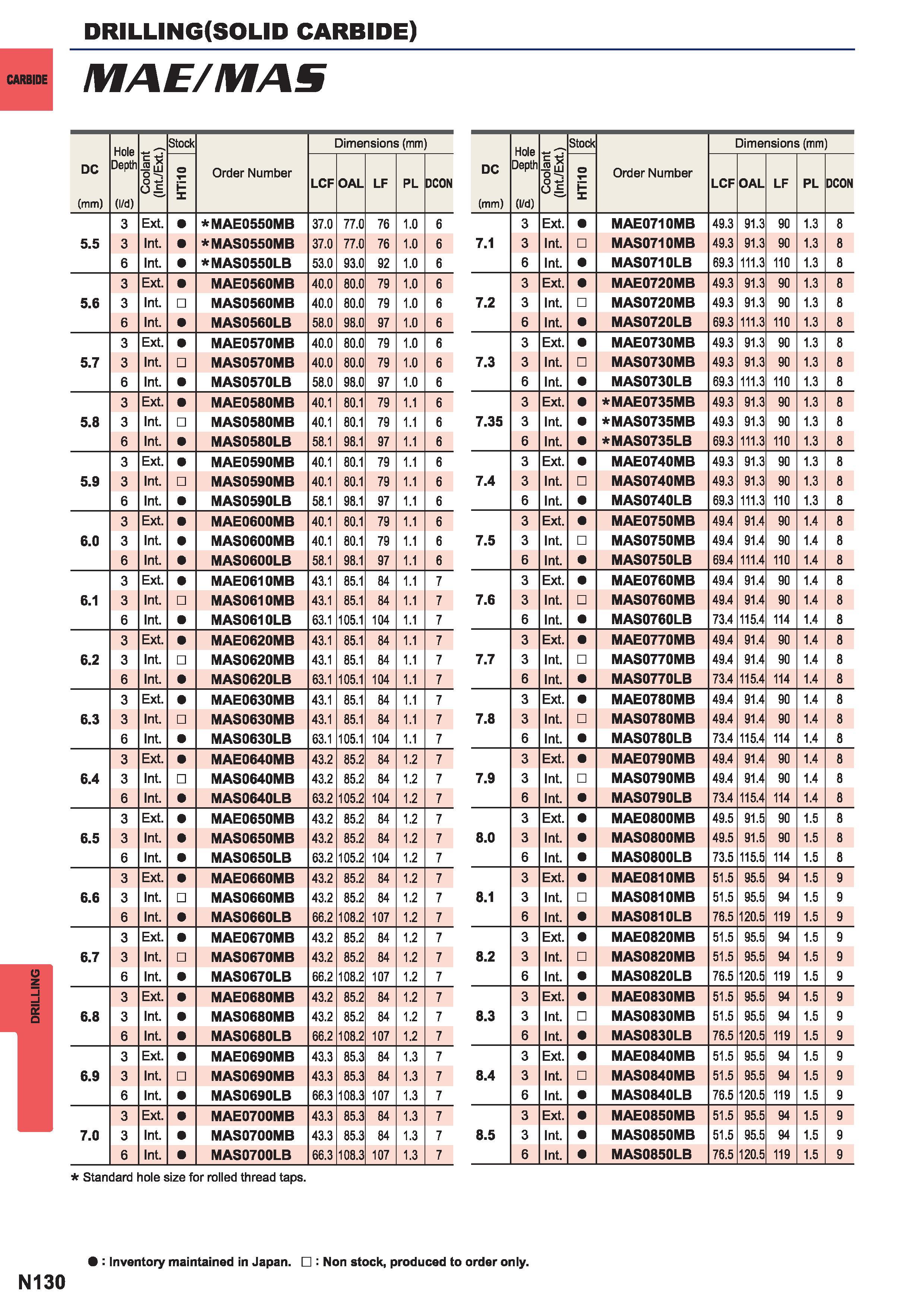

1446 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N130

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N130 1446 ENG Lab2u

DRILLING (SOLID CARBIDE) M E M S DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm Hole Depth (I d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) HTi10 LCF OAL LF PL DC DCON (mm) o H LCF OAL LF PL DCON 3 Ext. MAE0550MB 37.0 77.0 76 1.0 6 3 Ext. MAE0710MB 49.3 91.3 90 1.3 8 5.5 3 Int. MAS0550MB 37.0 77.0 76 1.0 6 7.1 3 Int. MAS0710MB 49.3 91.3 90 1.3 8 6 Int. MAS0550LB 53.0 93.0 92 1.0 6 6 Int. MAS0710LB 69.3 111.3 110 1.3 8 3 Ext. MAE0560MB 40.0 80.0 79 1.0 6 3 Ext. MAE0720MB 49.3 91.3 90 1.3 8 5.6 3 Int. MAS0560MB 40.0 80.0 79 1.0 6 7.2 3 Int. MAS0720MB 49.3 91.3 90 1.3 8 6 Int. MAS0560LB 58.0 98.0 97 1.0 6 6 Int. MAS0720LB 69.3 111.3 110 1.3 8 3 Ext. MAE0570MB 40.0 80.0 79 1.0 6 3 Ext. MAE0730MB 49.3 91.3 90 1.3 8 5.7 3 Int. MAS0570MB 40.0 80.0 79 1.0 6 7.3 3 Int. MAS0730MB 49.3 91.3 90 1.3 8 6 Int. MAS0570LB 58.0 98.0 97 1.0 6 6 Int. MAS0730LB 69.3 111.3 110 1.3 8 3 Ext. MAE0580MB 40.1 80.1 79 1.1 6 3 Ext. MAE0735MB 49.3 91.3 90 1.3 8 5.8 3 Int. MAS0580MB 40.1 80.1 79 1.1 6 7.35 3 Int. MAS0735MB 49.3 91.3 90 1.3 8 6 Int. MAS0580LB 58.1 98.1 97 1.1 6 6 Int. MAS0735LB 69.3 111.3 110 1.3 8 3 Ext. MAE0590MB 40.1 80.1 79 1.1 6 3 Ext. MAE0740MB 49.3 91.3 90 1.3 8 5.9 3 Int. MAS0590MB 40.1 80.1 79 1.1 6 7.4 3 Int. MAS0740MB 49.3 91.3 90 1.3 8 6 Int. MAS0590LB 58.1 98.1 97 1.1 6 6 Int. MAS0740LB 69.3 111.3 110 1.3 8 3 Ext. MAE0600MB 40.1 80.1 79 1.1 6 3 Ext. MAE0750MB 49.4 91.4 90 1.4 8 6.0 3 Int. MAS0600MB 40.1 80.1 79 1.1 6 7.5 3 Int. MAS0750MB 49.4 91.4 90 1.4 8 6 Int. MAS0600LB 58.1 98.1 97 1.1 6 6 Int. MAS0750LB 69.4 111.4 110 1.4 8 3 Ext. MAE0610MB 43.1 85.1 84 1.1 7 3 Ext. MAE0760MB 49.4 91.4 90 1.4 8 6.1 3 Int. MAS0610MB 43.1 85.1 84 1.1 7 7.6 3 Int. MAS0760MB 49.4 91.4 90 1.4 8 6 Int. MAS0610LB 63.1 105.1 104 1.1 7 6 Int. MAS0760LB 73.4 115.4 114 1.4 8 3 Ext. MAE0620MB 43.1 85.1 84 1.1 7 3 Ext. MAE0770MB 49.4 91.4 90 1.4 8 6.2 3 Int. MAS0620MB 43.1 85.1 84 1.1 7 7.7 3 Int. MAS0770MB 49.4 91.4 90 1.4 8 6 Int. MAS0620LB 63.1 105.1 104 1.1 7 6 Int. MAS0770LB 73.4 115.4 114 1.4 8 3 Ext. MAE0630MB 43.1 85.1 84 1.1 7 3 Ext. MAE0780MB 49.4 91.4 90 1.4 8 6.3 3 Int. MAS0630MB 43.1 85.1 84 1.1 7 7.8 3 Int. MAS0780MB 49.4 91.4 90 1.4 8 6 Int. MAS0630LB 63.1 105.1 104 1.1 7 6 Int. MAS0780LB 73.4 115.4 114 1.4 8 3 Ext. MAE0640MB 43.2 85.2 84 1.2 7 3 Ext. MAE0790MB 49.4 91.4 90 1.4 8 6.4 3 Int. MAS0640MB 43.2 85.2 84 1.2 7 7.9 3 Int. MAS0790MB 49.4 91.4 90 1.4 8 6 Int. MAS0640LB 63.2 105.2 104 1.2 7 6 Int. MAS0790LB 73.4 115.4 114 1.4 8 3 Ext. MAE0650MB 43.2 85.2 84 1.2 7 3 Ext. MAE0800MB 49.5 91.5 90 1.5 8 6.5 3 Int. MAS0650MB 43.2 85.2 84 1.2 7 8.0 3 Int. MAS0800MB 49.5 91.5 90 1.5 8 6 Int. MAS0650LB 63.2 105.2 104 1.2 7 6 Int. MAS0800LB 73.5 115.5 114 1.5 8 3 Ext. MAE0660MB 43.2 85.2 84 1.2 7 3 Ext. MAE0810MB 51.5 95.5 94 1.5 9 6.6 3 Int. MAS0660MB 43.2 85.2 84 1.2 7 8.1 3 Int. MAS0810MB 51.5 95.5 94 1.5 9 6 Int. MAS0660LB 66.2 108.2 107 1.2 7 6 Int. MAS0810LB 76.5 120.5 119 1.5 9 3 Ext. MAE0670MB 43.2 85.2 84 1.2 7 3 Ext. MAE0820MB 51.5 95.5 94 1.5 9 6.7 3 Int. MAS0670MB 43.2 85.2 84 1.2 7 8.2 3 Int. MAS0820MB 51.5 95.5 94 1.5 9 6 Int. MAS0670LB 66.2 108.2 107 1.2 7 6 Int. MAS0820LB 76.5 120.5 119 1.5 9 3 Ext. MAE0680MB 43.2 85.2 84 1.2 7 3 Ext. MAE0830MB 51.5 95.5 94 1.5 9 6.8 3 Int. MAS0680MB 43.2 85.2 84 1.2 7 8.3 3 Int. MAS0830MB 51.5 95.5 94 1.5 9 6 Int. MAS0680LB 66.2 108.2 107 1.2 7 6 Int. MAS0830LB 76.5 120.5 119 1.5 9 3 Ext. MAE0690MB 43.3 85.3 84 1.3 7 3 Ext. MAE0840MB 51.5 95.5 94 1.5 9 6.9 3 Int. MAS0690MB 43.3 85.3 84 1.3 7 8.4 3 Int. MAS0840MB 51.5 95.5 94 1.5 9 6 Int. MAS0690LB 66.3 108.3 107 1.3 7 6 Int. MAS0840LB 76.5 120.5 119 1.5 9 3 Ext. MAE0700MB 43.3 85.3 84 1.3 7 3 Ext. MAE0850MB 51.5 95.5 94 1.5 9 7.0 3 Int. MAS0700MB 43.3 85.3 84 1.3 7 8.5 3 Int. MAS0850MB 51.5 95.5 94 1.5 9 6 Int. MAS0700LB 66.3 108.3 107 1.3 7 6 Int. MAS0850LB 76.5 120.5 119 1.5 9 Standard hole size for rolled thread taps. Inventory maintained in Japan. Non stock produced to order only. N130
