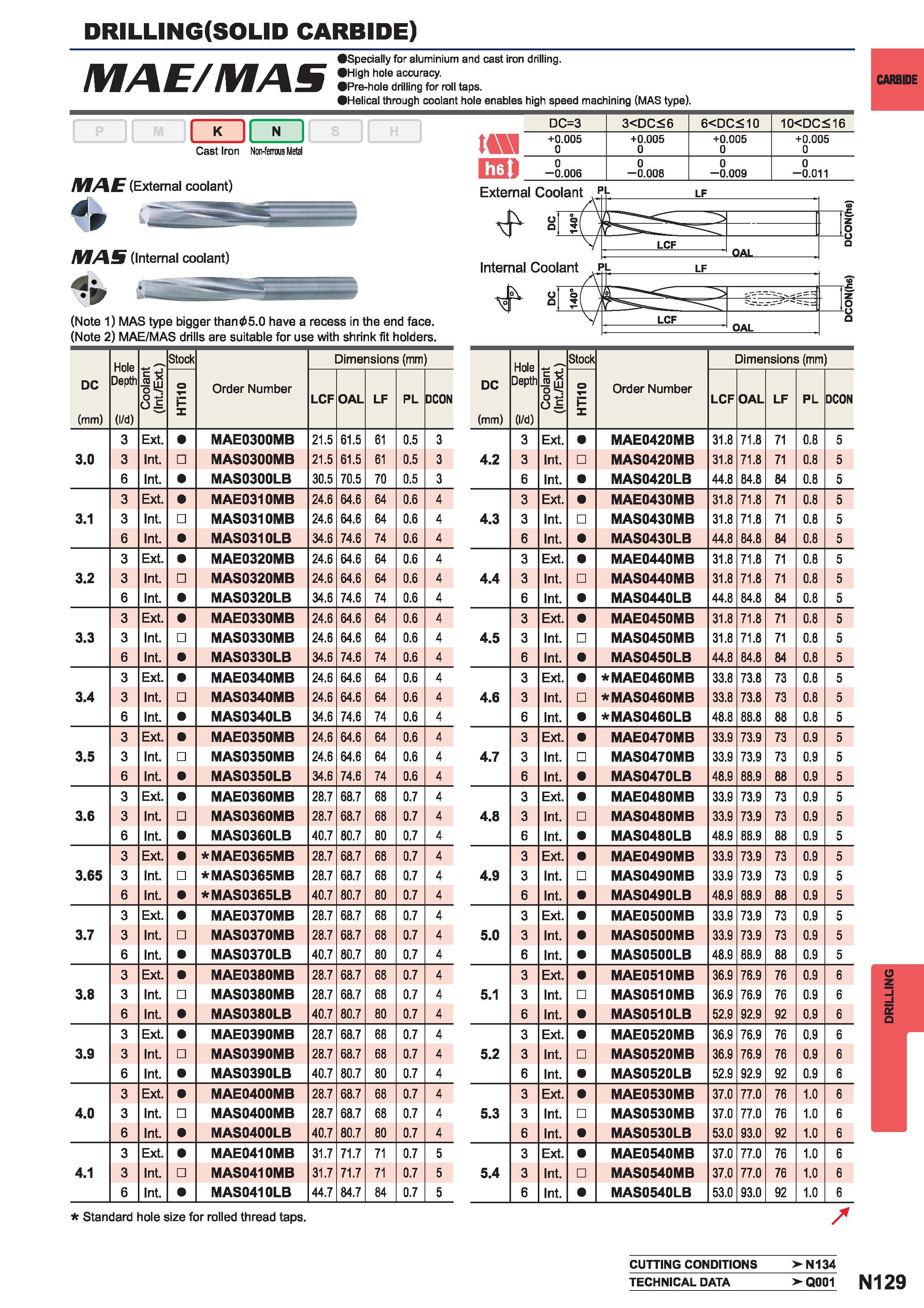

DRILLING (SOLID CARBIDE) especially for aluminium and cast iron drilling. H M am High hole accuracy- Ff lL Pre-hole drilling for roll taps. Helical through coolant hole enables high speed machining (MAS type). DC3 3DC6 6DC10 10DC16 +0.005 +0.005 +0.005 +0.005 -0.006 -0.008 -0.009 -0.011 J K N Cast Iron Non-ferrous Metal MAE (External coolant) MAS (Internal coolant) ip (Note 1) MAS type bigger than 5.0 have a recess in the end face. (Note 2) MAE MAS drills are suitable for use with shrink fit holders. EH) External Coolant . LF A sf - V LCF OAL O L 13 140 z O LCF OAL a DC (mm) Hole Depth (l d) Coolant (lnt. Ext.) Stock Order Number Dimensions (mm DC (mm) Hole Depth (I d) Coolant (lnt. Ext.) Stock Order Number Dimensions (mm HTi10 LCF OAL LF PL DCON HTMO LCF OAL LF PL DCON 3 Ext. MAE0300MB 21.5 61.5 61 0.5 3 3 Ext. MAE0420MB 31.8 71.8 71 0.8 5 3.0 3 Int. MAS0300MB 21.5 61.5 61 0.5 3 4.2 3 Int. MAS0420MB 31.8 71.8 71 0.8 5 6 Int. MAS0300LB 30.5 70.5 70 0.5 3 6 Int. MAS0420LB 44.8 84.8 84 0.8 5 3 Ext. MAE0310MB 24.6 64.6 64 0.6 4 3 Ext. MAE0430MB 31.8 71.8 71 0.8 5 3.1 3 Int. MAS0310MB 24.6 64.6 64 0.6 4 4.3 3 Int. MAS0430MB 31.8 71.8 71 0.8 5 6 Int. MAS0310LB 34.6 74.6 74 0.6 4 6 Int. MAS0430LB 44.8 84.8 84 0.8 5 3 Ext. MAE0320MB 24.6 64.6 64 0.6 4 3 Ext. MAE0440MB 31.8 71.8 71 0.8 5 3.2 3 Int. MAS0320MB 24.6 64.6 64 0.6 4 4.4 3 Int. MAS0440MB 31.8 71.8 71 0.8 5 6 Int. MAS0320LB 34.6 74.6 74 0.6 4 6 Int. MAS0440LB 44.8 84.8 84 0.8 5 3 Ext. MAE0330MB 24.6 64.6 64 0.6 4 3 Ext. MAE0450MB 31.8 71.8 71 0.8 5 3.3 3 Int. MAS0330MB 24.6 64.6 64 0.6 4 4.5 3 Int. MAS0450MB 31.8 71.8 71 0.8 5 6 Int. MAS0330LB 34.6 74.6 74 0.6 4 6 Int. MAS0450LB 44.8 84.8 84 0.8 5 3 Ext. MAE0340MB 24.6 64.6 64 0.6 4 3 Ext. MAE0460MB 33.8 73.8 73 0.8 5 3.4 3 Int. MAS0340MB 24.6 64.6 64 0.6 4 4.6 3 Int. MAS0460MB 33.8 73.8 73 0.8 5 6 Int. MAS0340LB 34.6 74.6 74 0.6 4 6 Int. MAS0460LB 48.8 88.8 88 0.8 5 3 Ext. MAE0350MB 24.6 64.6 64 0.6 4 3 Ext. MAE0470MB 33.9 73.9 73 0.9 5 3.5 3 Int. MAS0350MB 24.6 64.6 64 0.6 4 4.7 3 Int. MAS0470MB 33.9 73.9 73 0.9 5 6 Int. MAS0350LB 34.6 74.6 74 0.6 4 6 Int. MAS0470LB 48.9 88.9 88 0.9 5 3 Ext. MAE0360MB 28.7 68.7 68 0.7 4 3 Ext. MAE0480MB 33.9 73.9 73 0.9 5 3.6 3 Int. MAS0360MB 28.7 68.7 68 0.7 4 4.8 3 Int. MAS0480MB 33.9 73.9 73 0.9 5 6 Int. MAS0360LB 40.7 80.7 80 0.7 4 6 Int. MAS0480LB 48.9 88.9 88 0.9 5 3 Ext. MAE0365MB 28.7 68.7 68 0.7 4 3 Ext. MAE0490MB 33.9 73.9 73 0.9 5 3.65 3 Int. MAS0365MB 28.7 68.7 68 0.7 4 4.9 3 Int. MAS0490MB 33.9 73.9 73 0.9 5 6 Int. MAS0365LB 40.7 80.7 80 0.7 4 6 Int. MAS0490LB 48.9 88.9 88 0.9 5 3 Ext. MAE0370MB 28.7 68.7 68 0.7 4 3 Ext. MAE0500MB 33.9 73.9 73 0.9 5 3.7 3 Int. MAS0370MB 28.7 68.7 68 0.7 4 5.0 3 Int. MAS0500MB 33.9 73.9 73 0.9 5 6 Int. MAS0370LB 40.7 80.7 80 0.7 4 6 Int. MAS0500LB 48.9 88.9 88 0.9 5 3 Ext. MAE0380MB 28.7 68.7 68 0.7 4 3 Ext. MAE0510MB 36.9 76.9 76 0.9 6 3.8 3 Int. MAS0380MB 28.7 68.7 68 0.7 4 5.1 3 Int. MAS0510MB 36.9 76.9 76 0.9 6 6 Int. MAS0380LB 40.7 80.7 80 0.7 4 6 Int. MAS0510LB 52.9 92.9 92 0.9 6 3 Ext. MAE0390MB 28.7 68.7 68 0.7 4 3 Ext. MAE0520MB 36.9 76.9 76 0.9 6 3.9 3 Int. MAS0390MB 28.7 68.7 68 0.7 4 5.2 3 Int. MAS0520MB 36.9 76.9 76 0.9 6 6 Int. MAS0390LB 40.7 80.7 80 0.7 4 6 Int. MAS0520LB 52.9 92.9 92 0.9 6 3 Ext. MAE0400MB 28.7 68.7 68 0.7 4 3 Ext. MAE0530MB 37.0 77.0 76 1.0 6 4.0 3 Int. MAS0400MB 28.7 68.7 68 0.7 4 5.3 3 Int. MAS0530MB 37.0 77.0 76 1.0 6 6 Int. MAS0400LB 40.7 80.7 80 0.7 4 6 Int. MAS0530LB 53.0 93.0 92 1.0 6 3 Ext. MAE0410MB 31.7 71.7 71 0.7 5 3 Ext. MAE0540MB 37.0 77.0 76 1.0 6 4.1 3 Int. MAS0410MB 31.7 71.7 71 0.7 5 5.4 3 Int. MAS0540MB 37.0 77.0 76 1.0 6 6 Int. MAS0410LB 44.7 84.7 84 0.7 5 6 Int. MAS0540LB 53.0 93.0 92 1.0 6 Standard hole size for rolled thread taps. CUTTING CONDITIONS N134 TECHNICAL DATA Q001 CARBIDE N129 DRILLING
