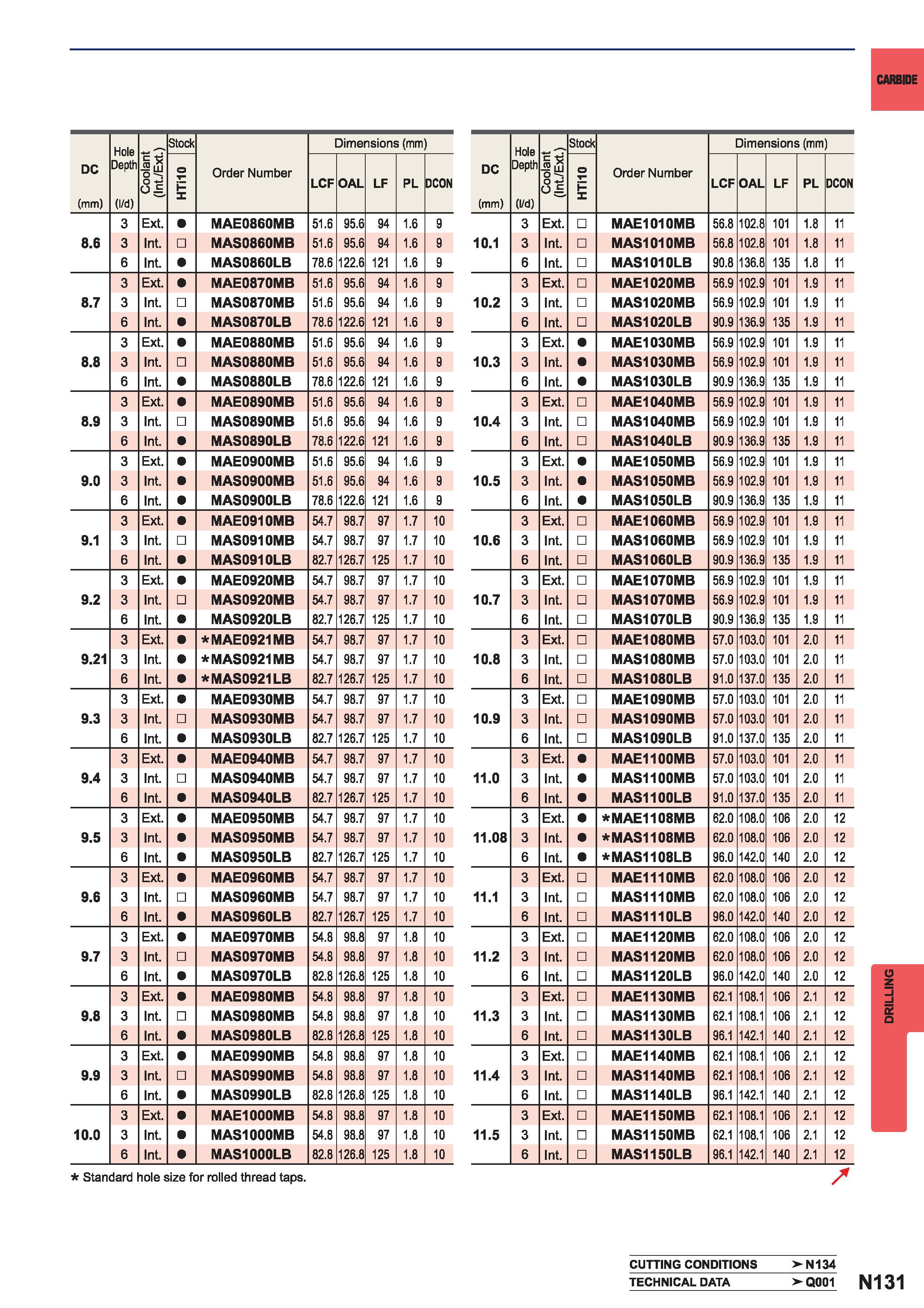

1447 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N131

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N131 1447 ENG Lab2u

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm HTi10 LCF OAL LF PL DCON 3 Ext. MAE0860MB 51.6 95.6 94 1.6 9 8.6 3 Int. MAS0860MB 51.6 95.6 94 1.6 9 6 Int. MAS0860LB 78.6 122.6 121 1.6 9 3 Ext. MAE0870MB 51.6 95.6 94 1.6 9 8.7 3 Int. MAS0870MB 51.6 95.6 94 1.6 9 6 Int. MAS0870LB 78.6 122.6 121 1.6 9 3 Ext. MAE0880MB 51.6 95.6 94 1.6 9 8.8 3 Int. MAS0880MB 51.6 95.6 94 1.6 9 6 Int. MAS0880LB 78.6 122.6 121 1.6 9 3 Ext. MAE0890MB 51.6 95.6 94 1.6 9 8.9 3 Int. MAS0890MB 51.6 95.6 94 1.6 9 6 Int. MAS0890LB 78.6 122.6 121 1.6 9 3 Ext. MAE0900MB 51.6 95.6 94 1.6 9 9.0 3 Int. MAS0900MB 51.6 95.6 94 1.6 9 6 Int. MAS0900LB 78.6 122.6 121 1.6 9 3 Ext. MAE0910MB 54.7 98.7 97 1.7 10 9.1 3 Int. MAS0910MB 54.7 98.7 97 1.7 10 6 Int. MAS0910LB 82.7 126.7 125 1.7 10 3 Ext. MAE0920MB 54.7 98.7 97 1.7 10 9.2 3 Int. MAS0920MB 54.7 98.7 97 1.7 10 6 Int. MAS0920LB 82.7 126.7 125 1.7 10 3 Ext. MAE0921MB 54.7 98.7 97 1.7 10 9.21 3 Int. MAS0921MB 54.7 98.7 97 1.7 10 6 Int. MAS0921LB 82.7 126.7 125 1.7 10 3 Ext. MAE0930MB 54.7 98.7 97 1.7 10 9.3 3 Int. MAS0930MB 54.7 98.7 97 1.7 10 6 Int. MAS0930LB 82.7 126.7 125 1.7 10 3 Ext. MAE0940MB 54.7 98.7 97 1.7 10 9.4 3 Int. MAS0940MB 54.7 98.7 97 1.7 10 6 Int. MAS0940LB 82.7 126.7 125 1.7 10 3 Ext. MAE0950MB 54.7 98.7 97 1.7 10 9.5 3 Int. MAS0950MB 54.7 98.7 97 1.7 10 6 Int. MAS0950LB 82.7 126.7 125 1.7 10 3 Ext. MAE0960MB 54.7 98.7 97 1.7 10 9.6 3 Int. MAS0960MB 54.7 98.7 97 1.7 10 6 Int. MAS0960LB 82.7 126.7 125 1.7 10 3 Ext. MAE0970MB 54.8 98.8 97 1.8 10 9.7 3 Int. MAS0970MB 54.8 98.8 97 1.8 10 6 Int. MAS0970LB 82.8 126.8 125 1.8 10 3 Ext. MAE0980MB 54.8 98.8 97 1.8 10 9.8 3 Int. MAS0980MB 54.8 98.8 97 1.8 10 6 Int. MAS0980LB 82.8 126.8 125 1.8 10 3 Ext. MAE0990MB 54.8 98.8 97 1.8 10 9.9 3 Int. MAS0990MB 54.8 98.8 97 1.8 10 6 Int. MAS0990LB 82.8 126.8 125 1.8 10 3 Ext. MAE1000MB 54.8 98.8 97 1.8 10 10.0 3 Int. MAS1000MB 54.8 98.8 97 1.8 10 6 Int. MAS1000LB 82.8 126.8 125 1.8 10 Standard hole size for rolled thread taps. DC (mm) Hole Depth (I d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) HTMO LCF OAL LF PL DCON 3 Ext. MAE1010MB 56.8 102.8 101 1.8 11 10.1 3 Int. MAS1010MB 56.8 102.8 101 1.8 11 6 Int. MAS1010LB 90.8 136.8 135 1.8 11 3 Ext. MAE1020MB 56.9 102.9 101 1.9 11 10.2 3 Int. MAS1020MB 56.9 102.9 101 1.9 11 6 Int. MAS1020LB 90.9 136.9 135 1.9 11 3 Ext. MAE1030MB 56.9 102.9 101 1.9 11 10.3 3 Int. MAS1030MB 56.9 102.9 101 1.9 11 6 Int. MAS1030LB 90.9 136.9 135 1.9 11 3 Ext. MAE1040MB 56.9 102.9 101 1.9 11 10.4 3 Int. MAS1040MB 56.9 102.9 101 1.9 11 6 Int. MAS1040LB 90.9 136.9 135 1.9 11 3 Ext. MAE1050MB 56.9 102.9 101 1.9 11 10.5 3 Int. MAS1050MB 56.9 102.9 101 1.9 11 6 Int. MAS1050LB 90.9 136.9 135 1.9 11 3 Ext. MAE1060MB 56.9 102.9 101 1.9 11 10.6 3 Int. MAS1060MB 56.9 102.9 101 1.9 11 6 Int. MAS1060LB 90.9 136.9 135 1.9 11 3 Ext. MAE1070MB 56.9 102.9 101 1.9 11 10.7 3 Int. MAS1070MB 56.9 102.9 101 1.9 11 6 Int. MAS1070LB 90.9 136.9 135 1.9 11 3 Ext. MAE1080MB 57.0 103.0 101 2.0 11 10.8 3 Int. MAS1080MB 57.0 103.0 101 2.0 11 6 Int. MAS1080LB 91.0 137.0 135 2.0 11 3 Ext. MAE1090MB 57.0 103.0 101 2.0 11 10.9 3 Int. MAS1090MB 57.0 103.0 101 2.0 11 6 Int. MAS1090LB 91.0 137.0 135 2.0 11 3 Ext. MAE1100MB 57.0 103.0 101 2.0 11 11.0 3 Int. MAS1100MB 57.0 103.0 101 2.0 11 6 Int. MAS1100LB 91.0 137.0 135 2.0 11 3 Ext. MAE1108MB 62.0 108.0 106 2.0 12 11.08 3 Int. MAS1108MB 62.0 108.0 106 2.0 12 6 Int. MAS1108LB 96.0 142.0 140 2.0 12 3 Ext. MAE1110MB 62.0 108.0 106 2.0 12 11.1 3 Int. MAS1110MB 62.0 108.0 106 2.0 12 6 Int. MAS1110LB 96.0 142.0 140 2.0 12 3 Ext. MAE1120MB 62.0 108.0 106 2.0 12 11.2 3 Int. MAS1120MB 62.0 108.0 106 2.0 12 6 Int. MAS1120LB 96.0 142.0 140 2.0 12 3 Ext. MAE1130MB 62.1 108.1 106 2.1 12 11.3 3 Int. MAS1130MB 62.1 108.1 106 2.1 12 6 Int. MAS1130LB 96.1 142.1 140 2.1 12 3 Ext. MAE1140MB 62.1 108.1 106 2.1 12 11.4 3 Int. MAS1140MB 62.1 108.1 106 2.1 12 6 Int. MAS1140LB 96.1 142.1 140 2.1 12 3 Ext. MAE1150MB 62.1 108.1 106 2.1 12 11.5 3 Int. MAS1150MB 62.1 108.1 106 2.1 12 6 Int. MAS1150LB 96.1 142.1 140 2.1 12 CUTTING CONDITIONS - N134 TECHNICAL DATA -Q001 N131 DRILLING
