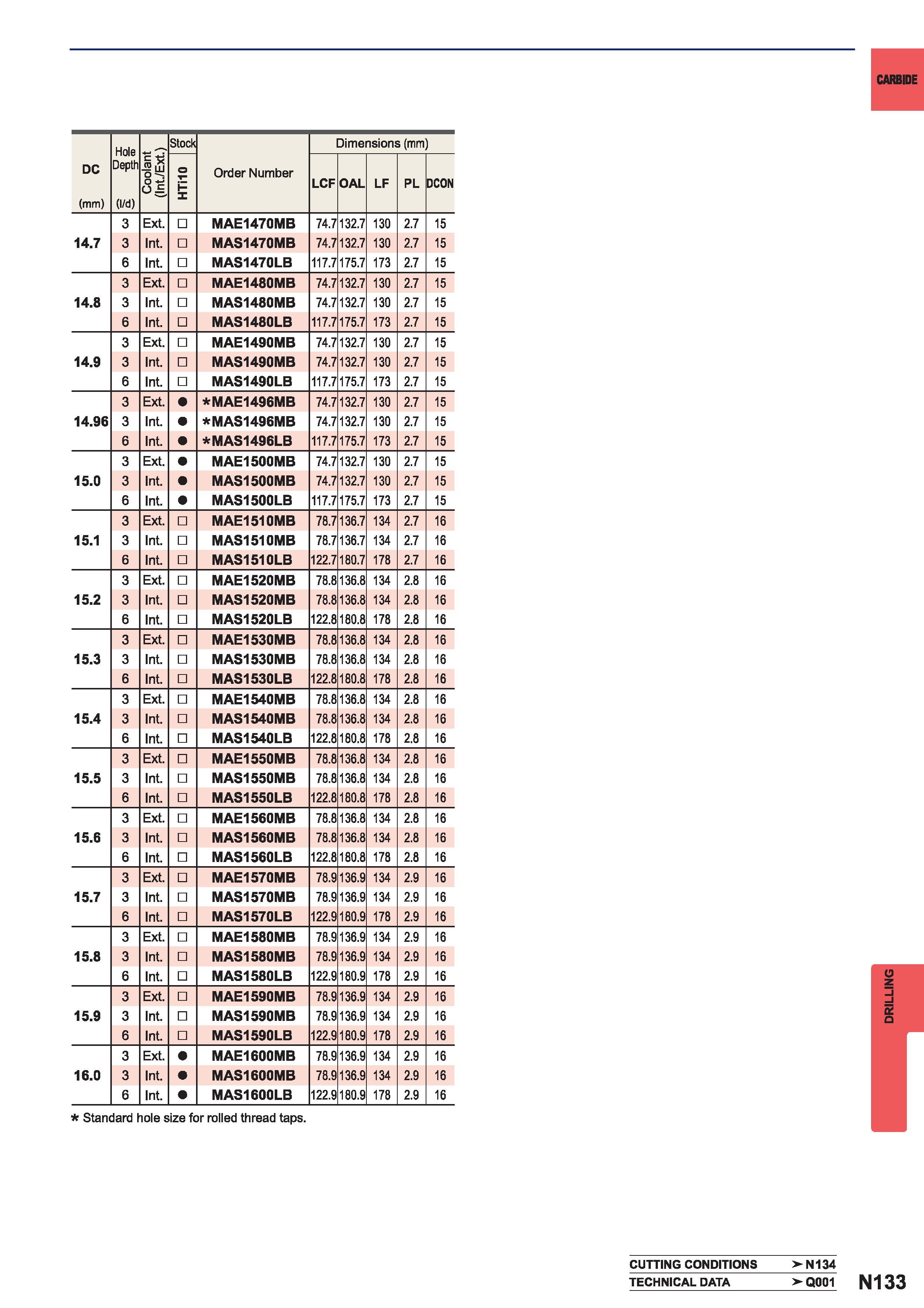

CARBIDE DC (mm) Hole Depth (l d) Coolant (Int. Ext.) Stock Order Number Dimensions (mm) HTi10 LCF OAL LF PL DCON 3 Ext. MAE1470MB 74.7 132.7 130 2.7 15 14.7 3 Int. MAS1470MB 74.7 132.7 130 2.7 15 6 Int. MAS1470LB 117.7 175.7 173 2.7 15 3 Ext. MAE1480MB 74.7 132.7 130 2.7 15 14.8 3 Int. MAS1480MB 74.7 132.7 130 2.7 15 6 Int. MAS1480LB 117.7 175.7 173 2.7 15 3 Ext. MAE1490MB 74.7 132.7 130 2.7 15 14.9 3 Int. MAS1490MB 74.7 132.7 130 2.7 15 6 Int. MAS1490LB 117.7 175.7 173 2.7 15 3 Ext. MAE1496MB 74.7 132.7 130 2.7 15 14.96 3 Int. MAS1496MB 74.7 132.7 130 2.7 15 6 Int. MAS1496LB 117.7 175.7 173 2.7 15 3 Ext. MAE1500MB 74.7 132.7 130 2.7 15 15.0 3 Int. MAS1500MB 74.7 132.7 130 2.7 15 6 Int. MAS1500LB 117.7 175.7 173 2.7 15 3 Ext. MAE1510MB 78.7 136.7 134 2.7 16 15.1 3 Int. MAS1510MB 78.7 136.7 134 2.7 16 6 Int. MAS1510LB 122.7 180.7 178 2.7 16 3 Ext. MAE1520MB 78.8 136.8 134 2.8 16 15.2 3 Int. MAS1520MB 78.8 136.8 134 2.8 16 6 Int. MAS1520LB 122.8 180.8 178 2.8 16 3 Ext. MAE1530MB 78.8 136.8 134 2.8 16 15.3 3 Int. MAS1530MB 78.8 136.8 134 2.8 16 6 Int. MAS1530LB 122.8 180.8 178 2.8 16 3 Ext. MAE1540MB 78.8 136.8 134 2.8 16 15.4 3 Int. MAS1540MB 78.8 136.8 134 2.8 16 6 Int. MAS1540LB 122.8 180.8 178 2.8 16 3 Ext. MAE1550MB 78.8 136.8 134 2.8 16 15.5 3 Int. MAS1550MB 78.8 136.8 134 2.8 16 6 Int. MAS1550LB 122.8 180.8 178 2.8 16 3 Ext. MAE1560MB 78.8 136.8 134 2.8 16 15.6 3 Int. MAS1560MB 78.8 136.8 134 2.8 16 6 Int. MAS1560LB 122.8 180.8 178 2.8 16 3 Ext. MAE1570MB 78.9 136.9 134 2.9 16 15.7 3 Int. MAS1570MB 78.9 136.9 134 2.9 16 6 Int. MAS1570LB 122.9 180.9 178 2.9 16 3 Ext. MAE1580MB 78.9 136.9 134 2.9 16 15.8 3 Int. MAS1580MB 78.9 136.9 134 2.9 16 6 Int. MAS1580LB 122.9 180.9 178 2.9 16 3 Ext. MAE1590MB 78.9 136.9 134 2.9 16 15.9 3 Int. MAS1590MB 78.9 136.9 134 2.9 16 6 Int. MAS1590LB 122.9 180.9 178 2.9 16 3 Ext. MAE1600MB 78.9 136.9 134 2.9 16 16.0 3 Int. MAS1600MB 78.9 136.9 134 2.9 16 6 Int. MAS1600LB 122.9 180.9 178 2.9 16 Standard hole size for rolled thread taps. CUTTING CONDITIONS N134 TECHNICAL DATA Q001 N133 DRILLING
