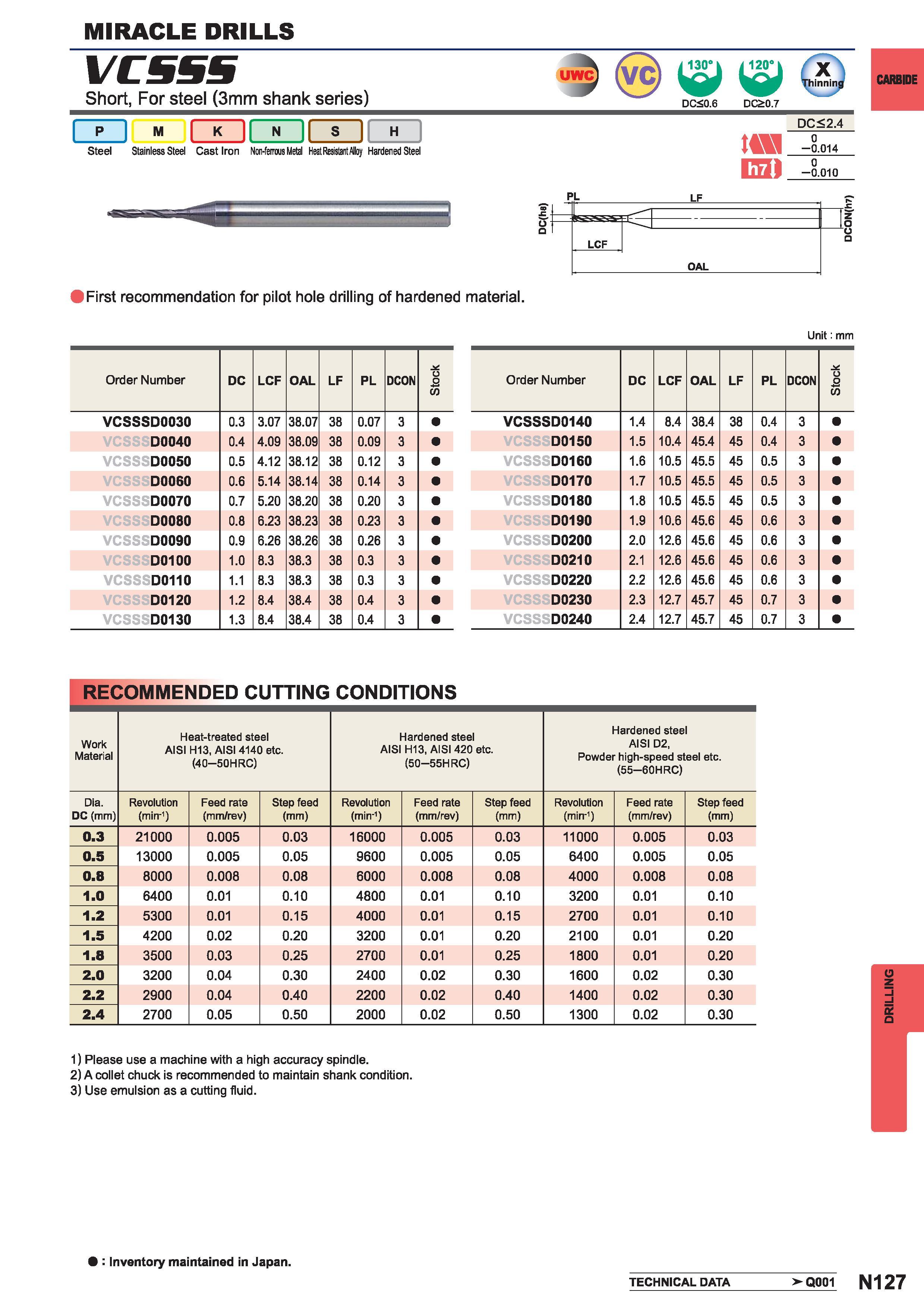

1443 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N127

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N127 1443 ENG Lab2u

MIRACLE DRILLS vcsss Short For steel (3mm shank series) p M x N S H CARBIDE DC O.6 DCS0.7 Steel Stainless Steel Cast Iron Non-ferrous Metal Hardened Steel PL LCF First recommendation for pilot hole drilling of hardened material. till my LF OAL DC2.4 0 -0.014 0 -0.010 Unit mm Order Number DC LCF OAL LF PL DCON Stock VCSSSD0030 0.3 3.07 38.07 38 0.07 3 D0040 0.4 4.09 38.09 38 0.09 3 D0050 0.5 4.12 38.12 38 0.12 3 D0060 0.6 5.14 38.14 38 0.14 3 D0070 0.7 5.20 38.20 38 0.20 3 0080 0.8 6.23 38.23 38 0.23 3 0090 0.9 6.26 38.26 38 0.26 3 0100 1.0 8.3 38.3 38 0.3 3 0110 1.1 8.3 38.3 38 0.3 3 D0120 1.2 8.4 38.4 38 0.4 3 D0130 1.3 8.4 38.4 38 0.4 3 Order Number DC LCF OAL LF PL DCON Stock VCSSSD0140 1.4 8.4 38.4 38 0.4 3 D0150 1.5 10.4 45.4 45 0.4 3 D0160 1.6 10.5 45.5 45 0.5 3 D0170 1.7 10.5 45.5 45 0.5 3 D0180 1.8 10.5 45.5 45 0.5 3 D0190 1.9 10.6 45.6 45 0.6 3 0200 2.0 12.6 45.6 45 0.6 3 D0210 2.1 12.6 45.6 45 0.6 3 0220 2.2 12.6 45.6 45 0.6 3 D0230 2.3 12.7 45.7 45 0.7 3 D0240 2.4 12.7 45.7 45 0.7 3 REC COMMENDED CUTTING CONDITIONS Work Material Heat-treated steel AISI H13 AISI 4140 etc. (40 50HRC) Hardened steel AISI H13 AISI 420 etc. (50-55HRC) Hardened steel AISI D2 Powder high-speed steel etc. (55 60HRC) Dia. DC (mm) Revolution (min-1) Feed rate (mm/rev) Step feed (mm) Revolution (min-1) Feed rate (mm/rev) Step feed (mm) Revolution (min-1) Feed rate (mm/rev) Step feed (mm) 0.3 21000 0.005 0.03 16000 0.005 0.03 11000 0.005 0.03 0.5 13000 0.005 0.05 9600 0.005 0.05 6400 0.005 0.05 0.8 8000 0.008 0.08 6000 0.008 0.08 4000 0.008 0.08 1.0 6400 0.01 0.10 4800 0.01 0.10 3200 0.01 0.10 1.2 5300 0.01 0.15 4000 0.01 0.15 2700 0.01 0.10 1.5 4200 0.02 0.20 3200 0.01 0.20 2100 0.01 0.20 1.8 3500 0.03 0.25 2700 0.01 0.25 1800 0.01 0.20 2.0 3200 0.04 0.30 2400 0.02 0.30 1600 0.02 0.30 2.2 2900 0.04 0.40 2200 0.02 0.40 1400 0.02 0.30 2.4 2700 0.05 0.50 2000 0.02 0.50 1300 0.02 0.30 1) Please use a machine with a high accuracy spindle. 2) A collet chuck Is recommended to maintain shank condition. 3) Use emulsion as a cutting fluid. Inventory maintained in Japan. TECHNICAL DATA -Q001 N127 DRILLING
