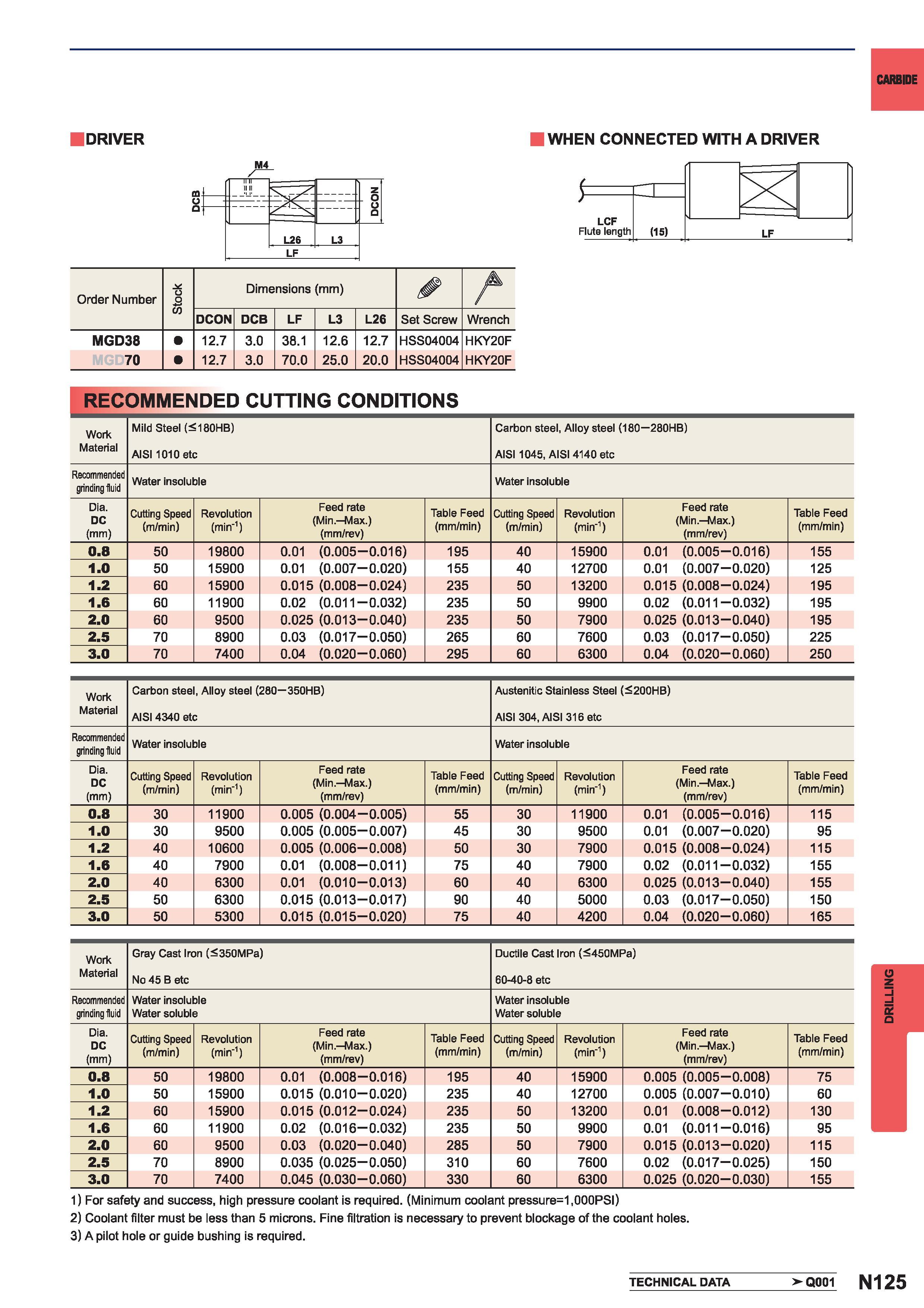

DRIVER WHEN CONNECTED WITH A DRIVER M4 s X LCF Flute length (15) LF Order Number o S Dimensions (mm) w DCON DCB LF L3 L26 Set Screw Wrench MGD38 12.7 3.0 38.1 12.6 12.7 HSS04004 HKY20F SI 70 12.7 3.0 70.0 25.0 20.0 HSS04004 HKY20F RECOMMENDED CUTTING CONDITIONS Work Mild Steel ( m i o co Carbon steel Alloy steel (180 280HB) Material AIS11010 etc AISI 1045 AISI 4140 etc Recommended grinding fluid Water insoluble Water insoluble Dia. DC (mm) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 0.8 50 19800 0.01 (0.005-0.016) 195 40 15900 0.01 (0.005-0.016) 155 1.0 50 15900 0.01 (0.007-0.020) 155 40 12700 0.01 (0.007-0.020) 125 1.2 60 15900 0.015 (0.008-0.024) 235 50 13200 0.015 (0.008-0.024) 195 1.6 60 11900 0.02 (0.011-0.032) 235 50 9900 0.02 (0.011-0.032) 195 2.0 60 9500 0.025 (0.013-0.040) 235 50 7900 0.025 (0.013-0.040) 195 2.5 70 8900 0.03 (0.017-0.050) 265 60 7600 0.03 (0.017-0.050) 225 3.0 70 7400 0.04 (0.020-0.060) 295 60 6300 0.04 (0.020-0.060) 250 Work Material Carbon steel Alloy steel (280 350HB) AISI 4340 etc Austenitic Stainless Steel ( 200HB) AISI 304 AISI 316 etc Recommended grinding fluid Water insoluble Water insoluble Dia. DC (mm) Cutting Speed Revolution Feed rate (Min. Max.) (mm/rev) Table Feed Cutting Speed Revolution Feed rate (Min. Max.) (mm/rev) Table Feed (m/min) (min-1) (mm/min) (m/min) (min-1) (mm/min) 0.8 30 11900 0.005 (0.004-0.005) 55 30 11900 0.01 (0.005-0.016) 115 1.0 30 9500 0.005 (0.005-0.007) 45 30 9500 0.01 (0.007-0.020) 95 1.2 40 10600 0.005 (0.006-0.008) 50 30 7900 0.015 (0.008-0.024) 115 1.6 40 7900 0.01 (0.008-0.011) 75 40 7900 0.02 (0.011-0.032) 155 2.0 40 6300 0.01 (0.010-0.013) 60 40 6300 0.025 (0.013-0.040) 155 2.5 50 6300 0.015 (0.013-0.017) 90 40 5000 0.03 (0.017-0.050) 150 3.0 50 5300 0.015 (0.015-0.020) 75 40 4200 0.04 (0.020-0.060) 165 Work Material Gray Cast Iron (350MPa) No 45 B etc Ductile Cast Iron (450MPa) 60-40-8 etc Recommended grinding fluid Water insoluble Water soluble Water insoluble Water soluble Dia. DC (mm) Cutting Speed Revolution Feed rate (Min. Max.) (mm/rev) Table Feed Cutting Speed Revolution Feed rate (Min. Max.) (mm/rev) Table Feed (m/min) (min-1) (mm/min) (m/min) (min-1) (mm/min) 0.8 50 19800 0.01 (0.008-0.016) 195 40 15900 0.005 (0.005-0.008) 75 1.0 50 15900 0.015 (0.010-0.020) 235 40 12700 0.005 (0.007-0.010) 60 1.2 60 15900 0.015 (0.012-0.024) 235 50 13200 0.01 (0.008-0.012) 130 1.6 60 11900 0.02 (0.016-0.032) 235 50 9900 0.01 (0.011-0.016) 95 2.0 60 9500 0.03 (0.020-0.040) 285 50 7900 0.015 (0.013-0.020) 115 2.5 70 8900 0.035 (0.025-0.050) 310 60 7600 0.02 (0.017-0.025) 150 3.0 70 7400 0.045 (0.030-0.060) 330 60 6300 0.025 (0.020-0.030) 155 1) For safety and success high pressure coolant is required. (Minimum coolant pressure1000PSI) 2) Coolant filter must be less than 5 microns. Fine filtration is necessary to prevent blockage of the coolant holes. 3) A pilot hole or guide bushing is required. TECHNICAL DATA -Q001
