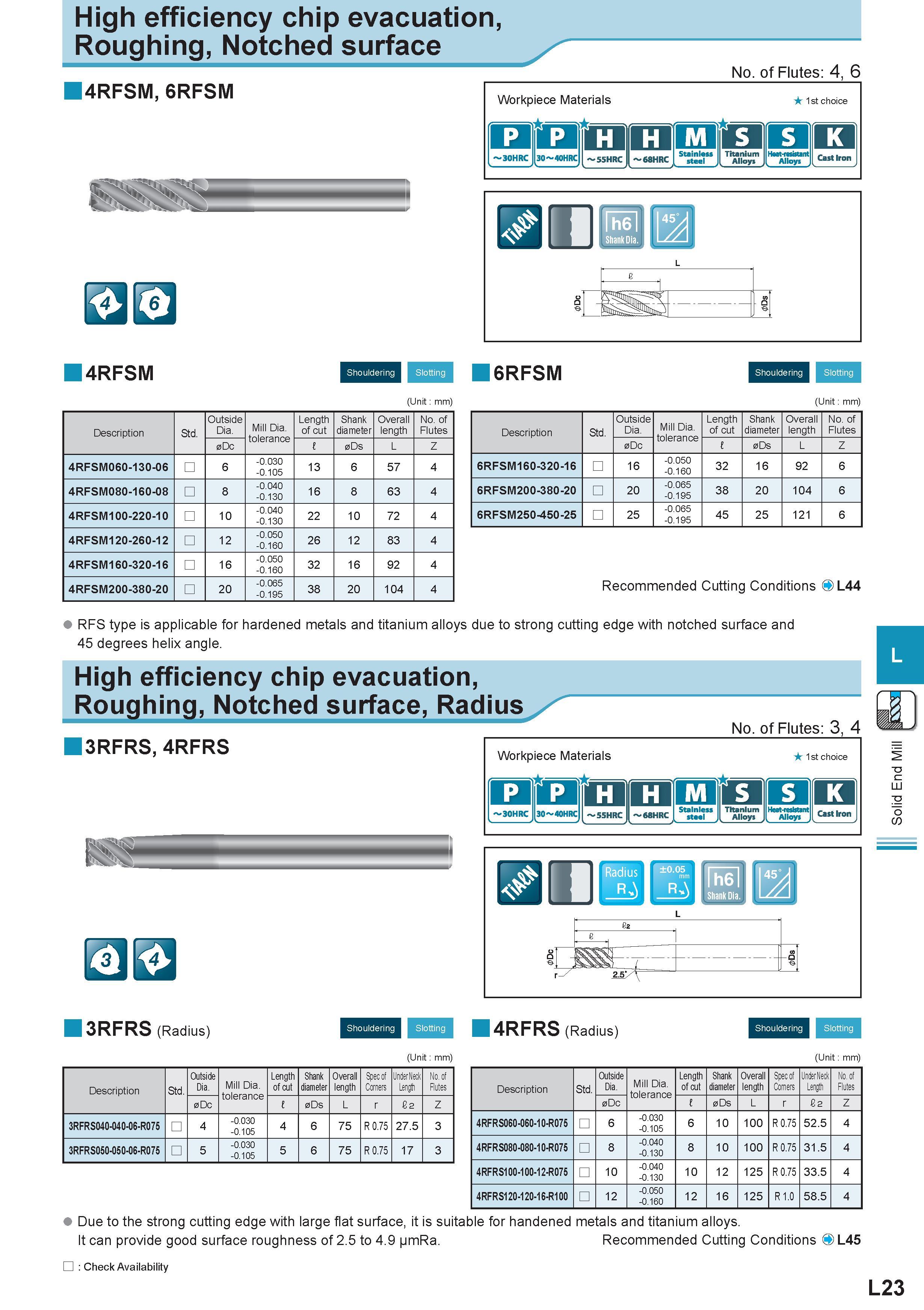

High efficiency chip evacuation, Roughing, Notched surface 4RFSM, 6RFSM No. of Flutes: 4, 6 Workpiece Materials 1st choice 30HRC 30 40HRC S5HRC 68HRC S tel Alloys 4RFSM 1 1 1 SIS - O Shouldering Slotting (Unit mm) 6RFSM Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes aDc 1 aDs L Z 4RFSM060-130-06 6 -0.030 -0.105 13 6 57 4 4RFSM080-160-08 8 -0.040 -0.130 16 8 63 4 4RFSM100-220-10 10 -0.040 -0.130 22 10 72 4 4RFSM120-260-12 12 -0.050 -0.160 26 12 83 4 4RFSM160-320-16 16 -0.050 -0.160 32 16 92 4 4RFSM200-380-20 20 -0.065 -0.195 38 20 104 4 Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 6RFSM160-320-16 16 -0.050 -0.160 32 16 92 6 6RFSM200-380-20 20 -0.065 -0.195 38 20 104 6 6RFSM250-450-25 25 -0.065 -0.195 45 25 121 6 Recommended Cutting Conditions OL44 RFS type is applicable for hardened metals and titanium alloys due to strong cutting edge with notched surface and 45 degrees helix angle. High efficiency chip evacuation, Roughing, Notched surface, Radius 3RFRS, 4RFRS No. of Flutes: 3, 4 Workpiece Materials 1st choice u nnna -.Muor Stainless Titanium 30 HRC 30 40HRC SSHRC 68HRC steal Alloys Alloys m 3RFRS (Radius) m l mr- to 2.5 Shouldering Slotting (Unit mm) 4RFRS (Radius) Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length Spec of Corners Under Neck LengUi No. of Flutes 0Dc 0Ds L 12 Z 3RFRS040-040-06-R075 4 -0.030 -0.105 4 6 75 R 0.75 27.5 3 3RFRS050-050-06-R075 5 -0.030 -0.105 5 6 75 R 0.75 17 3 Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length Spec of Corners Under Neck Length No. of Flutes 0Dc 0Ds L 12 Z 4RFRS060-060-10-R075 6 -0.030 -0.105 6 10 100 R 0.75 52.5 4 4RFRS080-080-10-R075 8 -0.040 -0.130 8 10 100 R 0.75 31.5 4 4RFRS100-100-12-R075 10 -0.040 -0.130 10 12 125 R 0.75 33.5 4 4RFRS120-120-16-R100 12 -0.050 -0.160 12 16 125 R 1.0 58.5 4 Due to the strong cutting edge with large flat surface, it is suitable for handened metals and titanium alloys. It can provide good surface roughness of 2.5 to 4.9 pmRa. Recommended Cutting Conditions O L45 Check Availability L23 Solid End Mill
