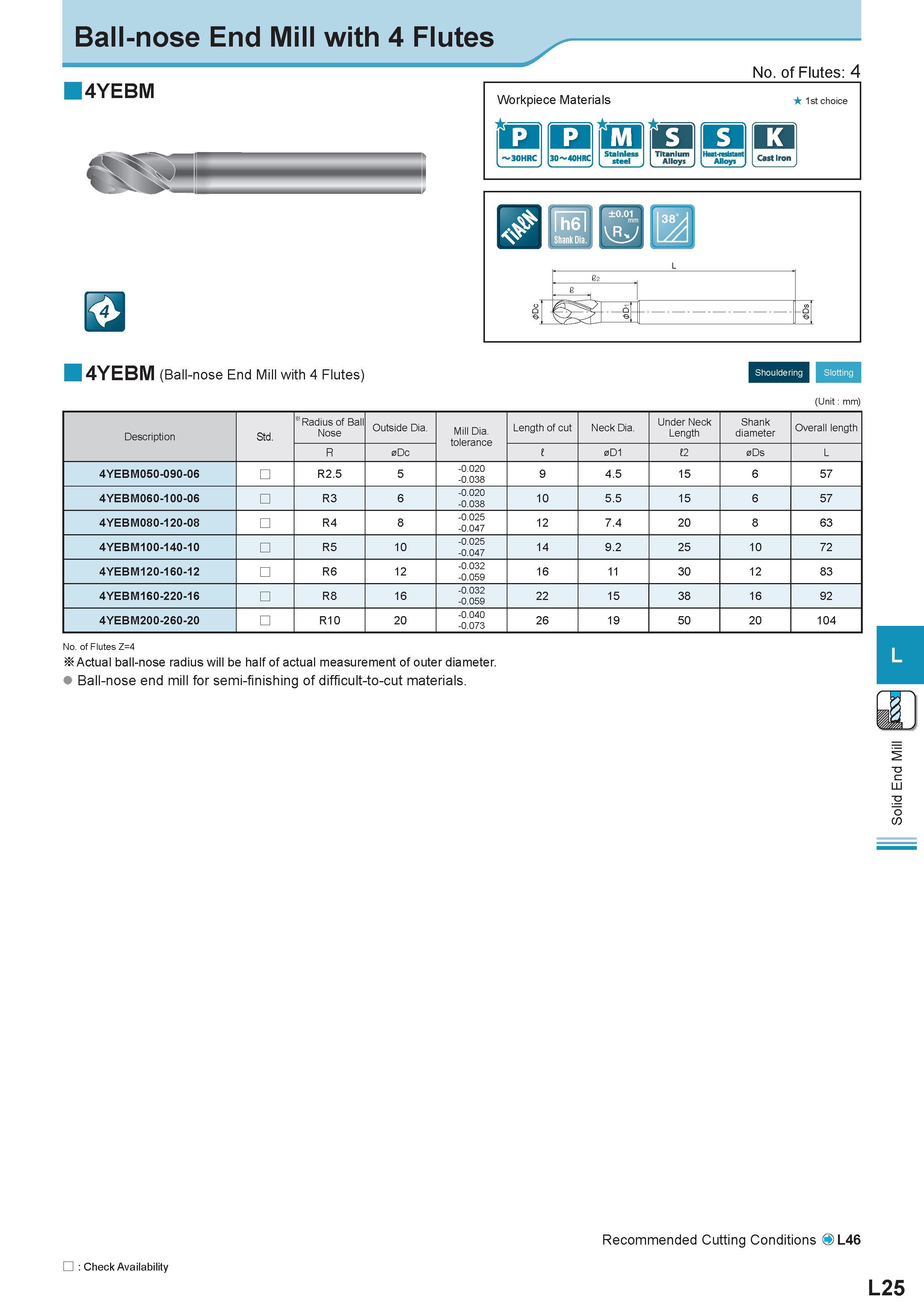

Ball-nose End Mill with 4 Flutes 4YEBM No. of Flutes: 4 Workpiece Materials 1st choice aioiizaiio Stainless Titanium steel Alloys Alloys m 4YEBM (Ball -nose End Mill with 4 Flutes) Shouldering Slotting (Unit mm) Description Std. Radius of Ball Nose Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank diameter Overall length R 0Dc 1 0D1 12 0Ds L 4YEBM050-090-06 R2.5 5 -0.020 -0.038 9 4.5 15 6 57 4YEBM060-100-06 R3 6 -0.020 -0.038 10 5.5 15 6 57 4YEBM080-120-08 R4 8 -0.025 -0.047 12 7.4 20 8 63 4YEBM100-140-10 R5 10 -0.025 -0.047 14 9.2 25 10 72 4YEBM120-160-12 R6 12 -0.032 -0.059 16 11 30 12 83 4YEBM160-220-16 R8 16 -0.032 -0.059 22 15 38 16 92 4YEBM200-260-20 R10 20 -0.040 -0.073 26 19 50 20 104 No. of Flutes Z=4 Actual ball-nose radius will be half of actual measurement of outer diameter. Ball-nose end mill for semi-finishing of difficult-to-cut materials. Check Availability Recommended Cutting Conditions OL46 L25 Solid End Mill
