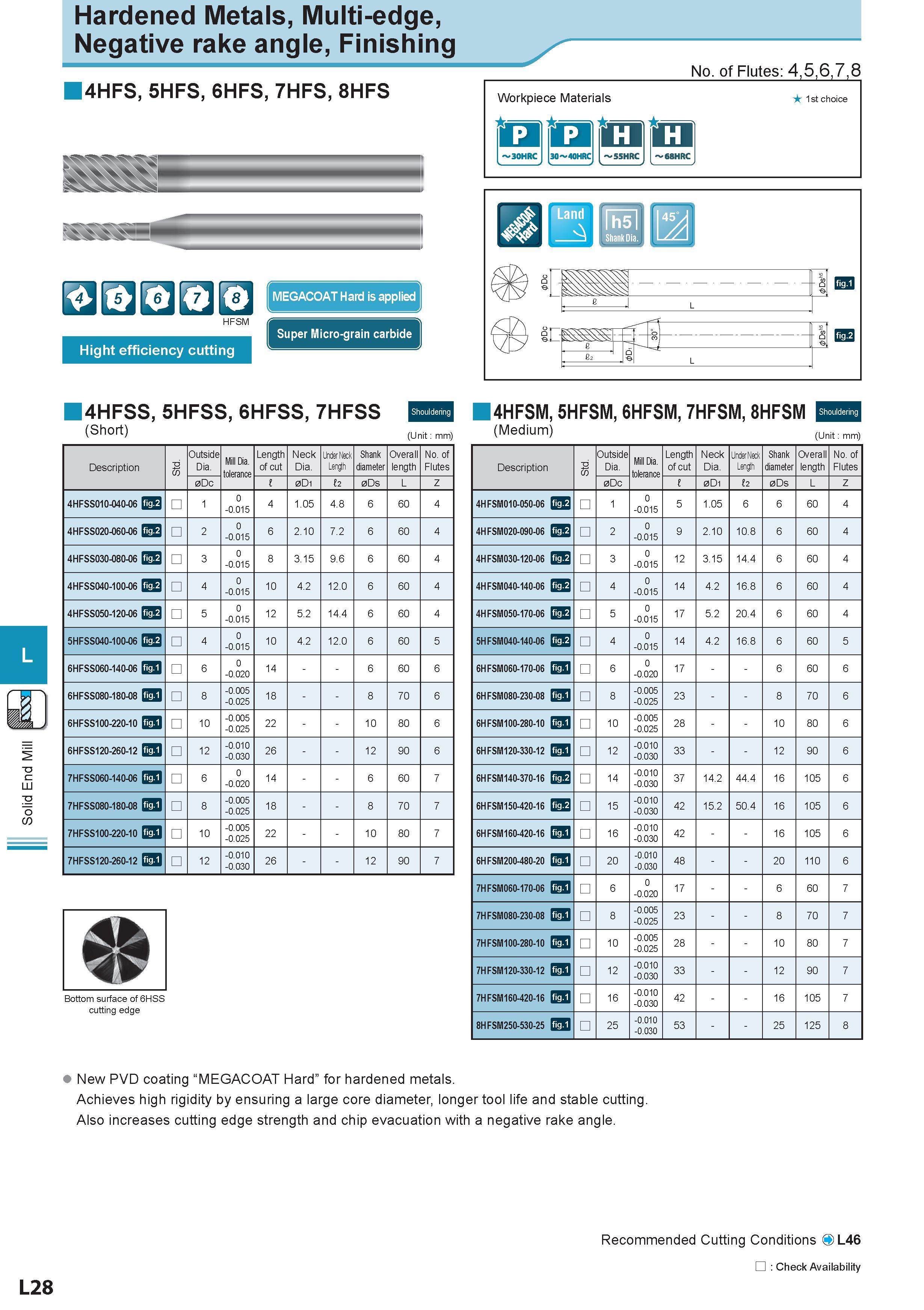

Solid End Mill Hardened Metals, Multi-edge, Negative rake angle, Finishing 4HFS, 5HFS, 6HFS, 7HFS, 8HFS Hight efficiency cutting MEGACOAT Hard is applied V _j Super Micro-grain carbide No. of Flutes: 4,5,6,7,8 Workpiece Materials iira lira turn 30HRC 30 4QHRC 55HRC 68HRC lani fhsl _I Shank Dia. a e-i 1st choice llllll - . 6 .1 L fig.1 fig.2 4HFSS, 5HFSS, 6HFSS, 7HFSS 4HFSM, 5HFSM, 6HFSM, 7HFSM, 8HFSM (Short) (Unit mm) (Medium) (Unit mm) Shouldering Description 00 Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank diameter Overall length No. of Flutes 0Dc 0D1 2 0Ds L Z 4HFSS010-040-06 fig.2 0 -0.015 4 1.05 4.8 6 60 4 4HFSS020-060-06 fig.2 2 0 -0.015 6 2.10 7.2 6 60 4 4HFSS030-080-06 fig.2 3 0 -0.015 8 3.15 9.6 6 60 4 4HFSS040-100-06 fig.2 4 0 -0.015 10 4.2 12.0 6 60 4 4HFSS050-120-06 fig.2 5 0 -0.015 12 5.2 14.4 6 60 4 5HFSS040-100-06 fig.2 4 0 -0.015 10 4.2 12.0 6 60 5 6HFSS060-140-06 fig.1 6 0 -0.020 14 6 60 6 6HFSS080-180-08 fiig-1 8 -0.005 -0.025 18 8 70 6 6HFSS100-220-10 fiig.1 10 55 02 22 10 80 6 6HFSS120-260-12 fiig.1 12 -0.010 -0.030 26 12 90 6 7HFSS060-140-06 fiig.1 6 0 -0.020 14 6 60 7 7HFSS080-180-08 fiig1 8 -0.005 -0.025 18 8 70 7 7HFSS100-220-10 fiig1 10 55 02 22 10 80 7 7HFSS120-260-12 fiig1 12 -0.010 -0.030 26 12 90 7 Bottom surface of 6HSS cutting edge Description "O 00 Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank diameter Overall length No. of Flutes 0Dc 0D1 2 0Ds L Z 4HFSM010-050-06 fiig.2 0 -0.015 5 1.05 6 6 60 4 4HFSM020-090-06 fiig.2 2 0 -0.015 9 2.10 10.8 6 60 4 4HFSM030-120-06 fiig.2 3 0 -0.015 12 3.15 14.4 6 60 4 4HFSM040-140-06 fiig.2 4 0 -0.015 14 4.2 16.8 6 60 4 4HFSM050-170-06 fiig.2 5 0 -0.015 17 5.2 20.4 6 60 4 5HFSM040-140-06 fiig.2 4 0 -0.015 14 4.2 16.8 6 60 5 6HFSM060-170-06 fiig.1 6 0 -0.020 17 6 60 6 6HFSM080-230-08 fiig.1 8 -0.005 -0.025 23 8 70 6 6HFSM100-280-10 fiig.1 10 -0.005 -0.025 28 10 80 6 6HFSM120-330-12 fiig.1 12 -0.010 -0.030 33 12 90 6 6HFSM140-370-16 fiig.2 14 -0.010 -0.030 37 14.2 44.4 16 105 6 6HFSM150-420-16 fiig.2 15 -0.010 -0.030 42 15.2 50.4 16 105 6 6HFSM160-420-16 fiig.1 16 -0.010 -0.030 42 16 105 6 6HFSM200-480-20 fiig.1 20 -0.010 -0.030 48 20 110 6 7HFSM060-170-06 fiig.1 6 0 -0.020 17 6 60 7 7HFSM080-230-08 fiig.1 8 -0.005 -0.025 23 8 70 7 7HFSM100-280-10 fiig.1 10 -0.005 -0.025 28 10 80 7 7HFSM120-330-12 fiig.1 12 -0.010 -0.030 33 12 90 7 7HFSM160-420-16 fiig.1 16 -0.010 -0.030 42 16 105 7 8HFSM250-530-25 fiig.1 25 -0.010 -0.030 53 25 125 8 New PVD coating MEGACOAT Hard for hardened metals. Achieves high rigidity by ensuring a large core diameter, longer tool life and stable cutting. Also increases cutting edge strength and chip evacuation with a negative rake angle. L28 Recommended Cutting Conditions OL46 Check Availability
