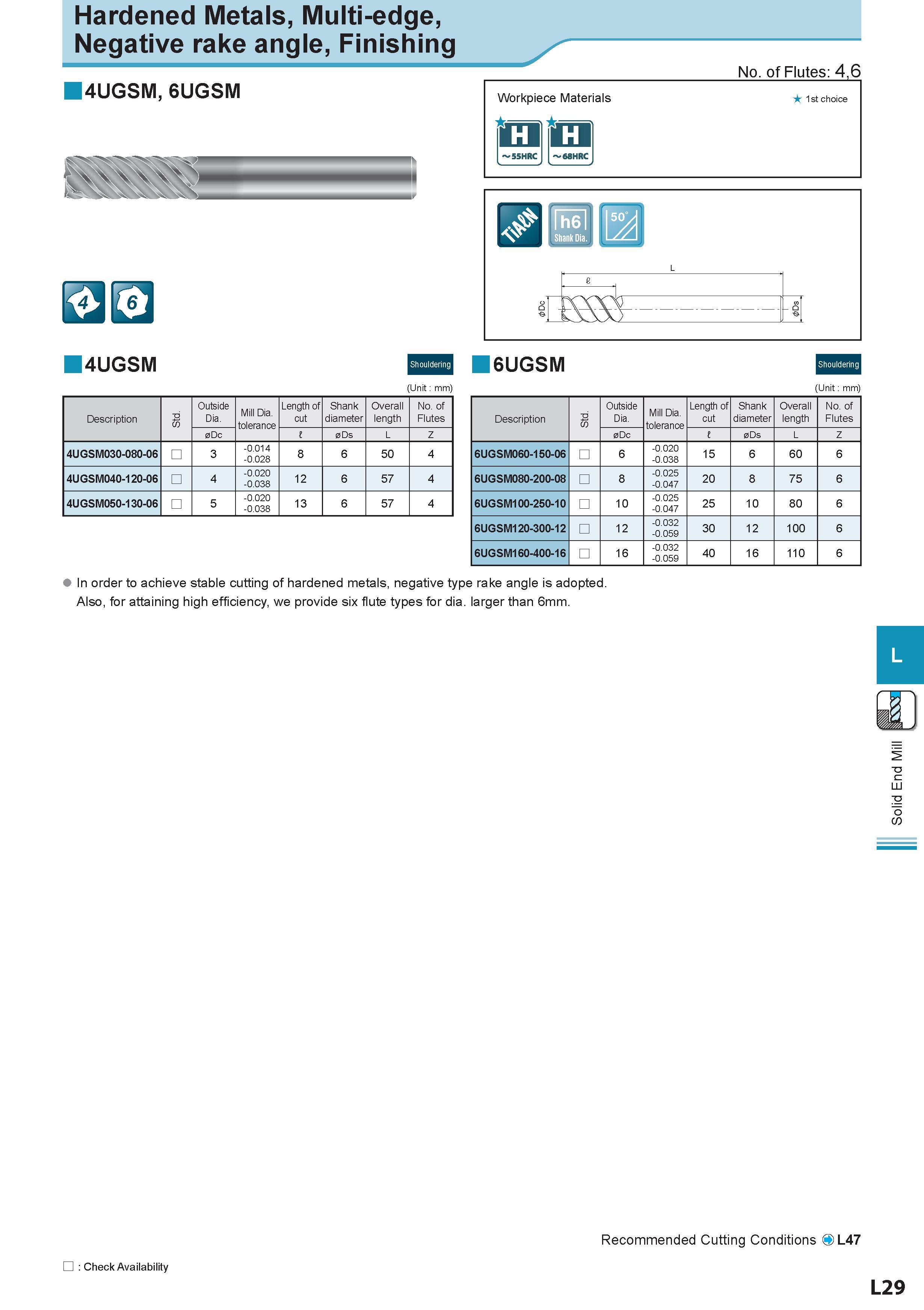

Hardened Metals, Multi-edge, Negative rake angle, Finishing 4UGSM, 6UGSM No. of Flutes: 4,6 Workpiece Materials ftnfem 1st choice 55HRC 68HRC 'X. V Oknnl> nio 24 mm 4UGSM 1- 6UGSM (Unit mm) (Unit mm) Shouldering Shouldering Description "O 00 Outside Dia. Mill Dia. Length of cut Shank diameter Overall length No. of Flutes 0Dc 0Ds L Z 4UGSM030-080-06 3 -0.014 -0.028 8 6 50 4 4UGSM040-120-06 4 -0.020 -0.038 12 6 57 4 4UGSM050-130-06 5 -0.020 -0.038 13 6 57 4 Description "O St Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 0Ds L Z 6UGSM060-150-06 6 -0.020 -0.038 15 6 60 6 6UGSM080-200-08 8 -0.025 -0.047 20 8 75 6 6UGSM100-250-10 10 -0.025 -0.047 25 10 80 6 6UGSM120-300-12 12 -0.032 -0.059 30 12 100 6 6UGSM160-400-16 16 -0.032 -0.059 40 16 110 6 In order to achieve stable cutting of hardened metals, negative type rake angle is adopted. Also, for attaining high efficiency, we provide six flute types for dia. larger than 6mm. Recommended Cutting Conditions OL47 Check Availability L29 Solid End Mill
