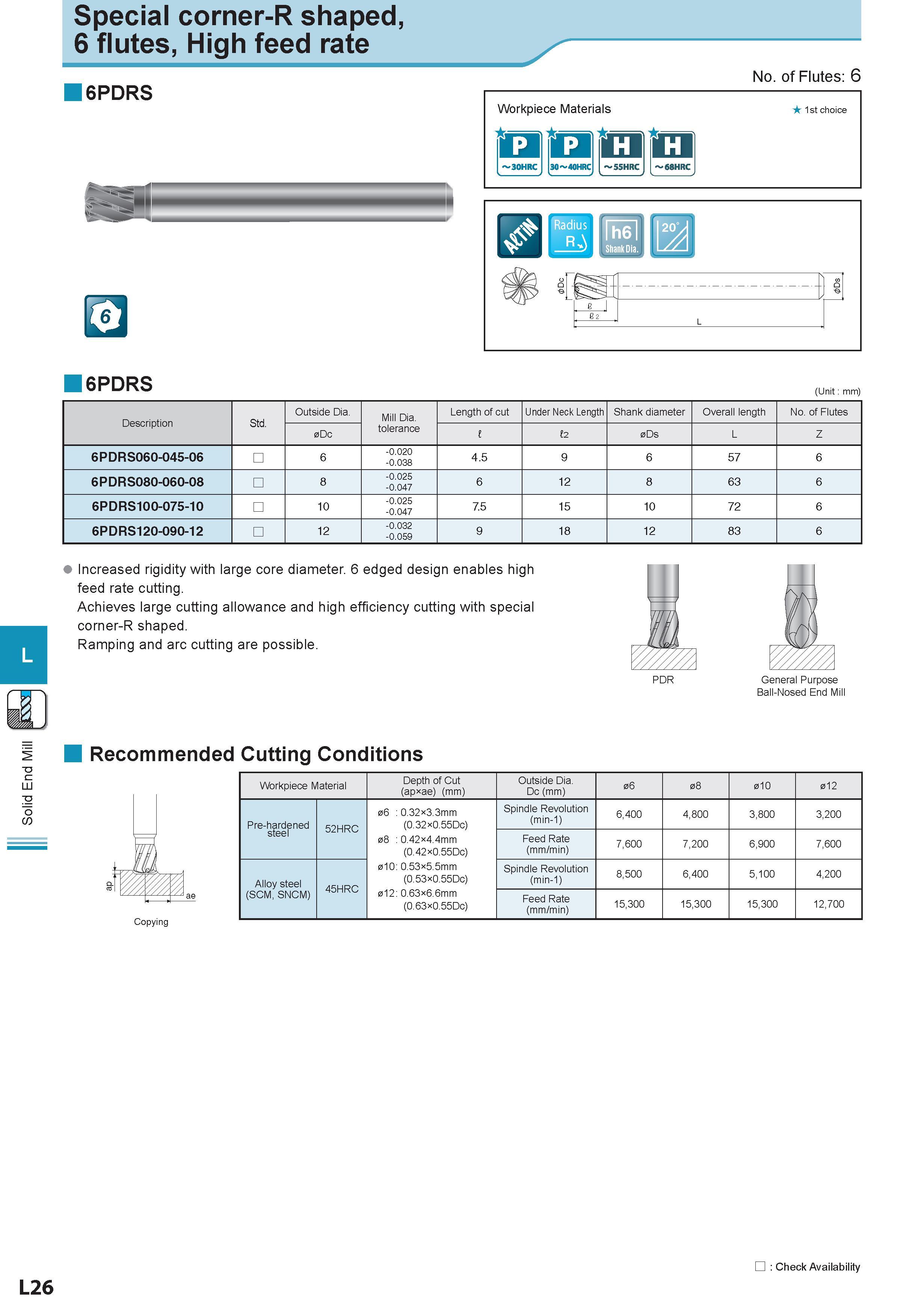

Solid End Mill Special corner-R shaped, 6 flutes, High feed rate 6PDRS Workpiece Materials ooom Ihel R ) shank Dia. 'A No. of Flutes: 6 1st choice J 62 L 6PDRS (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Under Neck Length Shank diameter Overall length No. of Flutes 0Dc 12 0Ds L Z 6PDRS060-045-06 6 -0.020 -0.038 4.5 9 6 57 6 6PDRS080-060-08 8 -0.025 -0.047 6 12 8 63 6 6PDRS100-075-10 10 -0.025 -0.047 7.5 15 10 72 6 6PDRS120-090-12 12 -0.032 -0.059 9 18 12 83 6 Increased rigidity with large core diameter. 6 edged design enables high feed rate cutting. Achieves large cutting allowance and high efficiency cutting with special corner-R shaped. Ramping and arc cutting are possible. PDR General Purpose Ball-Nosed End Mill Recommended Cutting Conditions Workpiece Material Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 06 08 010 012 Pre-hardened steel 52HRC 06 0.32 3.3mm (0.32 0.55Dc) 08 0.42 4.4mm (0.42 0.55Dc) 010: 0.53 5.5mm (0.53 0.55Dc) 012: 0.63 6.6mm (0.63 0.55Dc) Spindle Revolution (min-1) 6,400 4,800 3,800 3,200 Feed Rate (mm/min) 7,600 7,200 6,900 7,600 Alloy steel (SCM, SNCM) 45HRC Spindle Revolution (min-1) 8,500 6,400 5,100 4,200 Feed Rate (mm/min) 15,300 15,300 15,300 12,700 L26 Check Availability
