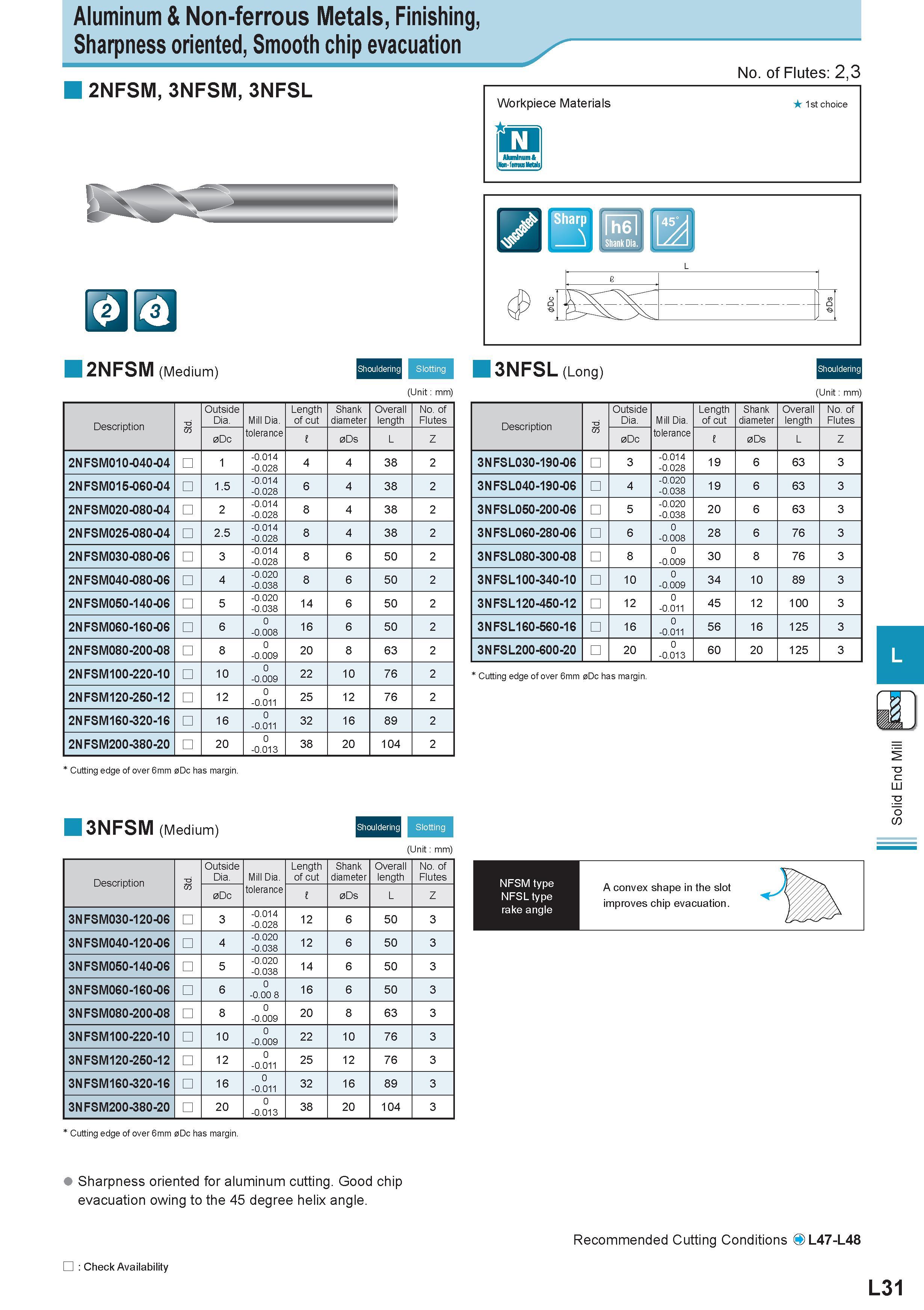

Aluminum & Non-ferrous Metals, Finishing, Sharpness oriented, Smooth chip evacuation 2NFSM, 3NFSM, 3NFSL 2NFSM (Medium) Shouldering Slotting (Unit mm) 3NFSL (Long) No. of Flutes: 2,3 Workpiece Materials 1st choice KZI (Unit mm) Shouldering Description T3 m Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 2NFSM010-040-04 1 -0.014 -0.028 4 4 38 2 2NFSM015-060-04 1.5 -0.014 -0.028 6 4 38 2 2NFSM020-080-04 2 -0.014 -0.028 8 4 38 2 2NFSM025-080-04 2.5 -0.014 -0.028 8 4 38 2 2NFSM030-080-06 3 -0.014 -0.028 8 6 50 2 2NFSM040-080-06 4 -0.020 -0.038 8 6 50 2 2NFSM050-140-06 5 -0.020 -0.038 14 6 50 2 2NFSM060-160-06 6 0 -0.008 16 6 50 2 2NFSM080-200-08 8 0 -0.009 20 8 63 2 2NFSM100-220-10 10 0 -0.009 22 10 76 2 2NFSM120-250-12 12 0 -0.011 25 12 76 2 2NFSM160-320-16 16 0 -0.011 32 16 89 2 2NFSM200-380-20 20 0 -0.013 38 20 104 2 Cutting edge of over 6mm 0Dc has margin. 3NFSM (Medium) (Unit mm) Shouldering Slotting Description d m Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 3NFSL030-190-06 3 -0.014 -0.028 19 6 63 3 3NFSL040-190-06 4 -0.020 -0.038 19 6 63 3 3NFSL050-200-06 5 -0.020 -0.038 20 6 63 3 3NFSL060-280-06 6 0 -0.008 28 6 76 3 3NFSL080-300-08 8 0 -0.009 30 8 76 3 3NFSL100-340-10 10 0 -0.009 34 10 89 3 3NFSL120-450-12 12 0 -0.011 45 12 100 3 3NFSL160-560-16 16 0 -0.011 56 16 125 3 3NFSL200-600-20 20 0 -0.013 60 20 125 3 Cutting edge of over 6mm 0Dc has margin. Description T3 m Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 3NFSM030-120-06 3 -0.014 -0.028 12 6 50 3 3NFSM040-120-06 4 -0.020 -0.038 12 6 50 3 3NFSM050-140-06 5 -0.020 -0.038 14 6 50 3 3NFSM060-160-06 6 0 -0.00 8 16 6 50 3 3NFSM080-200-08 8 0 -0.009 20 8 63 3 3NFSM100-220-10 10 0 -0.009 22 10 76 3 3NFSM120-250-12 12 0 -0.011 25 12 76 3 3NFSM160-320-16 16 0 -0.011 32 16 89 3 3NFSM200-380-20 20 0 -0.013 38 20 104 3 NFSM type NFSL type rake angle A convex shape in the slot improves chip evacuation. Cutting edge of over 6mm 0Dc has margin. Sharpness oriented for aluminum cutting. Good chip evacuation owing to the 45 degree helix angle. Check Availability Recommended Cutting Conditions OL47-L48 L31 Solid End Mill
