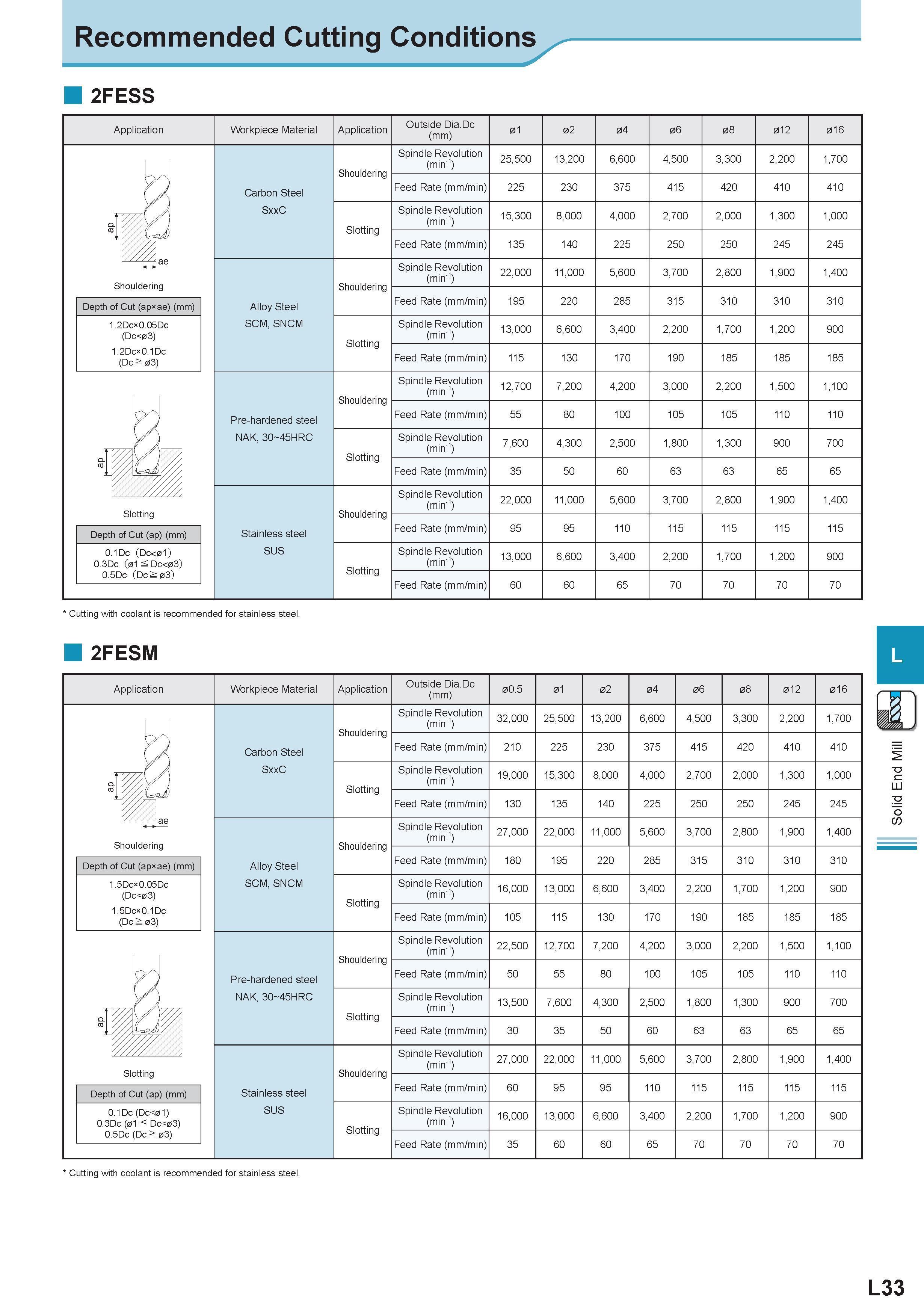

Recommended Cutting Conditions 2FESS Application Workpiece Material Application Outside Dia.Dc (mm) 01 02 04 06 08 012 016 Shouldering Depth of Cut (ap ae) (mm) 1.2Dc 0.05Dc (Dc<03) 1.2Dc 0.1Dc (Dc 03) Slotting Depth of Cut (ap) (mm) 0.1Dc (Dc<0l) 0.3Dc (01 Dc<03) 0.5Dc (Dc 03) Shouldering Spindle Revolution (min1) 25,500 13,200 6,600 4,500 3,300 Carbon Steel SxxC Feed Rate (mm/min) 225 230 375 415 420 Slotting Spindle Revolution (min1) 15,300 5,000 4,000 2,700 2,000 Feed Rate (mm/min) 135 140 225 250 250 Shouldering Spindle Revolution (min1) 22,000 11,000 5,600 3,700 2,800 Alloy Steel SCM, SNCM Feed Rate (mm/min) 195 220 285 315 310 Slotting Spindle Revolution (min1) 13,000 6,600 3,400 2,200 1,700 Feed Rate (mm/min) 115 130 170 190 185 Shouldering Spindle Revolution (min1) 12,700 7,200 4,200 3,000 2,200 Pre-hardened steel NAK, 30 45HRC Feed Rate (mm/min) 55 80 100 105 105 Slotting Spindle Revolution (min-1) 7,600 4,300 2,500 1,800 1,300 Feed Rate (mm/min) 35 50 60 63 63 Shouldering Spindle Revolution (min-1) 22,000 11,000 5,600 3,700 2,800 Stainless steel SUS Feed Rate (mm/min) 95 95 110 115 115 Slotting Spindle Revolution (min-1) 13,000 6,600 3,400 2,200 1,700 Feed Rate (mm/min) 60 60 65 70 70 2,200 410 1,300 245 1,900 310 1,200 185 1,500 110 900 65 1,900 115 1,200 70 1,700 410 1,000 245 1,400 310 900 185 1,100 110 700 65 1,400 115 900 70 Cutting with coolant is recommended for stainless steel. 2FESM Application Workpiece Material Application Outside Dia.Dc (mm) 00.5 01 02 04 06 08 012 016 Shouldering Depth of Cut (ap ae) (mm) 1.5Dc 0.05Dc (Dc<03) 1.5Dc 0.1Dc (Dc 03) Slotting Depth of Cut (ap) (mm) 0.1Dc (Dc<01) 0.3Dc (01 Dc<03) 0.5Dc (Dc 03) Shouldering Spindle Revolution (min-1) 32,000 25,500 13,200 6,600 4,500 3,300 2,200 Carbon Steel SxxC Feed Rate (mm/min) 210 225 230 375 415 420 410 Slotting Spindle Revolution (min-1) 19,000 15,300 8,000 4,000 2,700 2,000 1,300 Feed Rate (mm/min) 130 135 140 225 250 250 245 Shouldering Spindle Revolution (min-1) 27,000 22,000 11,000 5,600 3,700 2,800 1,900 Alloy Steel SCM, SNCM Feed Rate (mm/min) 180 195 220 285 315 310 310 Slotting Spindle Revolution (min-1) 16,000 13,000 6,600 3,400 2,200 1,700 1,200 Feed Rate (mm/min) 105 115 130 170 190 185 185 Shouldering Spindle Revolution (min-1) 22,500 12,700 7,200 4,200 3,000 2,200 1,500 Pre-hardened steel NAK, 30 45HRC Feed Rate (mm/min) 50 55 80 100 105 105 110 Slotting Spindle Revolution (min-1) 13,500 7,600 4,300 2,500 1,800 1,300 900 Feed Rate (mm/min) 30 35 50 60 63 63 65 Shouldering Spindle Revolution (min-1) 27,000 22,000 11,000 5,600 3,700 2,800 1,900 Stainless steel SUS Feed Rate (mm/min) 60 95 95 110 115 115 115 Slotting Spindle Revolution (min-1) 16,000 13,000 6,600 3,400 2,200 1,700 1,200 Feed Rate (mm/min) 35 60 60 65 70 70 70 1,700 410 1,000 245 1,400 310 900 185 1,100 110 700 65 1,400 115 900 70 Cutting with coolant is recommended for stainless steel. L33 Solid End Mill
