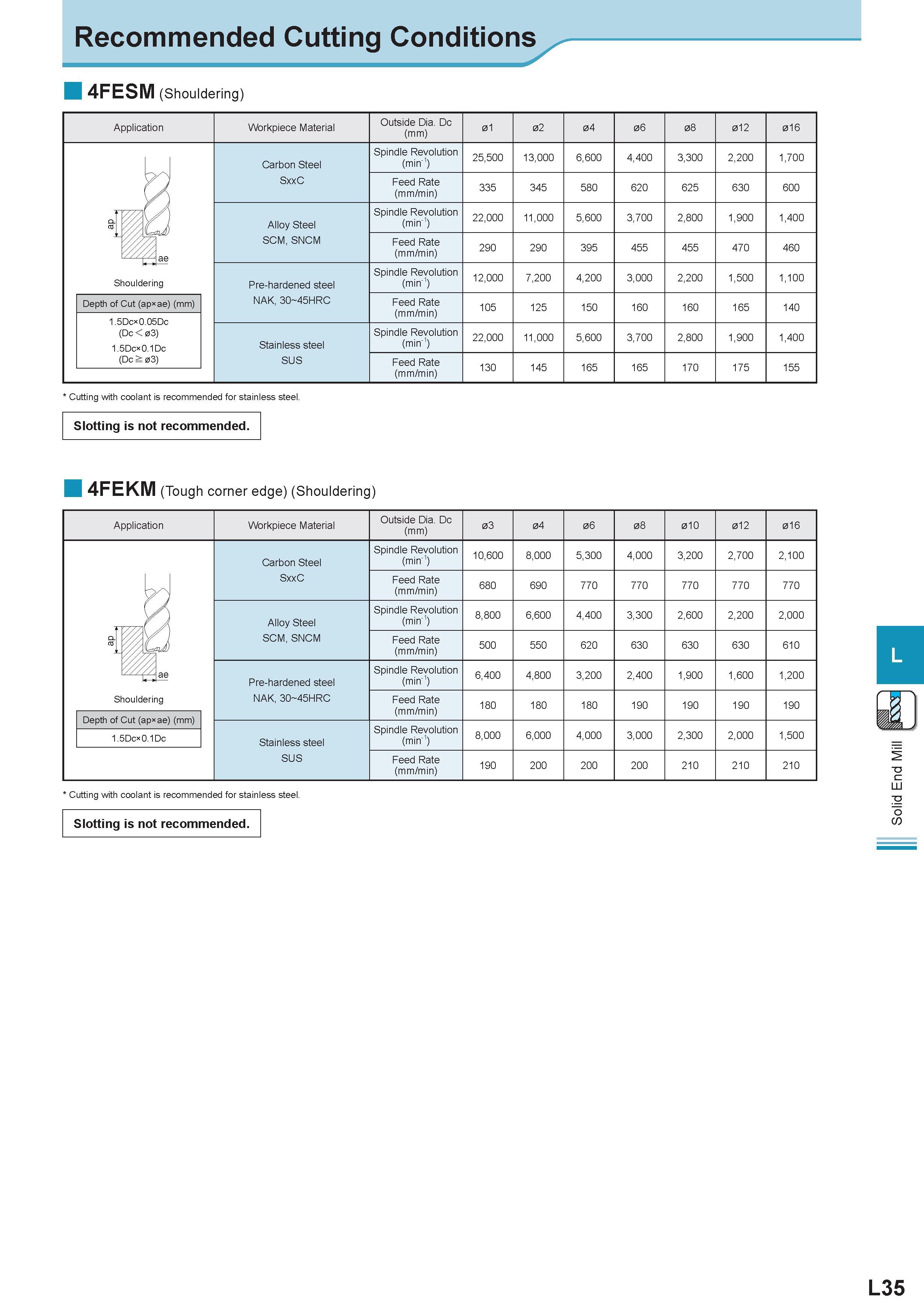

Recommended Cutting Conditions 4FESM (Shouldering) Application Workpiece Material Outside Dia. Dc (mm) 01 02 04 06 08 012 016 Carbon Steel SxxC Spindle Revolution (min-1) 25,500 13,000 6,600 4,400 3,300 2,200 1,700 Feed Rate (mm/min) 335 345 580 620 625 630 600 Alloy Steel SCM, SNCM Spindle Revolution (min-1) 22,000 11,000 5,600 3,700 2,800 1,900 1,400 4 ae Feed Rate (mm/min) 290 290 395 455 455 470 460 Shouldering Pre-hardened steel NAK, 30 45HRC Spindle Revolution (min-1) 12,000 7,200 4,200 3,000 2,200 1,500 1,100 Depth of Cut (ap ae) (mm) 1.5Dc 0.05Dc (Dc < 03) 1.5Dc 0.1Dc (Dc 03) Feed Rate (mm/min) 105 125 150 160 160 165 140 Stainless steel SUS Spindle Revolution (min-1) 22,000 11,000 5,600 3,700 2,800 1,900 1,400 Feed Rate (mm/min) 130 145 165 165 170 175 155 Cutting with coolant is recommended for stainless steel. Slotting is not recommended. 4FEKM (Tough corner edge) (Shouldering) Application Workpiece Material Outside Dia. Dc (mm) 03 04 06 08 010 012 016 w Carbon Steel SxxC Spindle Revolution (min-1) 10,600 8,000 5,300 4,000 3,200 2,700 2,100 Feed Rate (mm/min) 680 690 770 770 770 770 770 Alloy Steel SCM, SNCM Spindle Revolution (min-1) 8,800 6,600 4,400 3,300 2,600 2,200 2,000 - r i Feed Rate (mm/min) 500 550 620 630 630 630 610 ae Pre-hardened steel NAK, 30 45HRC Spindle Revolution (min-1) 6,400 4,800 3,200 2,400 1,900 1,600 1,200 Shouldering Depth of Cut (ap ae) (mm) 1.5Dc 0.1Dc Feed Rate (mm/min) 180 180 180 190 190 190 190 Stainless steel SUS Spindle Revolution (min-1) 8,000 6,000 4,000 3,000 2,300 2,000 1,500 Feed Rate (mm/min) 190 200 200 200 210 210 210 Cutting with coolant is recommended for stainless steel. Slotting is not recommended. L35 Solid End Mill
