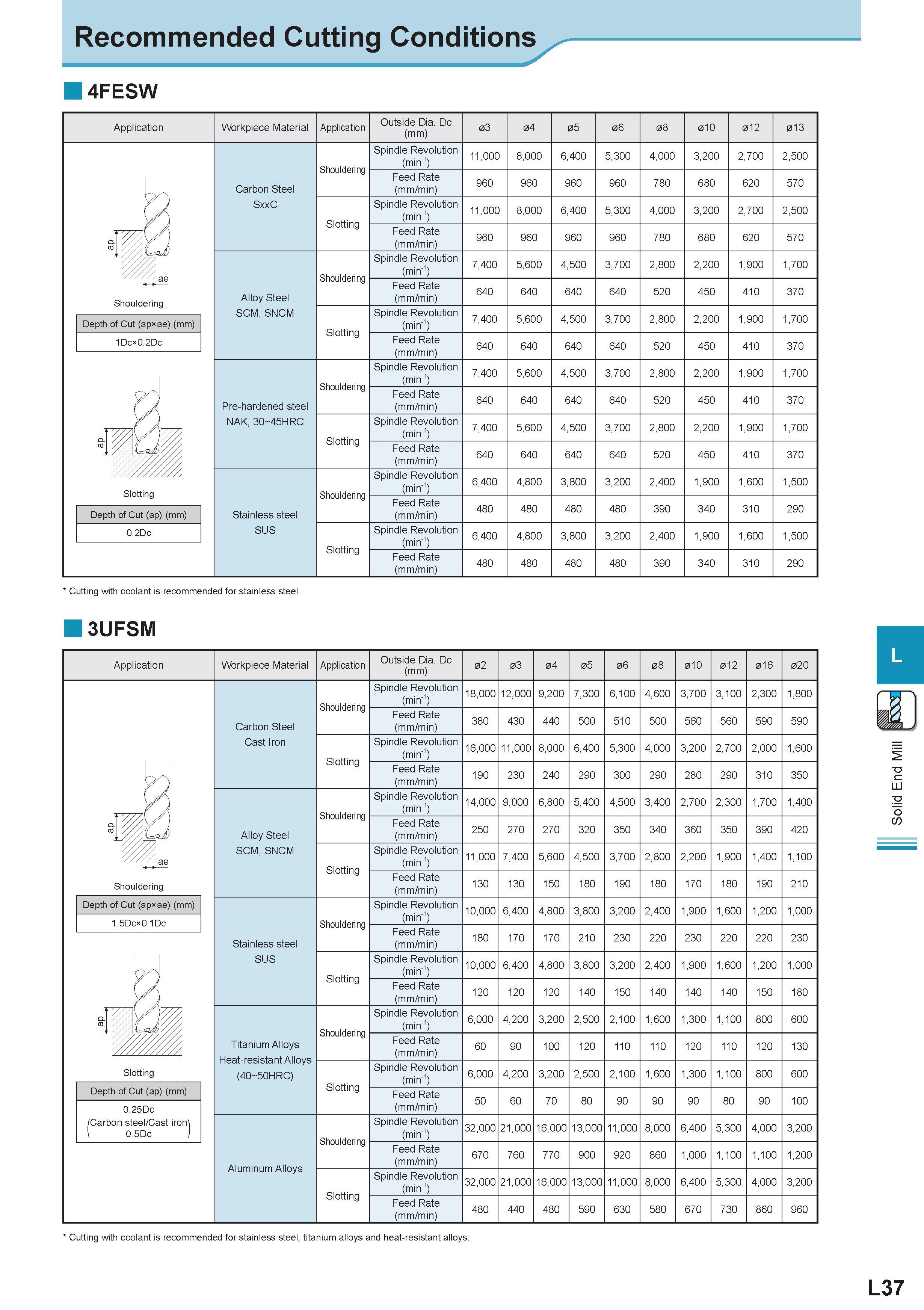

Recommended Cutting Conditions 4FESW Application Shouldering Depth of Cut (ap ae) (mm) 1Dc 0.2Dc Slotting Depth of Cut (ap) (mm) 0.2Dc Workpiece Material Carbon Steel SxxC Alloy Steel SCM, SNCM Pre-hardened steel NAK, 30 45HRC Stainless steel SUS Application Shouldering Slotting Shouldering Slotting Shouldering Slotting Shouldering Slotting Outside Dia. Dc (mm) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) 03 11,000 960 11,000 960 7,400 640 7,400 640 7,400 640 7,400 640 6,400 480 6,400 480 04 8,000 960 8,000 960 5,600 640 5,600 640 5,600 640 5,600 640 4,800 480 4,800 480 05 6,400 960 6,400 960 4,500 640 4,500 640 4,500 640 4,500 640 3,800 480 3,800 480 06 5,300 960 5,300 960 3,700 640 3,700 640 3,700 640 3,700 640 3,200 480 3,200 480 08 4,000 780 4,000 780 2,800 520 2,800 520 2,800 520 2,800 520 2,400 390 2,400 390 010 3,200 680 3,200 680 2,200 450 2,200 450 2,200 450 2,200 450 1,900 340 1,900 340 012 2,700 620 2,700 620 1,900 410 1,900 410 1,900 410 1,900 410 1,600 310 1,600 310 013 2,500 570 2,500 570 1,700 370 1,700 370 1,700 370 1,700 370 1,500 290 1,500 290 Cutting with coolant is recommended for stainless steel. 3UFSM Application Workpiece Material Application Outside Dia. Dc (mm) 02 03 04 05 06 08 010 012 016 020 w Carbon Steel Cast Iron Shouldering Spindle Revolution (min-1) 18,000 12,000 9,200 7,300 6,100 4,600 3,700 3,100 2,300 1,800 Feed Rate (mm/min) 380 430 440 500 510 500 560 560 590 590 Slotting Spindle Revolution (min-1) 16,000 11,000 8,000 6,400 5,300 4,000 3,200 2,700 2,000 1,600 Feed Rate (mm/min) 190 230 240 290 300 290 280 290 310 350 c rt Alloy Steel SCM, SNCM Shouldering Spindle Revolution (min-1) 14,000 9,000 6,800 5,400 4,500 3,400 2,700 2,300 1,700 1,400 ae Feed Rate (mm/min) 250 270 270 320 350 340 360 350 390 420 Slotting Spindle Revolution (min-1) 11,000 7,400 5,600 4,500 3,700 2,800 2,200 1,900 1,400 1,100 Shouldering Feed Rate (mm/min) 130 130 150 180 190 180 170 180 190 210 Depth of Cut (ap ae) (mm) Stainless steel SUS Shouldering Spindle Revolution (min-1) 10,000 6,400 4,800 3,800 3,200 2,400 1,900 1,600 1,200 1,000 1.5Dc 0.1Dc Feed Rate (mm/min) 180 170 170 210 230 220 230 220 220 230 M Slotting Spindle Revolution (min-1) 10,000 6,400 4,800 3,800 3,200 2,400 1,900 1,600 1,200 1,000 Feed Rate (mm/min) 120 120 120 140 150 140 140 140 150 180 -1 Titanium Alloys Heat-resistant Alloys (40 50HRC) Shouldering Spindle Revolution (min-1) 6,000 4,200 3,200 2,500 2,100 1,600 1,300 1,100 800 600 Feed Rate (mm/min) 60 90 100 120 110 110 120 110 120 130 Slotting Slotting Spindle Revolution (min-1) 6,000 4,200 3,200 2,500 2,100 1,600 1,300 1,100 800 600 Depth of Cut (ap) (mm) 0.25Dc /Carbon steel/Cast iron\ ( 0.5Dc Feed Rate (mm/min) 50 60 70 80 90 90 90 80 90 100 Aluminum Alloys Shouldering Spindle Revolution (min-1) 32,000 21,000 16,000 13,000 11,000 8,000 6,400 5,300 4,000 3,200 Feed Rate (mm/min) 670 760 770 900 920 860 1,000 1,100 1,100 1,200 Slotting Spindle Revolution (min-1) 32,000 21,000 16,000 13,000 11,000 8,000 6,400 5,300 4,000 3,200 Feed Rate (mm/min) 480 440 480 590 630 580 670 730 860 960 Cutting with coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. L37 Solid End Mill
