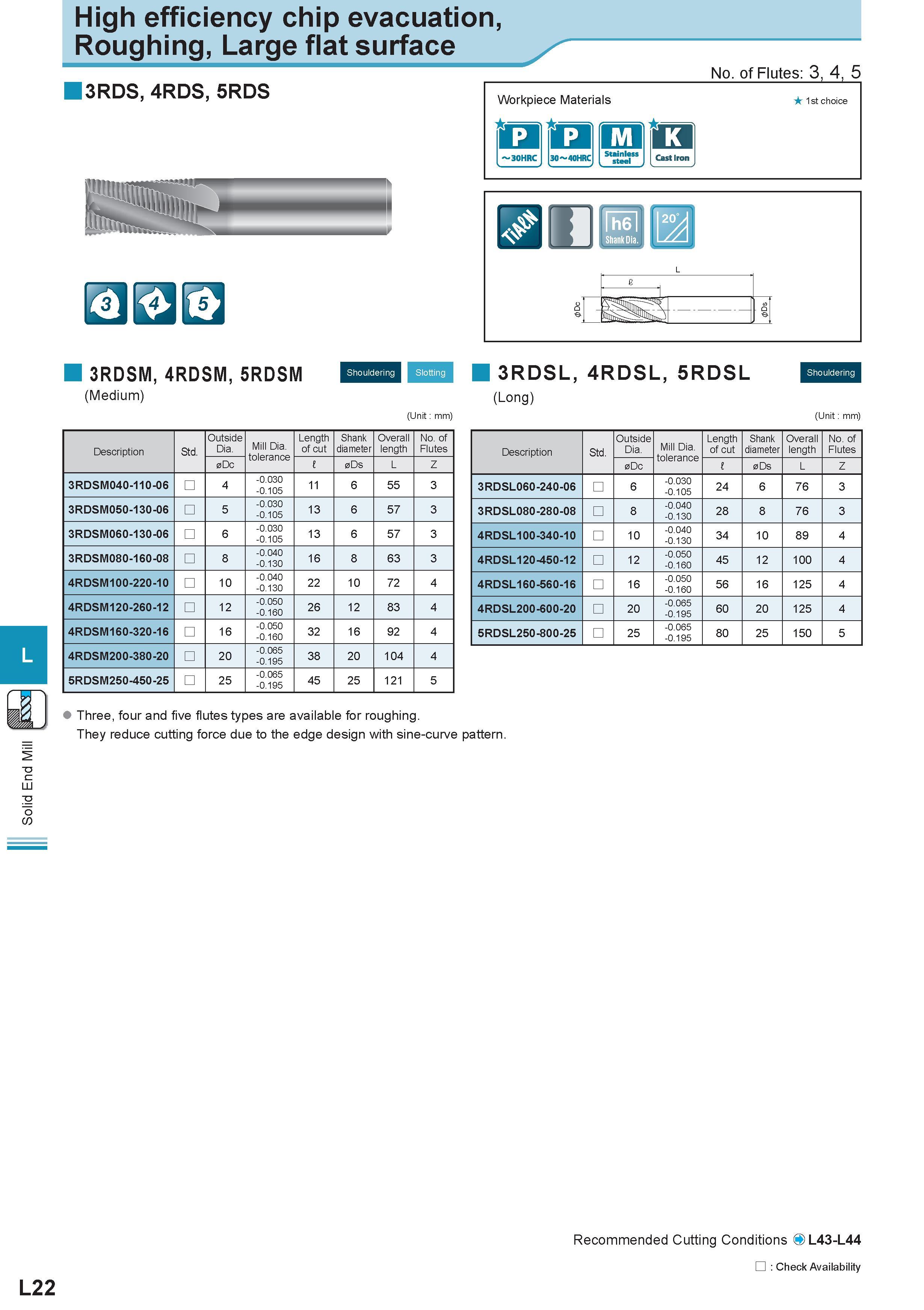

Solid End Mill High efficiency chip evacuation, Roughing, Large flat surface 3RDS, 4RDS, 5RDS 3RDSM,4RDSM, 5RDSM (Medium) Shouldering Slotting (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes aDc 1 aDs L Z 3RDSM040-110-06 4 -0.030 -0.105 11 6 55 3 3RDSM050-130-06 5 -0.030 -0.105 13 6 57 3 3RDSM060-130-06 6 -0.030 -0.105 13 6 57 3 3RDSM080-160-08 8 -0.040 -0.130 16 8 63 3 4RDSM100-220-10 10 -0.040 -0.130 22 10 72 4 4RDSM120-260-12 12 -0.050 -0.160 26 12 83 4 4RDSM160-320-16 16 -0.050 -0.160 32 16 92 4 4RDSM200-380-20 20 -0.065 -0.195 38 20 104 4 5RDSM250-450-25 25 -0.065 -0.195 45 25 121 5 Three, four and five flutes types are available for roughing. They reduce cutting force due to the edge design with sine-curve No. of Flutes: 3, 4, 5 Workpiece Materials 1st choice ovano 3RDSL, 4RDSL, 5RDSL (Long) (Unit mm) Description Std. Outside Dia. Mill Dia. tolerance Length of cut Shank diameter Overall length No. of Flutes 0Dc 1 0Ds L Z 3RDSL060-240-06 6 -0.030 -0.105 24 6 76 3 3RDSL080-280-08 8 -0.040 -0.130 28 8 76 3 4RDSL100-340-10 10 -0.040 -0.130 34 10 89 4 4RDSL120-450-12 12 -0.050 -0.160 45 12 100 4 4RDSL160-560-16 16 -0.050 -0.160 56 16 125 4 4RDSL200-600-20 20 -0.065 -0.195 60 20 125 4 5RDSL250-800-25 25 -0.065 -0.195 80 25 150 5 pattern. L22 Recommended Cutting Conditions OL43-L44 Check Availability
